Laversab 6200 Pitot Static Tester (Non-RVSM)

The Laversab 6200 is a pitot-static tester targeted for helicopters and Non-RVSM aircraft. It is approved for most helicopters and is used to perform leak checks and accuracy checks on the pitot-static systems.

Accuracy check is performed on typical flight instrumentation – altimeters, airspeed indicators and VSI’s – and can be done at low airspeeds. The Model 6200 includes a remote unit with a large keypad and display, a removable 8-hour battery (optional), wide operating temperature (optional), and “profiles” to accelerate testing. The unit can be controlled by an iPad or other tablets.

Top Features

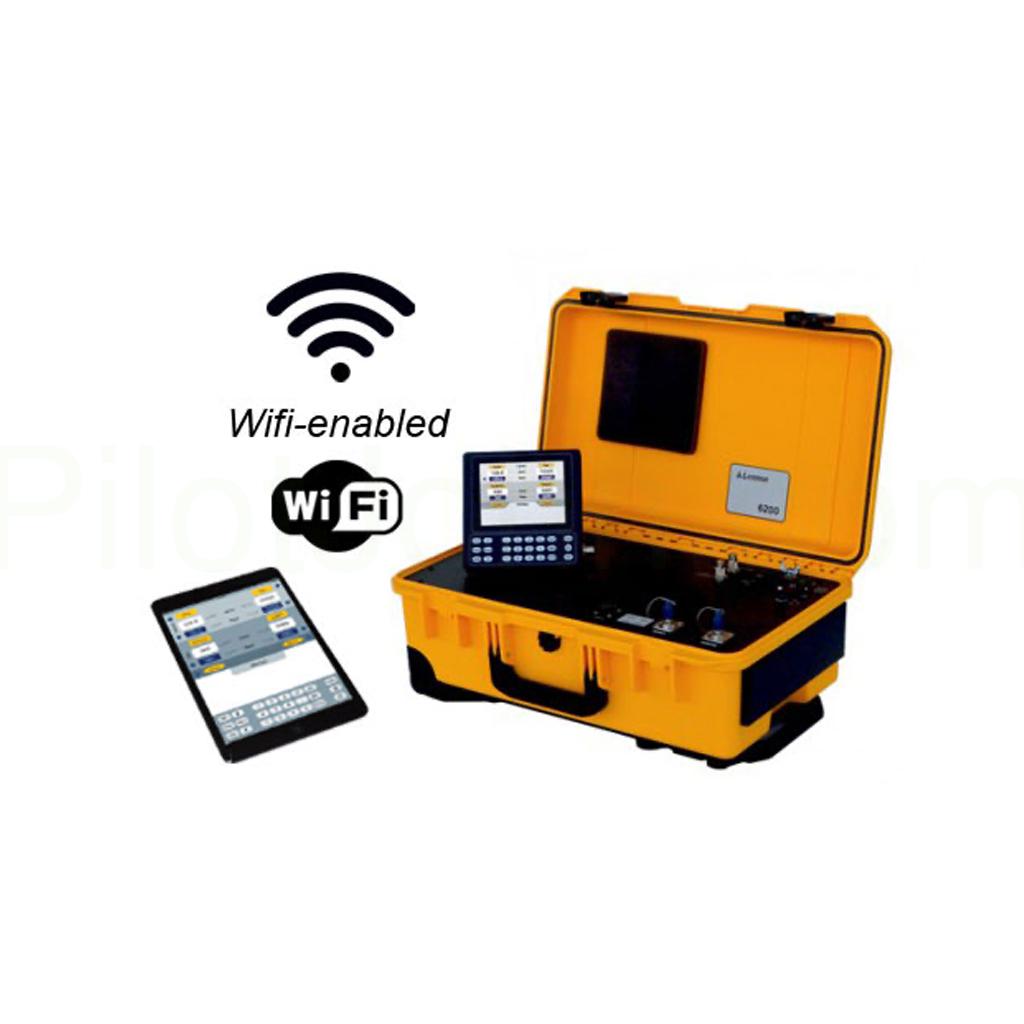

• WiFi-enabled
• Automated Operation - Simply enter the target set-points for altitude and airspeed and the unit automatically achieves the targets, ramping at the programmed rates. Control at the set-point is stable within +/- 1 foot and +/- 0.1 knot.
• Calibration period - 1 Year
• Programmable Limits - User-programmable limits for altitude, airspeed, Mach, and VSI provide protection to the aircraft.
• Negative-airspeed protection - An internal differential-pressure relief valve provides protection against negative airspeed.
• Jog and Hold Features - Set-points can be “jogged” up or down in small increments. Ramping to a set-point can be put on “hold” and controlled at the current measured value.
• Ground Feature - Brings Pitot and Static outputs to ambient “ground” pressure after completing a test.
• Profiles Feature - A profile of set-points can be downloaded from a PC, allowing the user to step through the set-points using a single key. Each profile can have up to 50 set-points and 20 profiles can be stored in the unit.
• Leak Checks - Pitot and Static leak-checks can be performed either independently or simultaneously. Three leak-timers can be programmed to perform timed leaks between 1 to 20 minutes. The display of “instant” leak rates provides immediate feedback to the user.
• Pressure & Vacuum Source - Built-in high-capacity dual vacuum pumps and pressure pumps provide the pressure and vacuum source for the unit. The pressure system includes a filter and membrane dryer to provide clean dry air for the entire system.
• Remote Unit - The Remote unit is the operator interface for the tester. It is small and light enough to be used in the cockpit. The tester can be turned On and Off from the Remote. All valid parameters, including altitude, climb, and airspeed, are clearly displayed simultaneously on a single screen on the remote.
• Manual Vent - The tester includes precision metering valves to enable manual venting of the aircraft’s pitot-static system, in the event of power-loss.

When is this unit used?

• Leak-checks and accuracy-checks on all non-RVSM aircraft, helicopters or UAVs.
• Leak-checks and limited accuracy-checks on RVSM aircraft
• Ideal for line maintenance by commercial airlines

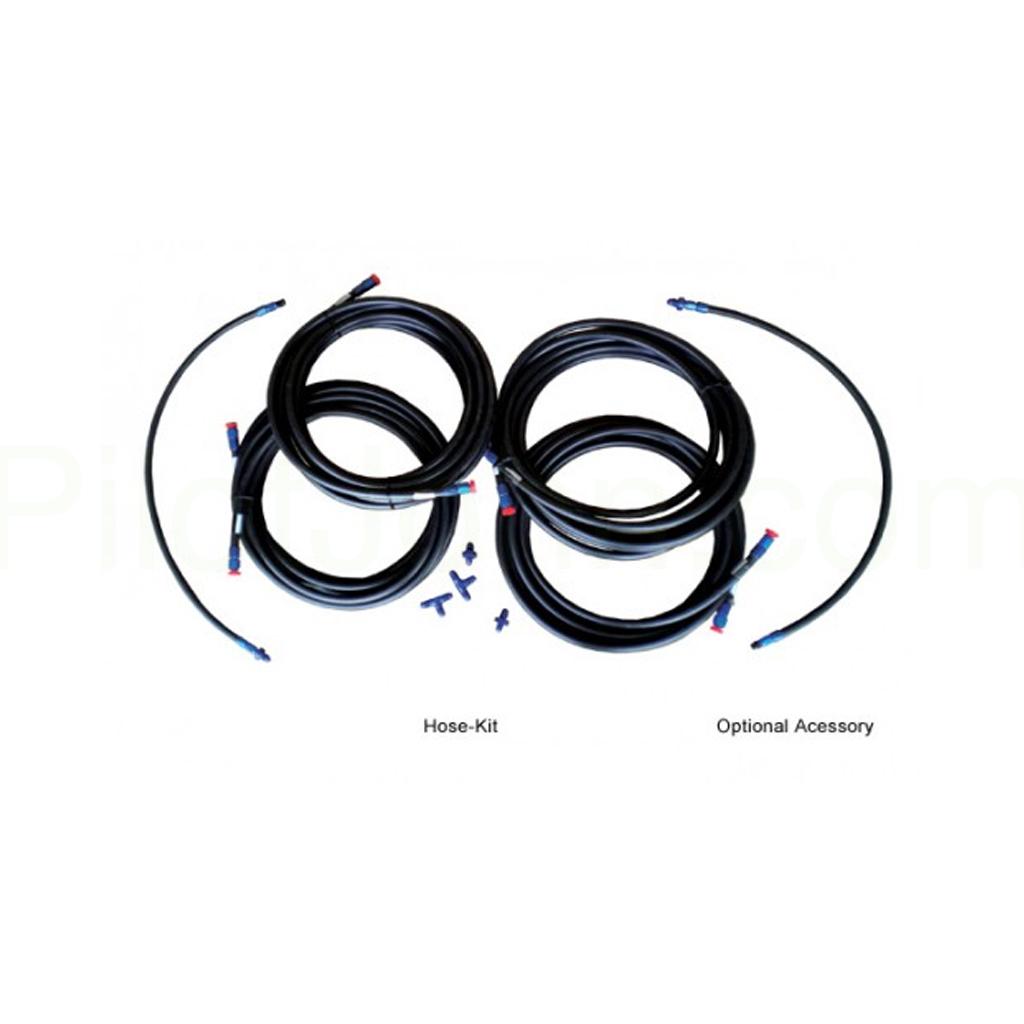

Air Data Accessories Kits or Pitot/Static Adapters

View our full line of air data accessories kits or pitot/static adapters by Nav-Aids. Bundle with your new aircraft air-data pitot static tester.

Static Output - Pressure Function

• Range: 0.1 to 32 inHg
• Resolution: 0.001 inHg
• Accuracy: +/- 0.005 inHg
• Units: inHg, mbar, psi, mmHG, kpa

Static Output - Pressure Rate

• Range: 0.1 to 30 inHg
• Resolution: 0.001 inHg
• Accuracy: +/- 1% of rate
• Units: pressure-units/min
