Malabar 8309 – AOG Aircraft Servicing Trailer – For Axle Jacks & Nitrogen Bottles

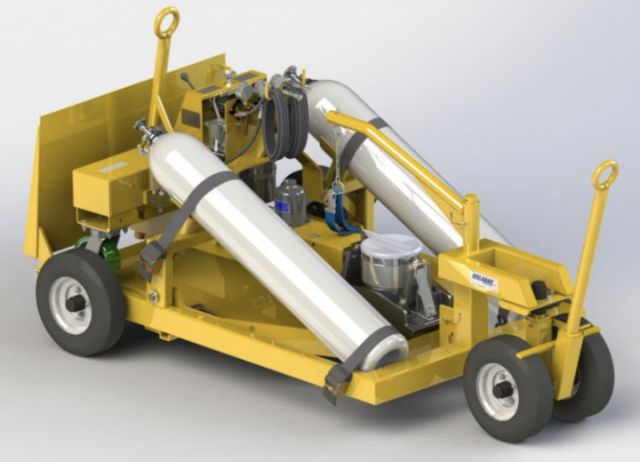

The Malabar Model 8309 AOG Trailer is a self-contained landing gear service trailer engineered to cut aircraft service time to a minimum. This compact unit can be safely towed at speeds up to 20 mph (32 km/h) for faster turnaround times.

This low-profile, low-center-of-gravity trailer includes a ramp and storage space for loading, unloading, and stowing Malabar axle jacks with up to a 95-ton capacity.

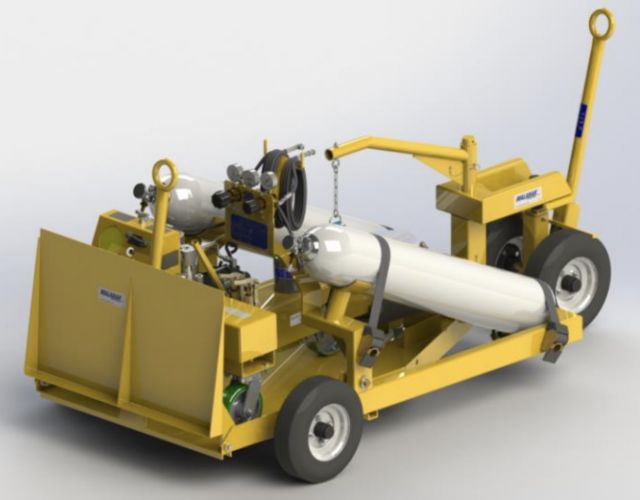

The trailer also features a swing arm boom that permits the single-operator loading and unloading of nitrogen bottles. The trailer securely holds the bottles and provides mounting for the hoses required for servicing the aircraft.

The AOG Trailer includes a high-pressure regulator for servicing aircraft struts and accumulator systems, as well as a low-pressure regulator for servicing aircraft tires and providing the pneumatic pressure necessary to operate aircraft axle jacks. Nitrogen service is provided through delivery hoses and the optional gas bottle valve fittings.

The trailer does not come with nitrogen bottle valve fittings. You can purchase valve fittings as options or specify your gas cylinder connection fittings at the time of order to ensure that the correct fittings are supplied.

Standard Features

• Rugged, tubular steel frame
• Bottle and axle jack restraint straps
• Two pressure regulators with relief valves and gauges
• High-pressure nitrogen hose with safety chuck to prevent filling low-pressure tires from the high-pressure system
• Low-pressure nitrogen hose with Schrader air chuck
• Towbar with 3" ID lunette ring and parking brake
• Skydrol-resistant paint (Safety Yellow)
• One-year standard warranty

Specifications

• Unit Weight (Less Nitrogen Bottles): 700 lbs. (318 kg)
• Unit Weight (with Optional Nitrogen Bottles): 840 lbs. (382 kg)
• Ground Clearance: 6" (152 mm)
• N2 High-Pressure Hose Length: 24 ft. (7.32 m)
• N2 Low-Pressure Hose Length: 12 ft. (3.66 m)
• N2 High Operating Pressure: 0 to 4,000 psig (281 kg/sq cm)
• N2 Low Operating Pressure: 0 to 250 psig (18 kg/sq cm)
• Overall Length with Towbar Up (Parking Brake On): 105" (2,667 mm)
• Overall Length with Towbar Down (Parking Brake Off): 135" (3,429 mm)
• Overall Width: 57" (1,448 mm)
• Overall Height with Towbar Up: 43" (1,092 mm)
• Overall Height with Towbar Down: 48" (1,219 mm)
• Nitrogen Bottle Capacity: 2 Bottles
• Maximum Nitrogen Bottle Length (Including Bottle Valve): 63" (1,600 mm)
• Maximum Nitrogen Bottle Diameter: 9" (235 mm)

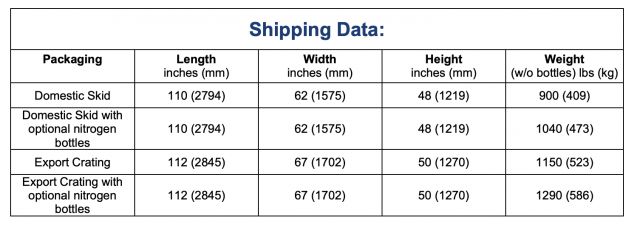

Available Options – Add Ons

• 474-006: 3,600 psig Nitrogen Bottles (furnished empty) (order 2)
• 893255: CGA-680 Bottle Valve Fitting (order 2)
• 893249: BS-341-3 Bottle Valve Fitting (order 2)
• 893258: DIN-477-10 Bottle Valve Fitting (order 2)
• 893254: CGA-580 Bottle Valve Fitting (order 2)
• SPC: Special Paint Color
