PF53361-71P - Malabar 250 – 2-Gallon Turbine Oil Dispenser

Malabar 250 – 2-Gallon Turbine Oil Dispenser

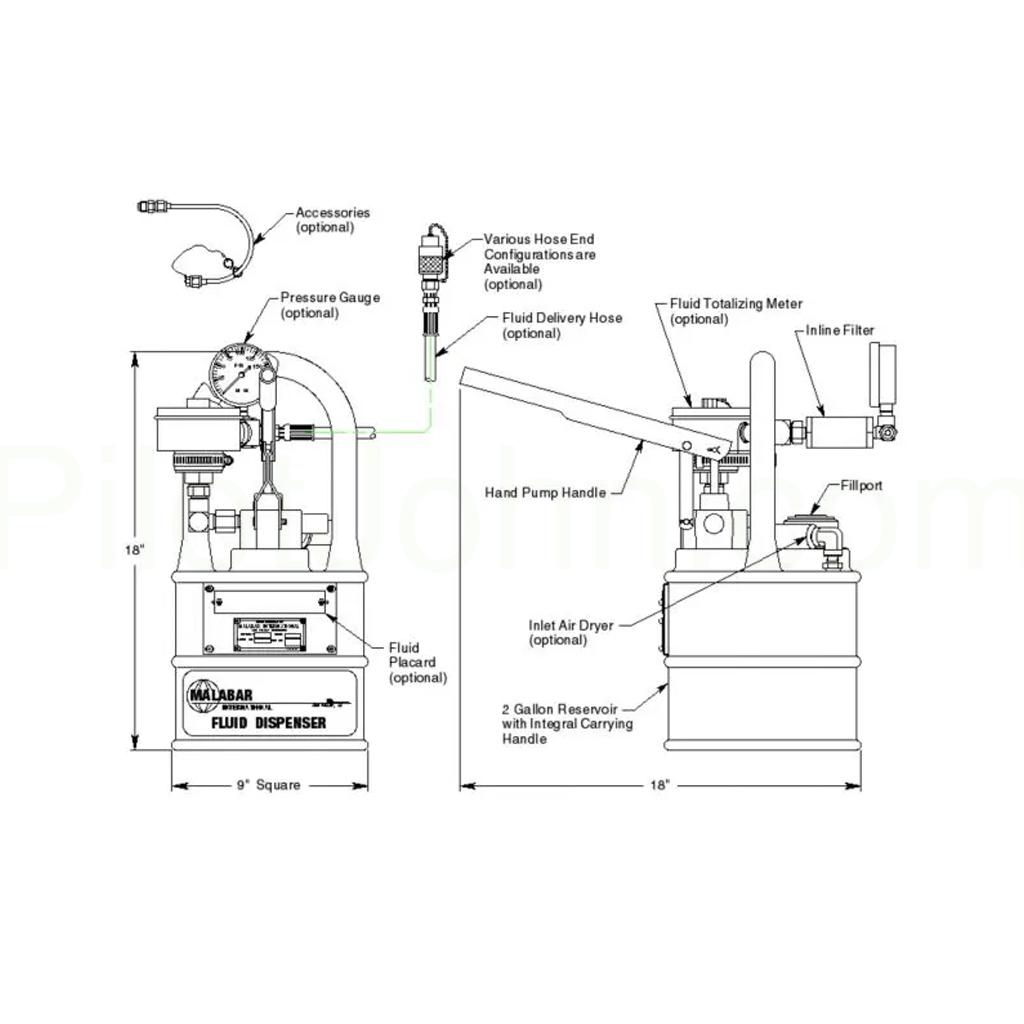

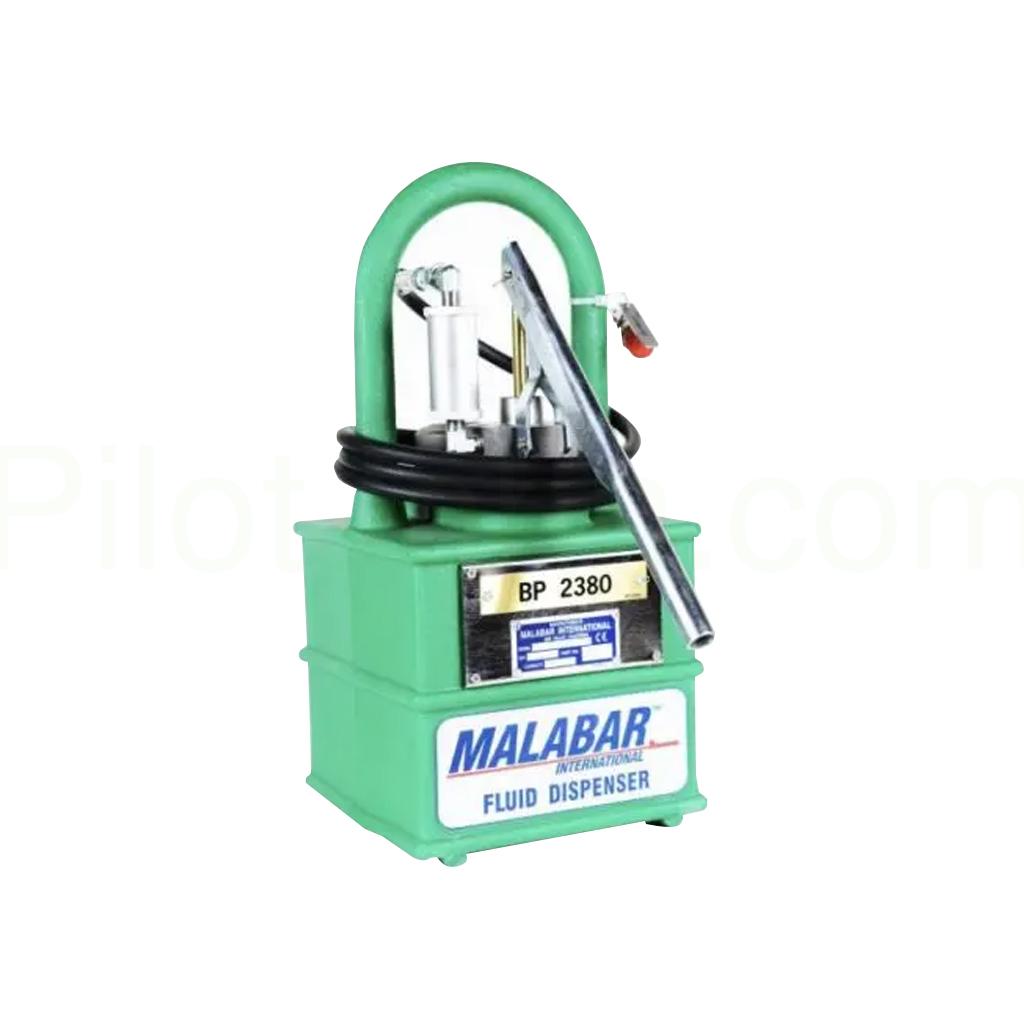

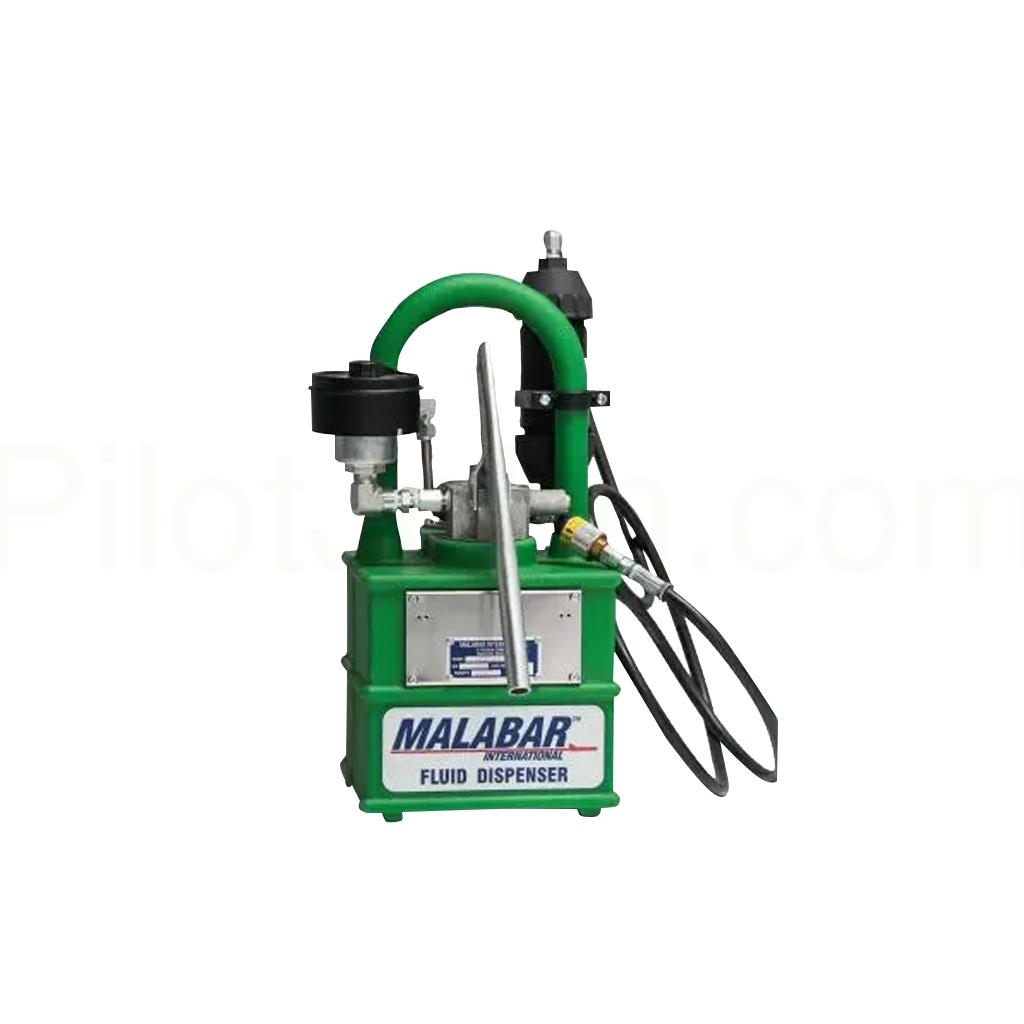

The Malabar 250 Turbine Oil Dispenser is a 2-gallon fluid dispenser used to service various commercial aircraft engines, APUs, CSDs, and IDGs. The hand pump dispenser consists of a reservoir, pump assembly, filter assembly, and a fluid delivery hose.

Standard Features

• Durable, lightweight, and portable 2-gallon capacity reservoir with integral carrying handle made from specially formulated "HS" cross-linked polyethylene material that is impervious to petroleum-based fluids, hydraulic fluids, UV, solvents, and cleaning solutions. "HS" units maintain a very high impact strength even at sub-zero temperatures and are available in several colorfast colors for easy identification of the proper fluid type.
• Manual hand pump and inline filter to dispense clean filtered aircraft fluids into aircraft systems
• Large fill port
• 1-year standard warranty
• Fully enclosed shipping container

Specifications

• Fluid Type: Turbine Oil
• Fluid Capacity: 2 gallons (7.6 liters)
• Unit Displacement per Stroke: 2.5 cu. in. (41 cc)
• Maximum Pump Outlet Pressure: 100 psig (7 kg/sq cm)
• Standard Hose Length: 84" (2,134 mm)
• Standard Filter Rating: 2-3 micron nominal
• "HS" Tank Net Weight: 12 lbs. (5.4 kg)
• Stainless Steel Tank Net Weight: 18 lbs. (8.2 kg)
