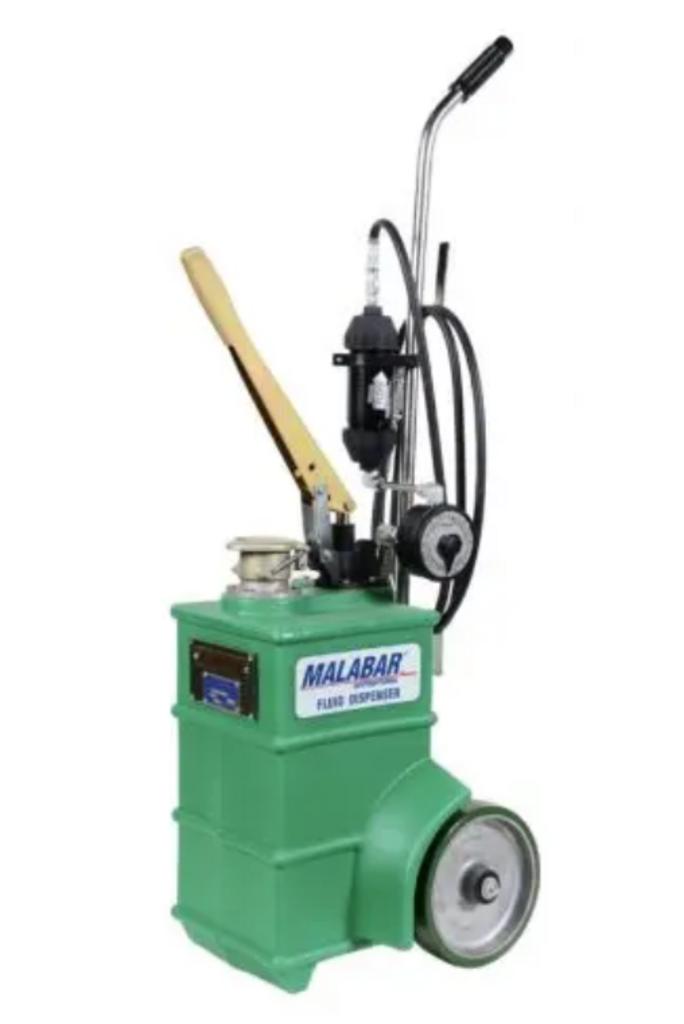

Malabar PF53481-120 - 5 Gal Mobil Jet II Fluid Dispenser
Create yours now for free.
Need a Quote?
The Malabar PF53481-120 is a 5-gallon hand-operated fluid dispenser engineered for servicing commercial aircraft with Mobil Jet II turbine engine oil. Built by Malabar International with over 65 years of aviation ground support experience, this portable dispenser delivers clean, filtered fluid at precise volumes for reliable aircraft replenishment during line maintenance and MRO operations.
Key Features
- 5 U.S. gallon (18.9 liter) stainless steel reservoir for corrosion resistance and fluid purity
- Hand pump assembly delivers 3.0 cubic inches (49 cc) per stroke at 100 psig outlet pressure
- Integrated 3-micron nominal filter element protects aircraft systems from contamination
- Locking fillport assembly prevents unauthorized access and fluid contamination
- 0-200 psig pressure gauge and liter-scale fluid meter for accurate dispensing and monitoring
- 240-inch (6,096 mm) fluid delivery hose with gravity fill adapter and dust plug
- Rubber-wheeled cart-style base for easy maneuvering on the ramp or in the hangar
- Compact net weight of 35 lbs (15.9 kg) empty for single-technician handling
Specifications
- Approved Fluid: Mobil Jet II
- Reservoir Capacity: 5 U.S. gallons (18.9 liters)
- Pump Outlet Pressure: 100 psig (689 kPa)
- Volume per Stroke: 3.0 cubic inches (49 cc)
- Filter Rating: 3 micron nominal
- Hose Length: 240 inches (6,096 mm)
- Net Weight (empty): 35 lbs (15.9 kg)
- Tank Material: Stainless Steel
Applications
The PF53481-120 is designed for line maintenance technicians, A&P mechanics, and MRO facilities servicing commercial aircraft turbine engines that require Mobil Jet II lubricant. Its portable hand-pump design makes it ideal for ramp operations, hangar use, and remote servicing locations where powered equipment is impractical. Every dispense is filtered to 3 microns, safeguarding engine bearings and oil system components against particulate contamination that can lead to premature wear or AOG events.
Service & Support
Regular filter element changes every 3-4 months (or sooner if pumping resistance increases) keep the unit performing at spec. Malabar offers the PF5-49PK repair parts kit containing the hose assembly, filter element, pump gasket, O-rings, spring, pins, and fasteners needed for routine pump rebuilds — recommended stocking inventory for any fleet using this dispenser.
| General Information | |
|---|---|
| Part # | PF53481-120 |
| Manufacturer | Malabar |
| Shipping Information | |
|---|---|
| Shipping Weight | 67 lbs. |
| Shipping Dimensions | 54 x 24 x 24 in. |
| Schedule B | 8413110000 |
| ECCN | EAR99 |
| Specifications | |
|---|---|
| Approved Fluid | Mobil Jet II |
| Filter Rating | 3 Micron Nominal |
| Hose Length | 240 in (6,096 mm) |
| Net Weight (Empty) | 35 lbs (15.9 kg) |
| Pressure Gauge | 0-200 psig |
| Pump Outlet Pressure | 100 psig (689 kPa) |
| Reservoir Capacity | 5 U.S. gal (18.9 L) |
| Tank Material | Stainless Steel |
| Volume per Stroke | 3.0 cu in (49 cc) |
| Spare Parts | |
|---|---|
| 329-007 | HHCS, 1/4-28 x 21/32 LG |
| 355-007 | Nut, Self Locking, 1/4-28 |
| 355-013 | Locknut |
| 355-021 | Self Lock Nut, 5/16-24 |
| 372-001 | Cotter Pin, 3/32 Dia x 3/4 LG |
| 397-010 | Self Tapping Screw, #6 |
| 481-006 | Filter Element |
| 482-050 | Gauge, 0-200 PSIG |
| 486-020 | Fluid Meter, Liters |
| 492-218 | Rubber Wheel |
| 494-006 | Handle Grip |
| 55925-025 | O-Ring |
| 55925-210 | O-Ring |
| 55925-218 | O-Ring |
| 55925-329 | O-Ring |
| 55997-2 | Placard, Mobil Jet II |
| 55998 | Malabar Sticker |
| 711-022 | Nipple, 1/2 NPT x 3/8 NPT |
| 711-079 | Nipple, 1/2 NPT x 1/4 NPT |
| 712-017 | Elbow, Street, 3/8 NPT |
| 713-012 | Tee, 1/4 NPT |
| 721-004 | Conn., 3/8 37° x 1/4 MPT |
| 736-013 | QD Coupling |
| AN5-12A | HHCS, 5/16-24 x 1 11/32 LG |
| PF101161 | Body, Filter Housing |
| PF101163 | End Cap, Filter Housing |
| PF53514 | Tube |
| PF53515 | Plunger Rod |
| PF53517 | Handle |
| PF53518 | Pin |
| PF53533 | Link |
| PF53535 | Valve Plate |
| PF53594 | Valve Assembly |
| PF53599 | Plunger Body |
| PF53600 | Spring |
| PF53602 | Pump Gasket |
| PF53628 | Gasket, Fillport |
| PF53842 | Box |
| PF55416 | Tank |
| PF55456-3 | Hose Assembly |
| PF55466 | Pump Body |
| PF55480-2 | Pump Assembly |
| PF55676 | Nameplate |
| PF55759 | Gravity Fill |
| PF55867 | Handle Stop |
| PF55956 | Locking Fillport Assy |
| PF55987 | Dust Plug and Chain |
Customers also viewed
AIRCRAFT COMPATIBILITY
| Compatible Aircraft* |
|---|
PRODUCT REVIEWS
This item does not have any reviews yet.
QUESTIONS & ANSWERS
The PF53481-120 is specifically configured for Mobil Jet II turbine engine oil, as indicated by the placard on the unit. Using any other fluid requires confirmation against the aircraft manufacturer's specifications.
The Malabar PF53481-120 holds 5 U.S. gallons (18.9 liters) of fluid and incorporates a 3-micron nominal filter element to protect aircraft systems from contamination.
The pump delivers 100 psig (689 kPa) outlet pressure with 3.0 cubic inches (49 cc) of fluid per stroke, monitored by an integrated 0-200 psig gauge.
Yes. Malabar offers the PF5-49PK repair parts kit, which includes the hose assembly, filter element, pump gasket, O-rings, spring, pins, self-lock nuts, cotter pin, and hex head cap screw for routine pump maintenance.
Malabar recommends replacing the filter element every 3-4 months, or sooner if increased resistance is felt on the pumping stroke at low pressure.
The fluid delivery hose is 240 inches (6,096 mm / 20 feet) long and terminates in a gravity fill adapter assembly with a dust plug.
