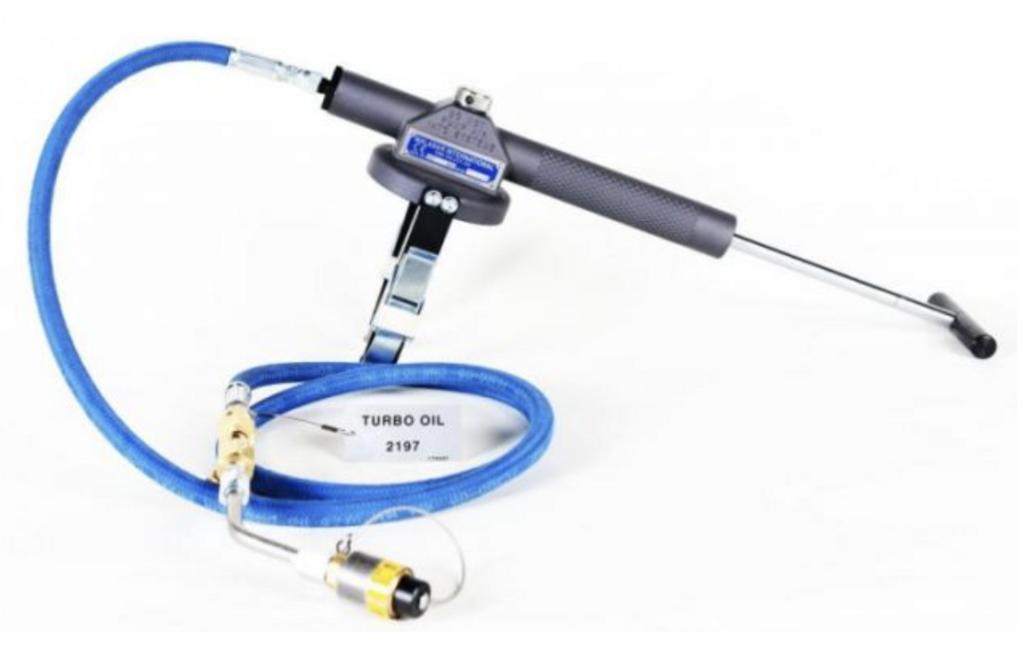

Malabar WF174410-28H Oil Servicing Gun – Model 150QH-06-01 (Mobil Jet II Engine, APU & CSD)

The Malabar WF174410-28H Oil Servicing Gun (Model 150QH-06-01) is a precision-built tool engineered for turbine oil servicing in aircraft engines, APUs (Auxiliary Power Units), CSDs (Constant Speed Drives), and IDGs (Integrated Drive Generators). This model is part of Malabar’s trusted Model 150 series, known for reliability, precision, and compatibility with aviation turbine oils such as Mobil Jet II.

Designed for professional aviation maintenance and ground support operations, the 150QH-06-01 configuration ensures accurate dispensing and servicing of turbine oil, while maintaining high safety and quality standards demanded in aircraft maintenance environments.

Technical Specifications

• Manufacturer: Malabar International Inc.

• Model Number: 150QH-06-01

• Product Reference: WF174410-28H

• Product Type: Oil Servicing Gun / O-C Gun

• Series: Malabar Model 150 Series

• Unit Displacement & Size: 4 cubic inches with 1 quart (0.95 liter) fluid container

• Fluid Designation & Placard: “06” — Mobil Jet II Engine, APU, and CSD

• Fluid Type: Turbine oil (Mobil Jet II or MIL-L-23699 equivalent)

• Typical Aircraft Applications:

  • Aircraft engines using turbine oil

  • Auxiliary Power Units (APUs)

  • Constant Speed Drives (CSDs)

  • Integrated Drive Generators (IDGs)

• Hose End Configuration (01):

  • Sight gauge and bleed with 45° elbow

  • 2506 coupling (Malabar 736-013)

• Reservoir Material: Aircraft-grade aluminum, corrosion-resistant finish

• Capacity: 1 quart / 1 liter fluid container

• Displacement Mechanism: Manual oil discharge, 4 cu in. per stroke

• Accessories (Optional):

  • Overflow hose and coupling for IDG/CSD service (PF55951)

  • Wet spline adapter, CSD only (PF53175)

  • Repair kits and gravity fill adapter available separately

• Service Type: Oil charging and draining for turbine systems

• Typical Use Environments: Hangar maintenance, MRO facilities, and flight line service

• Cross Reference: Model 150QH series (Mobil Jet II configuration)

• Compliance: Designed to meet aviation servicing standards for turbine oil systems

Key Features & Benefits

• Precision Oil Delivery: 4 cu in. displacement ensures accurate, consistent oil transfer.

• Mobil Jet II Compatibility: Specifically configured for Mobil Jet II turbine oil systems.

• Clear Sight Gauge System: Allows easy monitoring during fill and bleed operations.

• Durable Aluminum Construction: Lightweight, corrosion-resistant body for long service life.

• Easy Serviceability: Field-repairable design with available replacement kits.

• Quick-Connect Couplings: Industry-standard fittings reduce servicing time and prevent leakage.

• Versatile Usage: Compatible with multiple turbine oil systems across commercial and military aircraft.

• Proven Reliability: Built to withstand heavy-duty use in aviation maintenance environments.

Typical Applications

• Servicing turbine oil systems in commercial and military aircraft

• Line maintenance and hangar oil replenishment operations

• Engine overhaul shops handling Mobil Jet II systems

• Ground Support Equipment (GSE) and calibration labs maintaining oil reservoirs
