Start Pac 3324QC-105 Amp 24V Power Supply / Battery Pack
Get a Quote or Ask a Question
|Company Name:||Phone: (optional)|
The Start Pac 3324QC-105 GPU is designed for ground use to perform starting and maintenance functions. This unit can be used in remote ramp locations using battery power alone and give extended time for maintenance checkout. When connected to AC power, the depleted batteries can be charged in less than two hours with the built in power supply/battery charge.The Model 3324QC-105 GPU is a combination power supply and battery pack.
- 52 Amp Hours at 10 hour rate
- 24 Volt DC- 25.5 Volts at rest
- Sealed cells non-hazardous
- Valve regulated high amperage output lead acid
- 2800 Peak Amps
- 105 amps DC continuous output at 28.5 Volts.
- Battery recharge time from fully discharged 1 to 4 hours
- AC Input - 220 Volts only
NOTE-When using more than 105 continuous amps, the batteries will make up the difference until they become depleted. On most aircraft, a low voltage relay will drop below a preset level. Once the GPU is dropped off, it's voltage will rise and will be accepted again by the aircraft, then will immediately drop off again. This oscillation can cause damage to aircraft components.

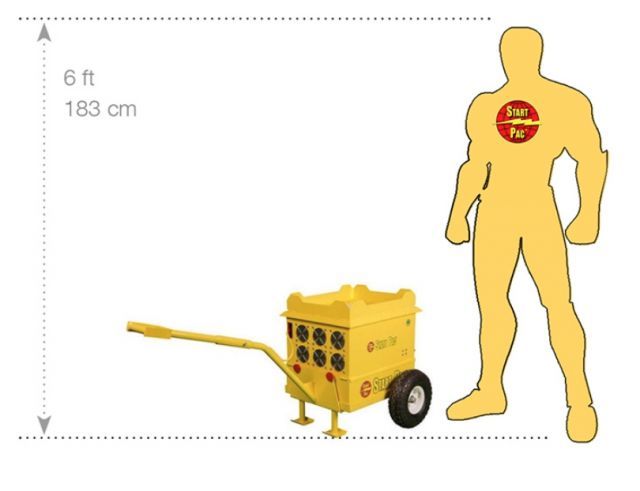

The following dimensions apply to each of the 3300s: L 38" x W 21" x H 20" / L 96.52cm x W 53.34cm x H 50.8cm; Handle Height 48"/121.92cm.
The GPU is rated at 2800 peak starting amps and a continuous 105 amps DC output when connected to a 220 Volt AC source. This unit has a large battery capacity (52Ah) that will allow extended usage time when no AC power source is available.
The 3324-105 weighs 200 pounds and is pulled by hand or tug. Locking the handle in an upright position sets the GPU brake.
Always recharge the GPU until charger green light appears. Once charged, it is not necessary to leave the unit turned on. If a heater is installed, leave unit plugged in.
There are approximately thirty 110 volt and thirty 220 volt NEMA plugs in use.Also, customers have various receptacle at their hangars and MRO facilities and may require specific AC cord length to meet their requirements. Due to these facts, we do not automatically provide AC power cords. If you provide the NEMA plug number and specify the AC power cord length you require we will build a cord to be shipped with your unit for a small fee.
|3324-105||Previous Model Number|
|GPU 1500/40 Twin||Similar Model Number|
|Pkg. 1 Weight||313 lbs.|
|Pkg. 1 Dimensions||41 in. x 25 in. x 25 in.|
|Pkg. 1 Type||Skid|
We sell parts for the 3324QC-105 and other items like it at our facility. Not sure exactly what part you need? Just describe it or send us a photo and we will research it for you.
