Available for Order
Usually ships in 4 to 5 days
$494.40 /ea.
Qty
Choose an analyzer model:
CofC and 8130 available at no cost
Worldwide shipping available
Need a Quote?
Key Features:
• Accurately measures key combustion parameters, including CO, temperature, and efficiency.
• Store up to 50 readings for trend analysis and troubleshooting.
• Designed to withstand the rigors of aviation maintenance environments.
• Intuitive interface and clear display for efficient use.

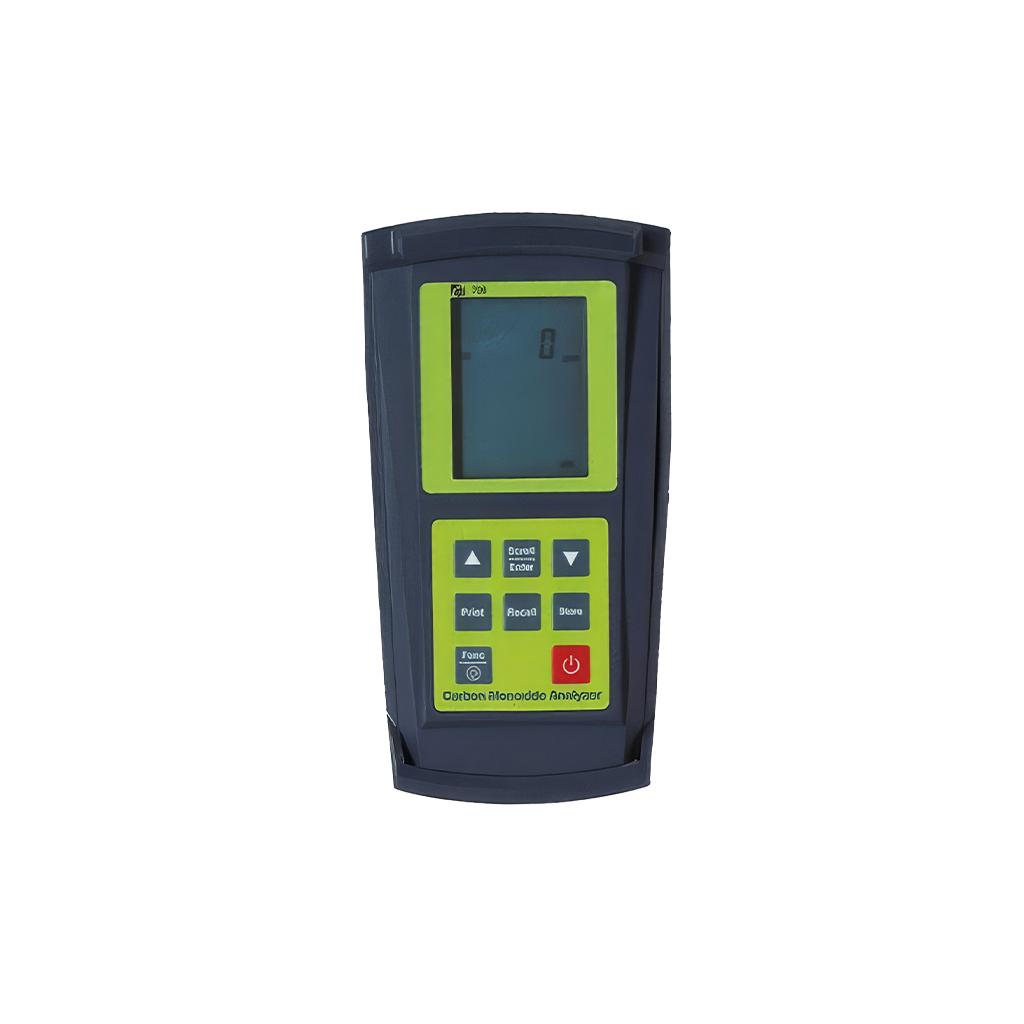

By providing precise combustion data, the Test Products International (TPI) 708 Combustion Efficiency Analyzer helps optimize engine performance, reduce fuel consumption, and minimize emissions, contributing to a safer and more sustainable aviation industry.
Standard Accessories Included:
Rubber boot
Soft carrying case
Flue sampling probe
In-line filter assembly
Temperature probe
Mini pump protection filter assembly and spare filters
Exhaust spigot
Instruction manual
| General Information | |
|---|---|
| Part # | 708 |
| Manufacturer | Test Products International |
| Shipping Information | |
|---|---|
| Product Weight | 4.9 lbs. |
| Product Dimensions | 10 x 8 x 6 in. |
| Schedule B | 9027100000 |
| Specifications | |
|---|---|
| Accuracy | ±0.3% |
| Battery Type | 1.5V AA (3) |
| Carbon Dioxide (CO2) Range | 0 to 25% |
| Carbon Dioxide (CO2) Resolution | 0.1% |
| Carbon Monoxide (CO) Accuracy | +/-5ppm or 5% of reading whichever is greater |
| Carbon Monoxide (CO) Measurement | Range 0 to 10,000 ppm |
| Carbon Monoxide (CO) Resolution | 1 ppm |
| CO/CO2 Ratio Range | 0 to 0.999 |
| CO/CO2 Ratio Resolution | 0.001 |
| Conformity | BS7927 (and the draft BS7967) |
| Data Logging | N/A |
| Data Storage | 50 Locations |
| Date and Time Function | 24 Hour Real Time Clock |
| Dimensions | 200mm x 90mm x 60mm |
| Display Type | Backlit 3 line LCD |
| Draft/Pressure Ranges | -150 mBar to +150 mBar, -15 kPa to +15 kPa -60 inH2O to +60 in H20 |
| Draft/Pressure Selectable Ranges | mBar,kPa, and inH2O |
| Gross/Net Efficiency | Range 0 to 100% |
| Nitric Oxide Measurement | N/A |
| NOX Measurement | N/A |
| Operating Temperature | 14°F to 122°F (-10°C to 50°C) |
| Oxygen (02) Measurement | Range 0 to 25% |
| PC Communication | N/A |
| Print Capability | Yes, via optional IR printer (A740) |
| Resolution | 0.1% |
| Selectable Fuels | Natural Gas, LPG, Light Oil, Heavy Oil, Bituminous Coal, |
Customers also viewed
Why not take all 3? The small, medium, and large in one package.
ExLRT Loop/Joint Tester for Select Boeing Aircraft
0-99,999 ppm CO, High Range, Internal Pump
0-6,000 ppm CO2, Bluetooth, 30hr Battery
AIRCRAFT COMPATIBILITY
This item is for use on all aircraft.
PRODUCT REVIEWS
This item does not have any reviews yet.
QUESTIONS & ANSWERS
Question:
When should I use the optional A773 oil filter?
Answer:
If your analyzer is used in an oil fuel application, the A773 filter should be used. This filter does not have to be removed for other fuel types.
Asked September 9, 2024
Question:
Should I set my analyzer to gross or net efficiency?
Answer:
Gross efficiency is the correct choice for applications in the United States.
Asked September 9, 2024
Question:
Can this combustion analyzer test for carbon monoxide in ambient air?
Answer:
Yes, this analyzer can test for carbon monoxide in ambient air.
Asked September 9, 2024
