Key Features:
• Remote Operation: Control the analyzer and view real-time data wirelessly using the Test Products International (TPI) View app on your smartphone or tablet.
• Comprehensive Analysis: Accurately measure oxygen, carbon monoxide, and temperature differential to assess combustion efficiency.
• Calculated Parameters: Calculate key combustion parameters, including CO2, CO Air Free, Excess Air, and Combustion Efficiency for in-depth analysis.
• Data Management: Generate on-site reports, store data, and share results effortlessly through the Test Products International (TPI) View app.
• Durable Design: Rugged construction and powerful magnetic mounting ensure reliable performance in demanding environments.

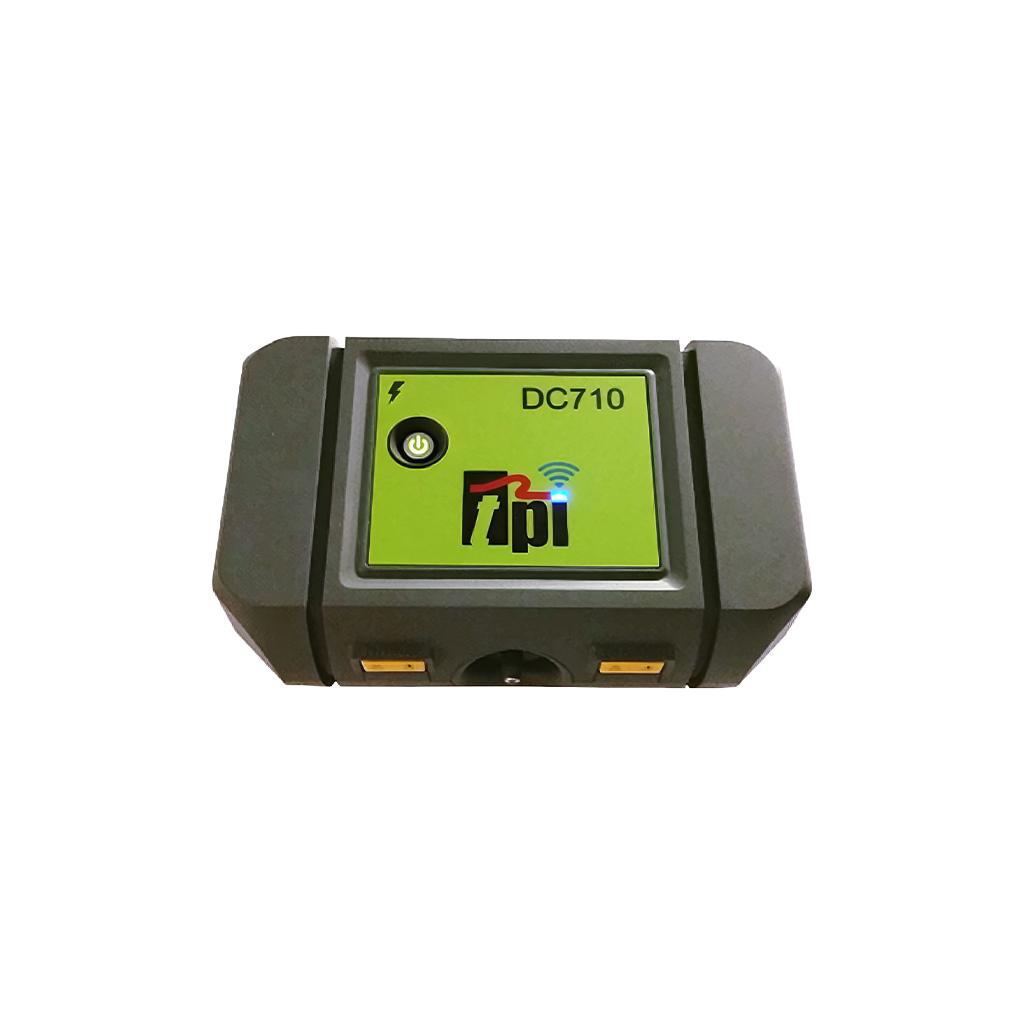

The Test Products International (TPI) DC710 Combustion Analyzer provides real-time combustion data and analysis, helping optimize engine performance, reduce fuel consumption, and minimize emissions.
| General Information | |
|---|---|
| Part # | DC710 |
| Manufacturer | Test Products International |
| Shipping Information | |
|---|---|
| Product Weight | 3.2 lbs. |
| Product Dimensions | 10 x 8 x 6 in. |
| Schedule B | 9027100000 |
| Specifications | |
|---|---|
| Battery Life | >6 hours typical |
| Battery Type | Rechargeable Li-ion (3.7V/2600mA) |
| Carbon Monoxide (CO) Range | 0 to 10,000ppm; +/-5ppm or 5% of reading whichever is greater |
| Charger Input | USB Connection |
| Dimensions (W x L x D) | 150mm x 100mm x 58mm (5.9” x 3.9” x 2.3”) |
| Gas Sensor Type | Electrochemical field replaceable smart sensors (O2 and CO) |
| Operating Temperature | -10°C to 50°C (-14°F to 122°F) |
| Oxygen (O2) Range | 0 to 25%; +/-0.3% O2 |
| Pre-programmed Fuels | Natural Gas, LPG, Light Oil, Heavy Oil, Bituminous Coal, Coke, Butane, Wood, Bagasse |
| Temperature Range | -50°C to 1000°C (-58°F to 1832°F); +/- 0.3% of reading +1°C (+/-0.3% of reading +2°F) |
| Weight | 490g (1.1 lb) |
