Available for Order
Usually ships in 4 to 5 days
$642.74 /ea.
Qty
Choose an analyzer model:
CofC and 8130 available at no cost
Worldwide shipping available
Need a Quote?
Key Features:
• Comprehensive Combustion Analysis: Accurately measure CO and temperature differential and calculate key combustion parameters such as CO2, CO Air Free, Excess Air, and Combustion Efficiency.
• Advanced Features: High-resolution differential manometer for precise pressure measurements, pump-driven operation for fast response, and built-in differential thermometer for comprehensive analysis.
• Data Management: Store up to 50 readings for trend analysis and troubleshooting.
• Durable Construction: Rugged design for use in demanding environments.
• User-Friendly Operation: Intuitive interface and large, easy-to-read display for efficient operation.

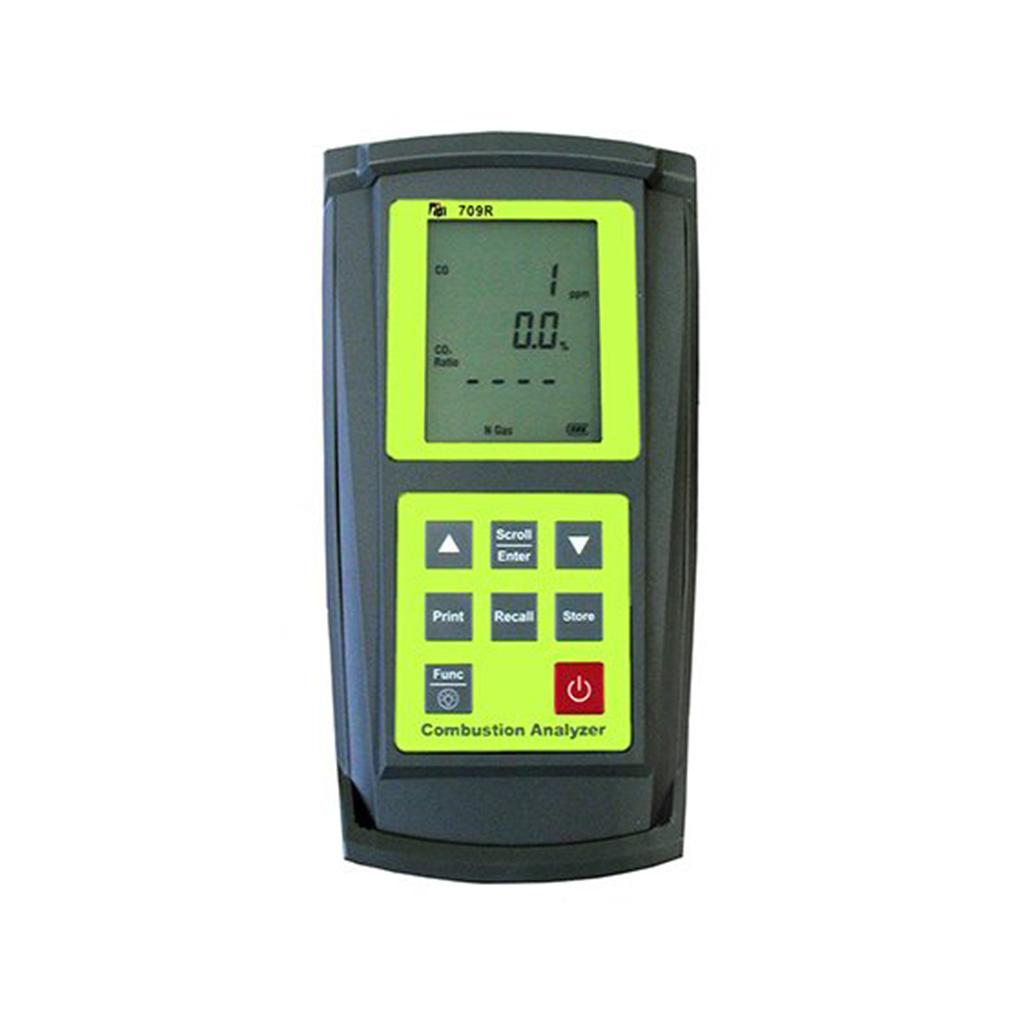

By providing comprehensive combustion data and analysis, the Test Products International (TPI) 709R Flue Gas Analyzer helps optimize engine performance, reduce fuel consumption, and minimize emissions, contributing to safety and sustainability.
| General Information | |
|---|---|
| Part # | 709R |
| Manufacturer | Test Products International |
| Shipping Information | |
|---|---|
| Product Weight | 5 lbs. |
| Product Dimensions | 10 x 8 x 6 in. |
| Schedule B | 9027100000 |
| Specifications | |
|---|---|
| Carbon Dioxide (calculated) Accuracy | Calculated |
| Carbon Dioxide (calculated) Range | 0-25% |
| Carbon Dioxide (calculated) Resolution | 0.1% |
| Carbon Monoxide Accuracy | (<20ppm) +/- 3 ppm, (>=100ppm) +/- 5% |
| Carbon Monoxide Range | 0-10,000 ppm |
| Carbon Monoxide Resolution | 1 ppm |
| Casing | Rubber Boot as Standard |
| CO/CO2 Ratio Accuracy | +/- 0.3% |
| CO/CO2 Ratio Range | 0-0.999 |
| CO/CO2 Ratio Resolution | 0.001 |
| Combustion Efficiency Range | 0-100% |
| Combustion Efficiency Resolution | 0.1% |
| Conforms to | EN50379 |
| Data Storage | 50 sets of readings, multiple pages |
| Dimensions | 7.8” (200mm) x 3.5” (90mm) x 2.4” (60mm) |
| Display | Backlit Graphic LCD |
| Exhaust | Safety Spigot |
| Flue Temperature Probe Construction | Pistol Grip with Stainless Steel Shaft |
| Flue Temperature Probe Hose Length | 8.2’ (2500mm) |
| Flue Temperature Probe Maximum Temperature | 1472°F (800°C) |
| Fuels | Natural Gas, LPG, Light Oil, Heavy Oil, Bituminous Coal, Anthracite Coal, Coke, Butane, Wood, Bagasse |
| Insertion Length | 7.9” (200 |
| K' Type Thermocouple Accuracy | +/- 0.3% of fullscale, +/- 2°F (1°C) |
Customers also viewed
Why not take all 3? The small, medium, and large in one package.
Kell-Strom KS5549 PRO 360 Digital Protractor
200 lb Capacity - 1 lbf Resolution
4mm HD Videoscope Inspection Camera – Joystick Articulation – 1.5m Length
Digital Vacuum Gauge, 12000-15 Micron, 7 Units
AIRCRAFT COMPATIBILITY
This item is for use on all aircraft.
PRODUCT REVIEWS
This item does not have any reviews yet.
QUESTIONS & ANSWERS
Question:
When should I use the optional A773 oil filter?
Answer:
If your analyzer is used in an oil fuel application, the A773 filter should be used. This filter does not have to be removed for other fuel types.
Asked October 3, 2024
Question:
Should I set my analyzer to net or gross efficiency?
Answer:
Gross efficiency is the correct choice for applications in the United States.
Asked October 3, 2024
