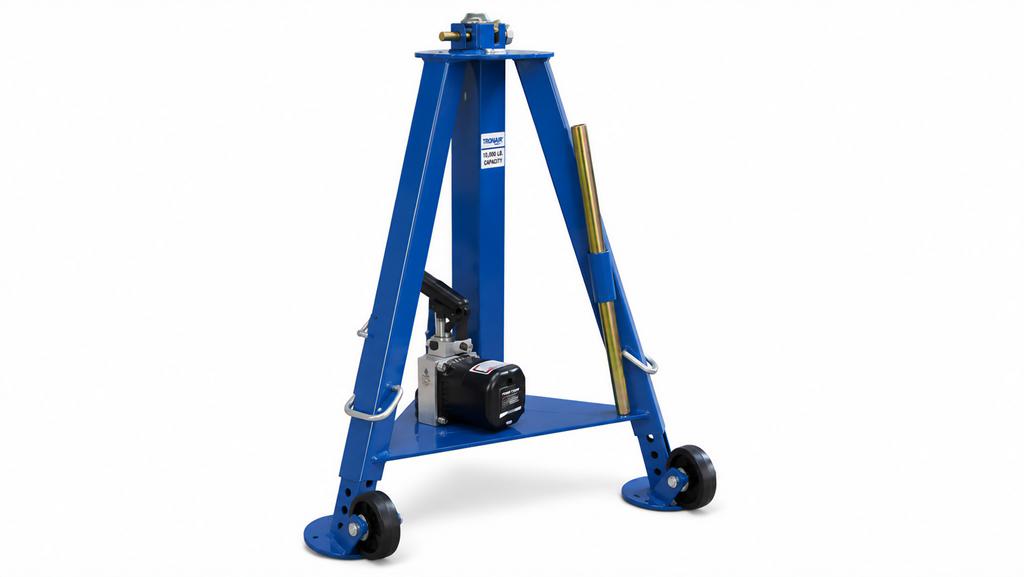

Tronair 02-0222C0111 – 2-Ton Tripod Jack

The Tronair 02-0222C0111 is a 2-Ton (4,000 lb) hydraulic aircraft tripod jack engineered to lift aircraft from the forward fuselage or main wing jacking points during maintenance, inspections, and ground operations. With a 23" (58.4 cm) closed height and 46" (116.8 cm) maximum extended height, it accommodates a range of aircraft fuselage and wing jacking point heights. The single-stage hydraulic design provides controlled lift and positive lock at any extension height. CE-marked for compliance with European aviation safety standards. OEM-specified for Cessna 310, 320, 337 Skymaster and others. Also approved for Diamond Aircraft DA20-A1, DA20-C1 and others.

Standard Features

• Hand pump with built-in pressure relief valve
• Threaded rams with improved handwheel-style safety nut
• Quick-rising center extension for rapid initial lift
• Easy-access filler/breather cap
• Heavy-duty wheels for easy maneuverability
• Hydraulic fluid: MIL-PRF-5606
• ¾" (2 cm) spherical radius cup jack pad
• CE marked
• Durable powder-coat finish (Tronair Blue)

Technical Specifications

• Rated Capacity: 4,000 lbs (1814 kg)
• Operating Temperature: −4°F to 122°F (−20°C to 50°C)
• Pressure Relief Setting: 2,500 + 250/−0 PSIG (172.4 + 17.2/−0 bar)
• Minimum Closed Height: 23" (58.4 cm)
• Mechanical Extension: 12" (30.5 cm)
• Hydraulic Extension: 11" (27.9 cm)
• Maximum Height Obtainable: 46" (116.8 cm)
• Weight: 70 lbs (32 kg)
• Hydraulic Fluid: MIL-PRF-5606
• Jack Pad: ¾" (2 cm) spherical radius cup
• Finish: Durable powder coat (Tronair Blue)

Safety Features

• Ram Lock Nut: Prevents the lowering of the ram. The ram lock nut must be lowered as the aircraft is being lifted. Ram lock nuts must be kept within 2" of the stop while raising the aircraft.
• Lock Nut Retention Ring: Prevents the lock nut from being unscrewed from the second stage.
• Pressure Relief Valve: Prevents overload during raising operations.

Aircraft Applications

The 02-0222C0111 is OEM-approved for the following aircraft types:

• Cessna: 310, 320, 337 Skymaster, 340, 411 and 5 more
• Diamond Aircraft: DA20-A1, DA20-C1, DA40 Diamond Star
• Hawker Beechcraft: Beech Baron, Beech Bonanza, Duke 60
• Mooney: All
• Piper: Aztec, Cherokee, Comanche, Seneca

This list reflects aircraft for which the manufacturer has specifically approved this jack. Additional applications may be possible — always confirm jacking capacity, adapter requirements, and placement procedures with the aircraft maintenance manual before use.
