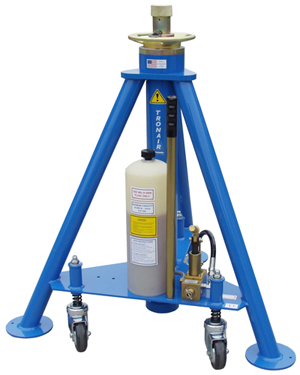

The Tronair 02A1240C0111 is a 12-Ton (24,000 lb) hydraulic aircraft tripod jack engineered to lift aircraft from the forward fuselage or main wing jacking points during maintenance, inspections, and ground operations. A factory-installed air pump allows rapid initial extension without additional equipment. CE-marked for compliance with European aviation safety standards. OEM-specified for Dassault Falcon 2000, Falcon 2000EX, Falcon 900 and others.
Standard Features
- Factory-installed air pump for rapid initial extension and on-aircraft inflation
- Hand pump with built-in pressure relief valve
- Threaded rams with improved handwheel-style safety nut
- Quick-rising center extension for rapid initial lift
- Easy-access filler/breather cap
- Heavy-duty wheels for easy maneuverability
- Hydraulic fluid: MIL-PRF-5606
- ¾" (2 cm) spherical radius cup jack pad
- CE marked
- Durable powder-coat finish (Tronair Blue)
Technical Specifications
- Rated Capacity: 24,000 lbs (10886 kg)
- Operating Temperature: −4°F to 122°F (−20°C to 50°C)
- Air Supply Requirements:
- Minimum: 25 PSI (1.72 bar)
- Recommended: 40 PSI (2.75 bar)
- Maximum: 125 PSI (8.6 bar)
- Pressure Relief Setting: 2,500 + 250/−0 PSIG (172.4 + 17.2/−0 bar)
- Noise Level: 64 dB(A) at a distance of 120" (304.8 cm) at an inlet pressure of 100 PSI (6.9 bar)
- Hydraulic Fluid: MIL-PRF-5606
- Jack Pad: ¾" (2 cm) spherical radius cup
- Finish: Durable powder coat (Tronair Blue)
Safety Features
- Ram Lock Nut: Prevents the lowering of the ram. The ram lock nut must be lowered as the aircraft is being lifted. Ram lock nuts must be kept within 2" of the stop while raising the aircraft.
- Hold-to-Run Air Valve: Requires the operator to hold the air valve lever to raise the ram using the air pump. Releasing the air valve lever stops the upward movement of the ram.
- Lock Nut Retention Ring: Prevents the lock nut from being unscrewed from the second stage.
- Pressure Relief Valve: Prevents overload during raising operations.
Aircraft Applications
The 02A1240C0111 is OEM-approved for the following aircraft types:
- Dassault: Falcon 2000, Falcon 2000EX, Falcon 900, Falcon 900EX
This list reflects aircraft for which the manufacturer has specifically approved this jack. Additional applications may be possible — always confirm jacking capacity, adapter requirements, and placement procedures with the aircraft maintenance manual before use.
Need your Tronair 02A1240C0111 12-ton tripod jack serviced, repaired, or load tested?
Pilot John is an authorized Tronair distributor and factory-authorized Tronair service center. Every jack ships new from our warehouse with Certificates of Conformance (CofC) and FAA Form 8130-3 documentation available at no additional cost. Need jack service, load-testing, or repair? Pilot John handles that too as an OEM-trained GSE service center. For more information or to request service, see our Service Center page, and see our article on why jack load testing matters. Pilot John also operates an ISO-17025 calibration center for all of your tooling and equipment calibration needs — learn more here.
Also Available
- Without air pump (hand pump only): Tronair 02-1240C0111
| Alternate Models | |
|---|---|
| 02A1240-0111 | Previous Model Number |
| General Information | |
|---|---|
| Part # | 02A1240C0111 |
| Manufacturer | Tronair |
| Manual 1 | View Tronair 02A1240C0111 Manual |
| Shipping Information | |
|---|---|
| Shipping Weight | 320 lbs. |
| Shipping Dimensions | 43 x 43 x 48 in. |
| Freight NMFC | 186600 |
| Schedule B | 8425420000 |
| ECCN | EAR99 |
| Specifications | |
|---|---|
| Capacity | 12 tons |
| Closed Height | 40 (102) in (cm) |
| Fully Extended | 78 (198) in (cm) |
| Hydraulic Extension | 24 (61) in (cm) |
| Mechanical Extension | 14 (36) in (cm) |
| Single (S) or Multi (M) Stage | S |
| Weight | 220 (100) lb (kg) |
| Spare Parts | |
|---|---|
| 50866 | Haskel Seal Lubricant |
| G-1100-105006 | Bolt, HH Grade 5, ¼ - 20 x ¾ Lg |
| G-1100-105510 | Bolt, Hex Head, Grade 5, ¼-28 x 1" long |
| G-1100-106512 | Bolt, Hex Head, Grade 5, 5/16-24 x 1¼" long |
| G-1100-107010 | Bolt, Hex Head, Grade 5, 3/8-16 x 1" long |
| G-1151-107206 | Screw, Socket Head Cap, 3/8-16 x ¾" long |
| G-1202-1055 | Stopnut, ¼-28 Elastic |
| G-1202-1065 | Stopnut, 5/16-24 Elastic |
| G-1203-1105 | Jamnut, 5/8-18 Elastic |
| G-1250-1050N | Flatwasher, ¼ Narrow |
| G-1250-1060N | Flatwasher, 5/16 Narrow |
| G-1250-1100N | Flatwasher, 5/8 Narrow |
| G-1250-1100W | Flatwasher, 5/8 Wide |
| G-1251-1070R | Lockwasher, 3/8 Regular |
| G-1300-25200 | Pin, ¼" diameter x 2" long, Roll |
| G-1318-1033 | Pin, 5/8" diameter x 3.3" long, Model D |
| H-1009-01 | Assembly, Pump Handle |
| H-1045 | Breather |
| H-1174 | Pump, Air |
| H-1252 | Spring |
| H-1516-11 | Clamp, 2 Ear Hose |
| H-2331 | Locknut |
| HC-2000-336 | O-ring |
| HC-2020-336 | Ring, Back-up |
| HC-2322 | Pump, Hydraulic Hand |
| HC-2329 | Reservoir, Translucent |
| HJ-225-04 | Extension |
| HJ-553 | Ring, Protection |
| HJ-554 | Ring, Guide |
| HJ-557 | Pad, Jack |
| HJ-586-03 | Assembly, Ram (includes seals) |
| J-3415-01 | Bracket, Air Pump |
| K-1685 | Haskel Repair Fluid Seal Kit |
| K-1686 | Haskel Repair Air Seal Kit |
| K-3333 | Assembly, Blowgun |
| N-2001-08-S-B | Elbow, Straight Thread, SAE #6 x 3/8-37° JIC |
| N-2004-15-S | Elbow, 3/8 JIC x 3/8 NPT |
| N-2005-08-S | Connector, Male |
| N-2066-06-S-B | Plug, O-Ring Hex Head #6 SAE Port |
| N-2410-11 | Elbow, 90° Male |
| N-2653-01-S-B | Elbow, 90° Male, ¼ Hose x SAE #4 |
| N-2740-04-S-B | Tee, Male Branch, ⅜ NPT |
| N-2788-02-S-B | Elbow, 90° Male ¼ Hose x #6 SAE Port |
| N-2789-03-S-B | Connector, Straight Male, ⅜ NPT, ⅜ Hose |
| TF-1043-03*16.0 | Assembly, Hose |
| TF-1043-06*18.0 | Assembly, Hose, 18" long |
| TF-1047-01*05.5 | Hose, ¼ Gray x 5 ½" long |
| TF-1047-01*10.0 | Hose, ¼" Push-On x 10" Long |
| TR-1505 | Stop, Jack |
| TR-1756 | Plate, Mounting |
| U-1053 | Caster, Stem |
| V-1001 | Label, Made in USA |
| V-1017 | Label, Maximum Capacity 24,000 lbs |
| V-1102-01 | Label, MIL-PRF-5606 |
| V-1198-02 | Label, Tronair |
| V-1775 | Label, Pump Force |
| V-1776 | Label, Down |
| V-1779 | Label, Serial Number |
| V-1805 | Label, ISO General Danger |
| V-1819 | Label, Hydraulic Jack Caution |
| V-2105 | Label, Hydraulic Jack Instructions |
| Z-5118-01 | Weldment, Jack |
Customers also viewed
Customers who bought this item also purchased
AIRCRAFT COMPATIBILITY
| Compatible Aircraft* | |
|---|---|
| Dassault |
Falcon 2000
NOTE
Main/nose landing gear jack: 2 main and 1 nose jack required per aircraft. Control all 3 jacks with air pumps with the Manifold Kit (K-1106).
,
Falcon 2000EX
NOTE
Main/nose landing gear jack: 2 main jacks and 1 nose jack required per aircraft. Control all 3 jacks with air pumps with the Manifold Kit (K-1106).
,
Falcon 900
NOTE
Main/nose landing gear jack: 2 main jacks and 1 nose jack required per aircraft. Control all 3 jacks with air pumps with the Manifold Kit (K-1106).
,
Falcon 900EX
NOTE
Main/nose landing gear jack: 2 main jacks and 1 nose jack required per aircraft. Control all 3 jacks with air pumps with the Manifold Kit (K-1106).
|
PRODUCT REVIEWS
QUESTIONS & ANSWERS
The jack is rated for 24,000 lbs (10,886 kg).
You can raise the jack either manually using the pump handle or with compressed air (for air pump-equipped models). Lowering is done by turning the pump release valve counter-clockwise.
Always lower the ram locknut after raising the aircraft. This acts as a mechanical safety device to prevent unintentional descent.
Check the hydraulic fluid before each use, lubricate casters every 3 months, and perform a full inspection and load test annually by our GSE Service team.
Common issues include low fluid, air in the system, or a malfunctioning release valve. See the troubleshooting section in the manual for a complete guide.
Store it with the ram fully retracted in a clean, dry place. For outdoor storage, cover it with a waterproof tarp or canvas.
