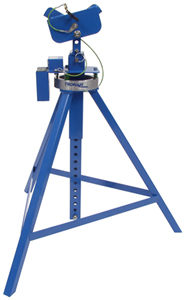

Tronair 03A5815C0010 Tail Stand with Alarm for Select Cessna Citation Aircraft
In Stock
Ready to ship tomorrow if you order in the next 20 hours and 3 minutes (2pm EST)
Don't have an account?
Create yours now for free.
Create yours now for free.
CofC and 8130 available at no cost
Worldwide shipping available
Need a Quote?
The Tronair 03A5815C0010 is an aircraft tail stand used to support an airplane by its fuselage during maintenance, whose maximum load does not exceed the rated capacity of the tail stand. This unit is intended for use on select Cessna Citation aircraft.
The tail stand is equipped with an alarm system that alerts the operator when a force of 100 to 150 lbs (45.4 to 68 kg) is applied to the top of the cradle. The unit attached to the tail stand sounds a loud 85 dB pulsating alarm until the force is reduced.
Standard Features
- Stabilizes the aircraft when lifting with tripod jacks
- Padding is included on all adapters that may come in contact with the aircraft's skin
- Welded steel tripod structure offers a sturdy and stable platform
- Quick-action mechanical extension
- Wide range of interface adapters
- CE marked
- Durable powder-coat finish (Tronair Blue)
Specifications
- Temperature Range: 40°F to 100°F (4°C to 38°C)
- Minimum Closed Height: 27" (68.6 cm)
- Mechanical Extension: 22" (55.9 cm)
- Maximum Height Obtainable: 49" (124.5 cm)
- Weight: 22 lbs (9.9 kg)
- Alarm (Battery-Powered): 9V DC
- Alarm Horn: 85 dB
| Alternate Models | |
|---|---|
| 03-5815-0010 | Previous Model Number |
| 03-5815C0000 | Previous Model Number |
| 03-5815C0010 | Previous Model Number |
| General Information | |
|---|---|
| Part # | 03A5815C0010 |
| Manufacturer | Tronair |
| Manual 1 | View Tronair 03A5815C0010 Parts, Service, and Operation Manual |
| Shipping Information | |
|---|---|
| Shipping Weight | 51 lbs. |
| Shipping Dimensions | 36 x 25 x 29 in. |
| Freight NMFC | 178160 |
| Schedule B | 8431100090 |
| ECCN | EAR99 |
| Spare Parts | |
|---|---|
| EC-1179-01 | TERMINAL, FORKED TONGUE |
| EC-1796 | SWITCH, LIMIT |
| EC-1854 | BATTERY, 9 VOLT |
| G-1100-107022 | BOLT, HH, 3/8 – 16 X 2 |
| G-1100-107526 | BOLT, HH GR 5 3/8 – 24 X 2 ¾ |
| G-1155-105210 | SCREW, 5/16 X 1 SOC HD SHOULDER |
| G-1159-103505 | SCREW, ROUND HD CROSS REC #10 – 32 X 5/8 LG |
| G-1163-10 | SCREW, HEX SOC CUP PINT SET ¼ - 20 |
| G-1202-1035 | ESN #10 – 32 |
| G-1202-1070 | ESN, 3/8 – 16 |
| G-1202-1075 | ESN, 3/8 – 24 |
| G-1250-1030N | FLATWASHER, #10 NARROW |
| G-1250-1070N | FLATWASHER, 3/8 NARROW |
| G-1310-0525 | PIN, BALL-LOK |
| G-1351-04 | RIVET, POP |
| G-1493 | PIN 3/8 X 3 LG |
| H-1026*07.0 | ASSEMBLY, LANYARD |
| H-1026*18.0 | ASSEMBLY, LANYARD |
| H-1565-12*03.0 | PAD, NEOPRENE 1/8“ X 3” |
| H-1901-01 | GROMMET |
| H-2762 | SPRING, LIGHT DUTY DIE |
| H-5136 | ALARM |
| J-3839 | FLAT, SPACER |
| S-1923-01 | COVER, LIMIT |
| TR-1883 | BASE |
| V-1001 | LABEL, MADE IN USA |
| V-1197-01 | LABEL, TRONAIR |
| V-1198-02 | LABEL, TRONAIR |
| V-1779 | LABEL, SERIAL NUMBER |
| Z-2789-01 | WELDMENT, CRADLE |
| Z-5963-01 | WELDMENT, OUTER TUBE |
| Z-6259-01 | WELDMENT, TAILSTAND |
| Z-6261-01 | WELDMENT, INNER TELESCOPING TUBE |
| Z-6262-01 | WELDMENT, OUTER TELESCOPING TUBE |
Customers also viewed
for Select Bombardier & Dassault Aircraft
for Cessna Citation 560 XL, 560 XLS, & Ascend Aircraft
for Select Bombardier, Cessna, & Embraer Aircraft
for Cessna Citation Sovereign 680 Aircraft
for Select Beechcraft Aircraft
Customers who bought this item also purchased
AIRCRAFT COMPATIBILITY
| Compatible Aircraft* | |
|---|---|
| Cessna | Citation CJ1 , Citation CJ2 , Citation CJ3 , Citation CJ4 , Citation M2 , Mustang 510 |
*This list is for general reference only and may not be entirely accurate for all aircraft. Please confirm all equipment meets the requirements of your aircraft with the owners/maintenance manuals prior to purchasing or using with your aircraft.
PRODUCT REVIEWS
5/5
by Ryan D, a Corporate Flight Department in Pataskala, OH
08/15/2017 09:49:21 AM
Great product. Built very strong and light weight. Sensor on tail stand is great option. Using on Citation CJ4. Would highly recommend. Will definitely be a return customer.
