Tronair 09-5046-6500 – TKS Anti-Icing Fluid Service Unit, 7-Gallon Capacity
In Stock
Ready to ship today if you order in the next 2 hours and 2 minutes (2pm EST)
Don't have an account?
Create yours now for free.
Create yours now for free.
CofC and 8130 available at no cost
Worldwide shipping available
Need a Quote?

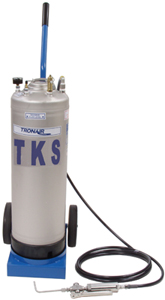

The Tronair 09-5046-6500 Anti-Icing Fluid Service Unit is specifically designed for servicing TKS fluid reservoirs, featuring a lightweight and user-friendly design.
TKS anti-icing systems help keep your aircraft ice-free during operation by coating the wings, props, and windhsield via a pump system. This ensures that your aircraft doesn't accumulate ice in flight when going through precipitation or any cold-weather events.
Standard Features
- TKS anti-icing fluid
- 2-micron filtration
- 7-gallon (27 liter) capacity
- 85 psi (5.9 bar) maximum pressure
- Safety pressure relief set at 125 psi (8.6 bar)
- 15-ft. (4.6 m) standard outlet hose with 37° JIC swivel connector and squeeze handle shutoff valve with #4 tube extension
- 8" (20 cm) semi-pneumatic tires
- Easy-to-use squeeze handle
- Corrosion-resistant, ASME-certified stainless steel tank
- Stainless steel welded parts
- Extended neck to reach fill port
| General Information | |
|---|---|
| Part # | 09-5046-6500 |
| Manufacturer | Tronair |
| NSN | 1730016442492 |
| Manual 1 | View Tronair 09-5046-6500 Parts and Operation Manual |
| Shipping Information | |
|---|---|
| Shipping Weight | 54 lbs. |
| Shipping Dimensions | 17 x 14 x 45 in. |
| Freight NMFC | 177680 |
| Schedule B | 8424890000 |
| ECCN | EAR99 |
| Specifications | |
|---|---|
| Height | 44 (19) in (cm) |
| Length | 15 (38) in (cm) |
| Model | 13 (33) |
| Weight | lb (kg) |
| Width | 42 (107) in (cm) |
| Spare Parts | |
|---|---|
| G-1159-103504 | Screw, Round Head |
| G-1202-1035 | Stopnut, Elastic |
| G-1203-1095 | Jamnut, Elastic |
| G-1250-1090N | Flatwasher |
| H-1218 | Vessel, Pressure |
| H-1221 | Valve, Air |
| H-1223 | Grip, Handle |
| HC-1395 | O-ring, Closure |
| HC-1831 | Gauge, Pressure |
| HC-2220 | Filter, In-line |
| HC-2244 | Valve, Trigger |
| HC-5550 | Assembly, Tube |
| K-3658 | Kit, Element Replacement |
| N-2007-05-SS-V | Connector, Straight Thread |
| N-2009-04-SS | Connector, Male |
| N-2010-04-SS | Connector, Female |
| N-2201-04-SS | Elbow, Male |
| N-2210-02-SS | Reducer, Pipe Thread |
| N-2214-03-SS-V | Connector, Straight Thread |
| PC-1017-02-125 | Valve, Safety |
| TF-1043-09*180 | Hose, Assembly |
| U-1001-01 | Wheel |
| Z-1325-04 | Weldment, Cart |
| Z-5869 | Assembly, Fill Valve; consists of: |
Customers also viewed
– 2.5-Gallon Capacity
55-Gallon Mobile Deicer Cart, 480V AC, 3-Phase
55-Gallon Towable Deicer Cart, 240V AC, Single-Phase
55-Gallon Mobile Deicer Cart, 415V AC, 3-Phase
55-Gallon Mobile Deicer Cart, Type I Fluid Only
Customers who bought this item also purchased
AIRCRAFT COMPATIBILITY
| Compatible Aircraft* | |
|---|---|
| Hawker Beechcraft | HS-125 400 Series , HS-125 800 / 850 / 900 Series , T-1 Jayhawk , T-400 |
*This list is for general reference only and may not be entirely accurate for all aircraft. Please confirm all equipment meets the requirements of your aircraft with the owners/maintenance manuals prior to purchasing or using with your aircraft.
