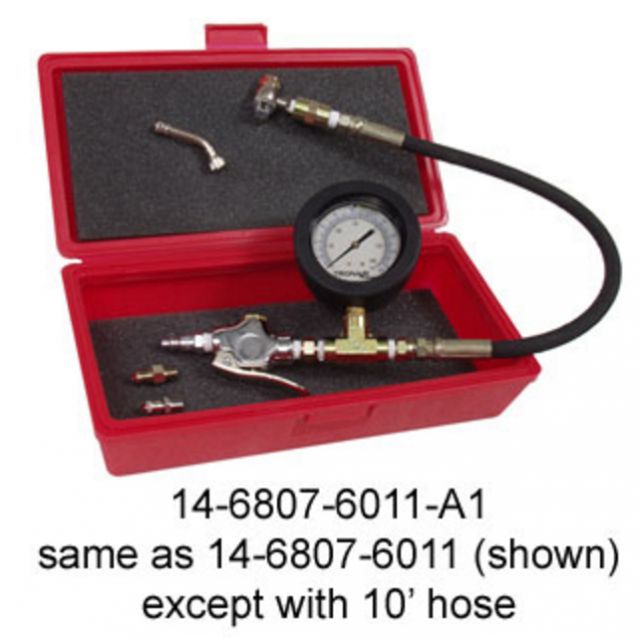

Tronair 14-6807-6011-A1 – Aircraft Tire Pressure Gauge with 10' Hose, 0 to 300 psi
In Stock
Ready to ship tomorrow if you order in the next 34 hours and 53 minutes (2pm EST)
Don't have an account?
Create yours now for free.
Create yours now for free.
CofC and 8130 available at no cost
Worldwide shipping available
Need a Quote?
The Tronair 14-6807-6011-A1 is an aircraft tire service gauge with a pressure range of 0 to 300 psi and a 10' hose. This unit is used to inflate tires with nitrogen.
Standard Features
- Certification documents are provided with all gauges
- Service gauges protected by a rubber boot
- Service gauges are liquid-filled to maintain accuracy
- All gauges require annual calibration
- Storage container standard for Service and Pressure Gauges
Calibration Info
The Certificate of Calibration supplied for the gauge on this unit contains the calibration data for the actual instrument calibrated, along with the calibration date of the standard used to perform the calibration check.
The due date for instrument recalibration should be based on the date the instrument was placed in service in your facility. Recalibration should be done on a periodic basis as dictated by the end user's quality system or other overriding requirements.
Specifications
- Regulator Gauge Accuracy: ASME Grade B 3-2-3
- Gauge Accuracy: +/- Full Scale 1.5%
- Digital Gauge Accuracy: +/- Full Scale 0.25%
- Pressure Range: 0 to 300 psi (0 to 20.7 bar)
- Hose Length: 15" (38 cm)
- Increments: 2 psi (0.14 bar)
| Alternate Models | |
|---|---|
| 14-6807-6011 | Standard 15 Inch Hose Length |
| General Information | |
|---|---|
| Part # | 14-6807-6011-A1 |
| Manufacturer | Tronair |
| NSN | 4910016965111 |
| Manual 1 | View Tronair 14-6807-6011-A1 Parts Manual |
| Shipping Information | |
|---|---|
| Product Weight | 20 lbs. |
| Product Dimensions | 26 x 24 x 13 in. |
| Freight NMFC | 127230 |
| Schedule B | 9026200000 |
| ECCN | EAR99 |
| Spare Parts | |
|---|---|
| H-2016-01 | Gauge, 0–300 psi (20.7 bar) with Rubber Boot |
| H-2016-09 | Valve, Hand Trigger |
| H-2016-10 | Disconnect, Quick |
| H-2016-13 | Hose, 10ft (4 km) long |
| H-2153 | Boot, Gauge |
| N-2009-04-S | Connector, Male |
| N-2210-02-S | Reducer, Pipe Thread (¼ x 1/8) |
| PC-1007 | Connector, High Pressure |
| PC-1073 | Valve, High Pressure Strut |
| PC-1074 | Cap, High Pressure Strut Valve |
| PC-1101 | Extension, Bent Metal |
| Z-3830-01 | Assembly, Replacement Box |
