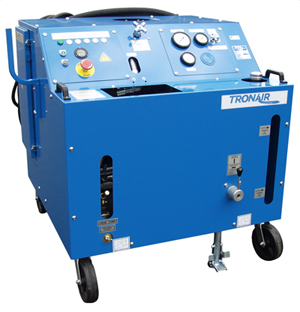

The Tronair 5431 Hydraulic Power Unit (HPU) is designed for use on the Dash 8 aircraft.
Specifications
- Hydraulic Fluid: Skydrol or HyJet
- Maximum Pressure: 3,500 psi (241 bar)
- Maximum Flow: 11 gpm (42 lpm)
- Flow at Rated Pressure: 6.2 gpm (24 lpm)
- Motor: 15 HP (11.2 kW)
- Weight: 1,200 lbs. (544 kg)
| Alternate Models | |
|---|---|
| 5H30 | Previous Model Number |
| 5H310ZZ5 | 5 - HPU H - Bombardier Dash-8 100/300 Options (3500 PSI / 11 GPM / 15 HP) 3 - Skydrol 1 - CE Compliant 0 - Desert Sand ZZ - No Aircraft Couplers 5 - 200V 3 PH 50 HZ Input Voltage Required / 50' AC Input Cable Included H - Dash 8 100/300 Options dual system, 25 ft & 50 ft hoses, hourmeter, pyrometer, clogging indicator, aircraft couplings, spare filter element, no return valves |
| 5H311ZZ1 | Setup for 220-240V 3 phase 60 HZ input voltage - Single system and couplers for Dash 8 100 to 300 aircraft |
| 5H311ZZ2 | 5 - HPU H - Dash 8 100/300 Options 3 - Skydrol 1 - CE Compliant 1 - Tronair Blue ZZ - No Couplers Included 2 - 380-400V 3 PH 60 HZ Required / 50' AC Input Cable Included Standard Features: Split System 25 ft Hoses 50 ft Hoses Hourmeter Pyrometer Electric Filter Clogged Indicator Return Filter 30 Gallon Reservoir |
| 5H311ZZ8 | 5 - HPU H - Bombardier Dash-8 100/300 Options (3500 PSI / 11 GPM / 15 HP) 3 - Skydrol 1 - CE Compliant 1 - Tronair Blue ZZ - No Aircraft Couplers 8 - 415V 3 PH 50 HZ Input Voltage Required / 50' AC Input Cable Included H - Dash 8 100/300 Options dual system, 25 ft & 50 ft hoses, hourmeter, pyrometer, clogging indicator, aircraft couplings, spare filter element, no return valves |
| General Information | |
|---|---|
| Part # | 5H31 |
| Manufacturer | Tronair |
Customers also viewed
Laser Contamination Monitor - Skydrol
Ground Test Tool - B787
– 2,750-lb. Capacity
15 GPM, 3500 PSI, 25 HP
ILS, VOR, Marker Beacon, & VHF/UHF Communications Avionics Systems
AIRCRAFT COMPATIBILITY
| Compatible Aircraft* | |
|---|---|
| Bombardier | Dash 8-100 , Dash 8-200 , Dash 8-300 |
*This list is for general reference only and may not be entirely accurate for all aircraft. Please confirm all equipment meets the requirements of your aircraft with the owners/maintenance manuals prior to purchasing or using with your aircraft.
PRODUCT REVIEWS
This item does not have any reviews yet.
QUESTIONS & ANSWERS
Question:
What options are available to add to this unit?
Answer:
Available options for the 5H31 hydraulic power unit include:
- Voltage Monitor – Option G, H, I, J (Voltage-Specific)
- Electrical Reservoir Level – Option L
- Hand Pump – Option M
- Towing/Trailer Package – Option N
- Calibration Port – Option Q
- Electric Overtemperature – Option S
- 50' Hand Pump – Option X
- Return Sight Gauge – Option Y
- Return Back Pressure – Option 1
- Hand Pump (Large Displacement) – Option 7
Asked May 29, 2024
Question:
Does this unit include the aircraft couplers for the Dash 8-100 and 8-300 aircraft?
Answer:
No, these couplers are sold separately and would need to be quoted separately.
The compatible hydraulic coupling kit for this unit is KHC-3754.
Asked May 29, 2024
Question:
What features come standard with this unit?
Answer:
Standard features for the 5H31 hydraulic power unit (HPU) include:
- Split System
- 25' Hose
- 50' Hose
- Hourmeter
- Pyrometer
- Electric Filter Clogged Indicator
- Return Filter
- 30-Gallon Reservoir
Asked May 29, 2024
