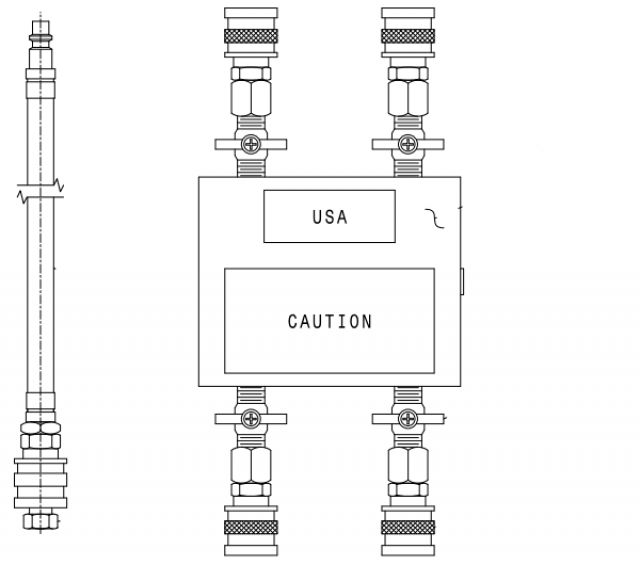

The manifold is a light weight portable unit containing one shop air inlet port and four valved exit ports. The unit comes complete with hoses and valves. The customer is responsible for the appropriate shop air inlet fitting and its installation.
The purpose of the air manifold iis to be a shop air distribution center. It provides, from a single source, four controllable air lines for the purpose of raising aircraft jacks with air/hydraulic pumps. It can also be used to operate pneumatic tools, pneumatic equipment, etc.
Specifications
- Weight: 10 lbs (4.5 kg)
- 140 psi (9.7 bar) maximum air pressure
- Four shut-off valves with quick disconnects
- Four 25 ft (7.6 m) long hoses with quick disconnects
| General Information | |
|---|---|
| Part # | K-4220 |
| Manufacturer | Tronair |
| Manual 1 | View Tronair K-4220 Manual |
| Shipping Information | |
|---|---|
| Shipping Weight | 19.2 lbs. |
| Shipping Dimensions | 16.6 x 16.5 x 9 in. |
| Freight NMFC | 11790 |
| Schedule B | 8431200000 |
| ECCN | EAR99 |
| Spare Parts | |
|---|---|
| H-1173 | Valve, Needle |
| K-1183 | Hose, 25 ft (7.6 m) |
| K-2101 | Block, Manifold |
| N-2413-02 | Plug, Female Thread Q.D. |
| N-2415-02 | Socket Shut-off, Female Thread |
Customers also viewed
Engine Compressor Washer Manifold Replacement Kit
Kit, Towbar Weldment Replacement (P)
Nose Adapter Jack Pad - For Axle Jack - Lear 23, 24, 25, 31, 35, 55, 60
Replacement Ram Seal Kit
Kit, Towbar Mach Tube Replacement (P)
Customers who bought this item also purchased
AIRCRAFT COMPATIBILITY
| Compatible Aircraft* | |
|---|---|
| Agusta | AW139 (AB139) , AW169 |
| Bell | 525 |
| Boeing |
727-100
,
727-200
,
737 Max
NOTE
Optional: Air Pump Manifold Kit – Controls 4 Jacks' Air Pumps from a Single Location
,
737-100
NOTE
Optional: Air Pump Manifold Kit – Controls All 4 Jacks from a Single Location
,
737-200
NOTE
Optional: Air Pump Manifold Kit – Controls All 4 Jacks from a Single Location
,
737-300
NOTE
Optional: Air Pump Manifold Kit – Control All 4 Jacks from a Single Location
,
737-400
NOTE
Optional Air Pump Manifold Kit – Control All 4 Jacks from a Single Location
,
737-500
NOTE
Optional: Air Pump Manifold Kit – Control All 4 Jacks from a Single Location
,
737-600
NOTE
Optional: Air Pump Manifold Kit – Control All 4 Jacks from a Single Location
,
737-700
NOTE
Optional Air Pump Manifold Kit – Control All 4 Jacks from a Single Location
,
737-800
NOTE
Optional Air Pump Manifold Kit – Control All 4 Jacks from s Single Location
,
737-900
NOTE
Optional: Air Pump Manifold Kit – Control All 4 Jacks from a Single Location
,
737-BBJ
NOTE
Optional Air Pump Manifold Kit – Control All 4 Jacks from a Single Location
,
737-BBJ2
NOTE
Optional: Air Pump Manifold Kit – Control All 4 Jacks from a Single Location
,
DC-9 Series 40
,
DC-9 Series 50
,
MD-80
,
P-8 Poseidon
|
| McDonnell Douglas | DC-9 Series 40 , DC-9 Series 50 , MD-80 |
*This list is for general reference only and may not be entirely accurate for all aircraft. Please confirm all equipment meets the requirements of your aircraft with the owners/maintenance manuals prior to purchasing or using with your aircraft.
