Alberth Aviation TC-36 Aircraft Tire Cage – Works on Tires Up to 35" x 11" x 18"
Create yours now for free.
Need a Quote?
The Alberth Aviation TC-36 aircraft tire cage is the first tire cage specifically designed for the aviation industry. Designed and tested to be OSHA and military-compliant, this tire cage protects aircraft maintenance personnel from injuries and prevents hangar and aircraft damage.
For larger tires, please view our Alberth TC-42.
Compatible Aircraft Tire Sizes
This unit works on tires up to 35" x 11" x 18".
Heavy-Duty Design Features
- Constructed of two 1/4" thick steel plates which offer 1/2" thick overall protection on four critical sides

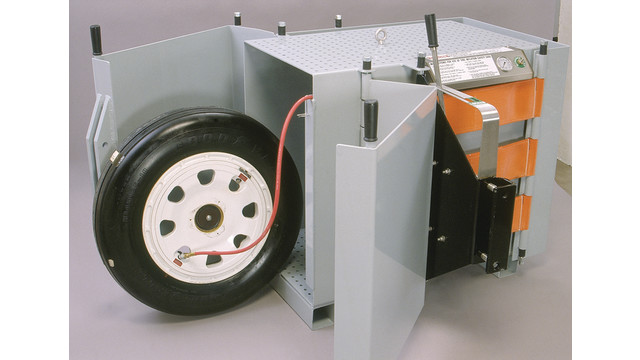

- Dual-clamshell door design provides easy-to-use access while offering uncompromised strength and protection
- 3/4" pin, nine-segment hinge design, protected by six 50,000-lb. safety straps

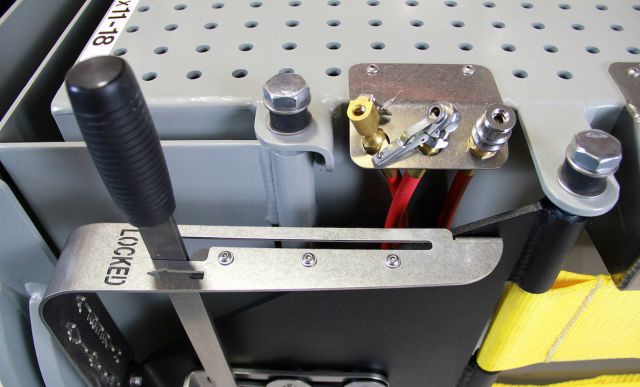

- Stainless steel dual 7/8" pin "bank vault"-style door latch and motion hardware
- Includes three quick-disconnect fill fittings, an internal hose, and a full-flow tire fill fitting
- Custom manifold provided triple over-pressurization safety
- 4" ground clearance allows you to easily insert and remove the tire

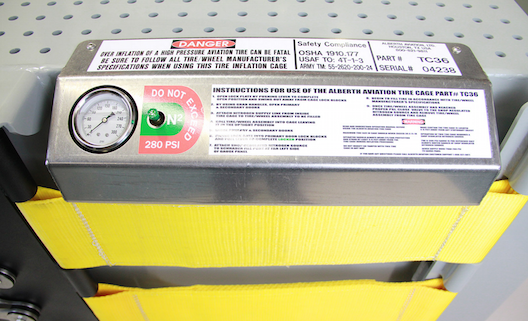

- External gauge panel and nitrogen fill port for hands-free tire inflation
- Enclosed container contains debris during over-inflation incidents
- Durable powder coat finish and stainless steel hardware
Safety Compliance
- OSHA Compliant: 1910.177
- USAF: Exceeds T.O. 4T-1-3
- Army: Exceeds TM 55-2620-200-24
Unit Dimensions
- Length: 50" (127 cm)
- Width: 48" (122 cm)
- Height: 40" (102 cm)
- Weight: 1,150 lbs (521 kg)
Why Should You Use an Aircraft Tire Cage?
| Alternate Models | |
|---|---|
| TC36 | Alternate Model Number |
| General Information | |
|---|---|
| Part # | TC-36 |
| Manufacturer | Alberth |
| Manual 1 | View TC-36 User Manual |
| Shipping Information | |
|---|---|
| Schedule B | 7326908695 |
| ECCN | EAR99 |
| Specifications | |
|---|---|
| Color | Blue, Grey, White |
| Dimensions | 50 × 48 × 44 in |
| Weight | 1150 lbs |
Customers also viewed
Customers who bought this item also purchased
AIRCRAFT COMPATIBILITY
| Compatible Aircraft* |
|---|
PRODUCT REVIEWS
QUESTIONS & ANSWERS
The Alberth Aviation TC-36 Aircraft Tire Cage stands out as the aviation industry’s only tire cage specifically designed and tested for aircraft applications. Built from 1/4" steel plates in a dual clamshell design, it provides 1/2" of protection on four sides while allowing air release through vented panels. Its superior containment, heavy-duty hinges, and triple overpressurization safety manifold deliver unmatched protection and ease of use.
The Alberth Aviation TC-36 Aircraft Tire Cage is designed to safely accommodate aircraft tires up to 36” (91 cm) in height. Its durable steel construction provides reliable containment during inflation and servicing, helping ensure technician safety while handling high-pressure tires. This size range makes it suitable for use with most general aviation and light turbine aircraft.
The Alberth Aviation TC-36 Aircraft Tire Cage is rated for up to 400 PSI (27.6 bar), allowing it to safely contain and control tire inflation at the high pressures often required for aircraft operations. The system includes a triple overpressurization safety manifold, ensuring reliable pressure management even during unexpected inflation surges.
The TC-36’s dual clamshell design allows for quick, hands-free tire loading and unloading while maintaining exceptional structural integrity. Each side is reinforced by nine-segment hinges and 3/4" hinge pins that evenly distribute stress, ensuring consistent containment during overinflation. This setup combines user accessibility with uncompromised safety under extreme pressure conditions.
The Alberth Aviation TC-36 tire cage is engineered to contain debris and deflect force in the event of a tire failure during inflation. Its enclosed steel structure and internal safety straps absorb and redirect pressure while the vented roof and floor allow safe air dispersion. This design prevents injuries and protects valuable hangar equipment from damage.
Yes, the TC-36 Aircraft Tire Cage features an external gauge panel and nitrogen fill port, enabling safe, hands-free inflation with either nitrogen or standard air systems. This feature enhances operator safety by keeping personnel clear of the cage during pressurization while maintaining precise control over tire pressure.
By ensuring safe and efficient tire servicing, the TC-36 Aircraft Tire Cage helps reduce Aircraft on Ground (AOG) time. Its robust build minimizes the risk of damage during operation, while its corrosion-resistant powder-coated finish and stainless steel hardware reduce the need for frequent maintenance.
The user-friendly design of the TC-36 features a 4” ground clearance for simple tire loading, external controls for hands-free inflation, and a “bank vault” dual-pin door latch for secure operation. These design elements allow technicians to safely and efficiently service tires without compromising productivity.
Each TC-36 undergoes destructive testing to verify its ability to safely contain catastrophic tire failures under maximum inflation pressure. Alberth Aviation shares these tests publicly, demonstrating the cage’s superior containment capabilities and reinforcing confidence in its performance for high-risk aircraft maintenance applications.
