The Malabar 250 Turbine Oil Dispenser is a 2-gallon fluid dispenser used to service various commercial aircraft engines, APUs, CSDs, and IDGs. The hand pump dispenser consists of a reservoir, pump assembly, filter assembly, and a fluid delivery hose.
Standard Features
- Durable, lightweight, and portable 2-gallon capacity reservoir with integral carrying handle made from specially formulated "HS" cross-linked polyethylene material that is impervious to petroleum-based fluids, hydraulic fluids, UV, solvents, and cleaning solutions. "HS" units maintain a very high impact strength even at sub-zero temperatures and are available in several colorfast colors for easy identification of the proper fluid type.
- Manual hand pump and inline filter to dispense clean filtered aircraft fluids into aircraft systems
- Large fill port
- 1-year standard warranty
- Fully enclosed shipping container
Specifications
- Fluid Type: Turbine Oil
- Fluid Capacity: 2 gallons (7.6 liters)
- Unit Displacement per Stroke: 2.5 cu. in. (41 cc)
- Maximum Pump Outlet Pressure: 100 psig (7 kg/sq cm)
- Standard Hose Length: 84" (2,134 mm)
- Standard Filter Rating: 2-3 micron nominal
- "HS" Tank Net Weight: 12 lbs. (5.4 kg)
- Stainless Steel Tank Net Weight: 18 lbs. (8.2 kg)

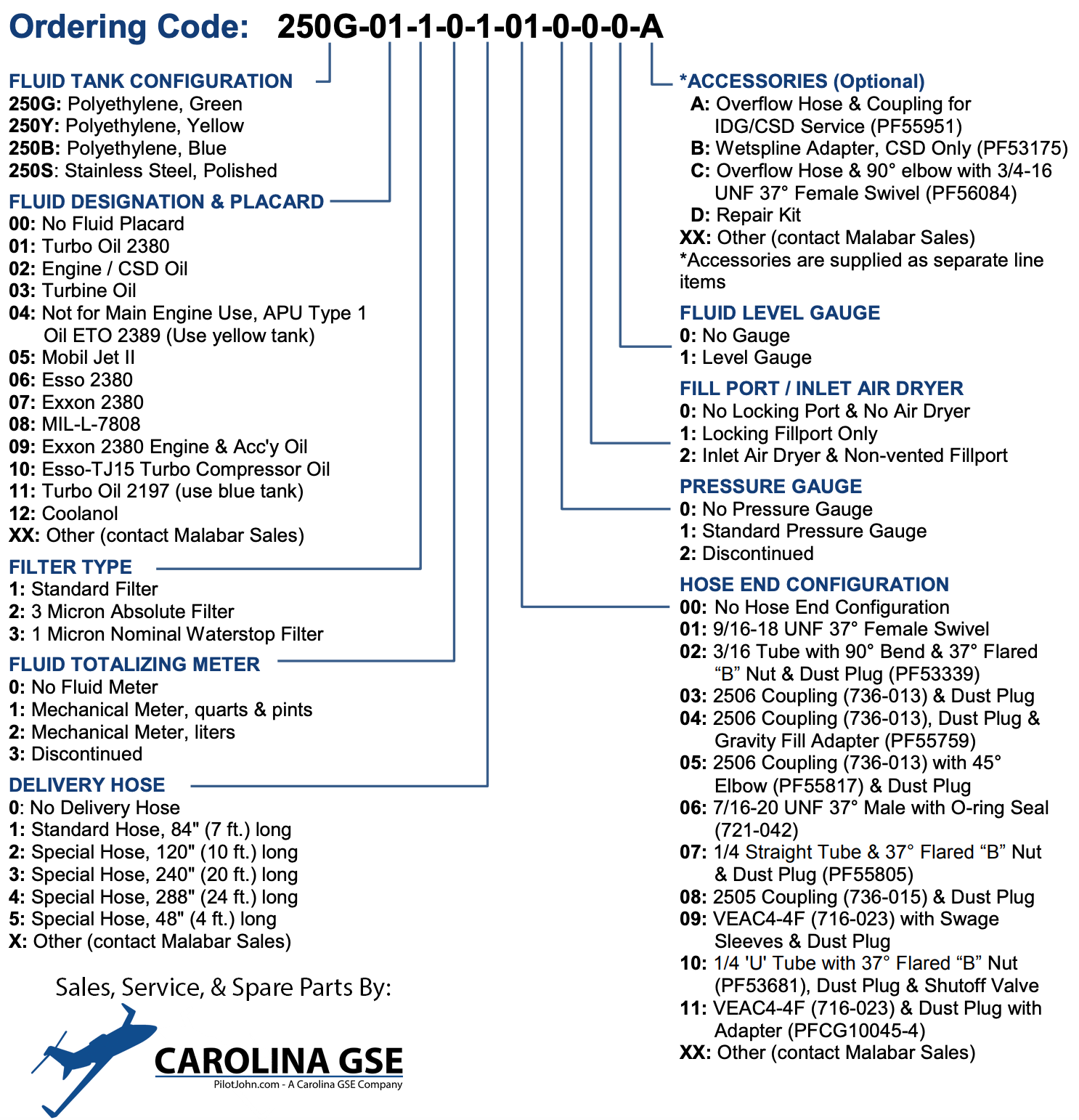

How to Order the Correct Part Number
| Alternate Models | |
|---|---|
| 53361 | Alternative Model Number for Malabar Engine Oil Unit |
| PF53338-2P | Inactive |
| PF53338-UAL2A | 250G-01-3-1-1-02-0-0 |
| PF53338P | 250G-00-1-0-1-02-0-0 |
| PF53338UAL2P | 250G-01-1-0-1-02-0-0 |
| PF53361-100PWS | 250G-05-3-0-1-04-0-1 |
| PF53361-101PWS | 250G-00-3-0-1-03-1-0 - Check valve set at 30 psig |
| PF53361-102P | 250G-05-1-0-2-04-0-0 |
| PF53361-103P | 250G-05-1-1-2-03-0-0 |
| PF53361-104PWS | 250Y-11-3-1-2-04-0-0-0 |
| PF53361-105P | 250G-00-2-1-1-01-0-0-0 |
| PF53361-106P | 250G-03-2-1-1-02-0-0-1 |
| PF53361-107 | 250S-05-1-2-2-04-1-0-1 |
| PF53361-108PWS | 250G-00-3-0-1-06-0-0-1 |
| PF53361-109PWS | 250G-05-3-0-1-03-1-1-0 |
| PF53361-10P | 250G-00-1-0-1-05-0-0 |
| PF53361-110P | 250Y-01-1-0-5-02-0-0-0 |
| PF53361-111PWS | 250G-00-3-0-1-04-0-0-0 |
| PF53361-112P | 250G-01-1-0-1-04-0-0-0 |
| PF53361-113P | 250G-00-2-0-1-01-0-2-0 |
| PF53361-114P | 250G-00-1-0-0-00-0-0-0 |
| PF53361-115P | 250G-05-1-0-5-08-0-0-0 |
| PF53361-116PWS | 250Y-00-3-1-2-04-0-0-0 |
| PF53361-117P | 250G-01-1-0-2-03-0-0-0 |
| PF53361-118PWS | 250G-05-3-1-1-04-0-0-0 |
| PF53361-119P | 250G-05-1-0-1-03-0-0-0 |
| PF53361-11PWS | Special Made Unit |
| PF53361-120 | 250S-02-2-1-1-04-0-1-0 |
| PF53361-121P | 250G-05-2-0-1-01-0-2 |
| PF53361-122P | 250G-05-1-0-1-01-0-1-0 |
| PF53361-123P | 250G-02-1-1-2-01-0-1-0 |
| PF53361-124 | 250S-00-1-1-1-01-0-1-0 |
| PF53361-125P | 250Y-00-1-1-1-03-0-1-0 |
| PF53361-126 | 250S-11-1-1-1-01-1-1-0 |
| PF53361-127 | 250S-02-1-0-4-01-0-0-0 |
| PF53361-128P | 250G-02-1-0-1-03-0-2-0 |
| PF53361-12P | 250G-00-1-1-1-03-0-0-A |
| PF53361-12PWS | 250G-00-3-1-1-03-0-0-A |
| PF53361-13P | 250G-00-1-0-0-00-0-1 |
| PF53361-14P | 250G-00-1-1-4-03-0-0 |
| PF53361-14PWS | 250G-00-3-1-4-03-0-0 |
| PF53361-15P | 250G-05-1-0-1-03-1-0 |
| PF53361-15PWS | 250G-05-3-0-1-03-1-0 |
| PF53361-16P | 250G-03-1-0-1-01-0-0 |
| PF53361-16PWS | 250G-03-3-0-1-01-0-0 |
| PF53361-17P | 250G-06-1-0-1-03-0-0-A |
| PF53361-18P | 250G-00-1-0-5-03-0-0 |
| PF53361-19LPG | Inactive |
| PF53361-1P | 250G-00-1-1-1-03-0-0 |
| PF53361-1PWS | 250G-00-3-1-1-03-0-0 |
| PF53361-21P | See PF53361P |
| PF53361-22P | 250G-00-X-0-X-03-0-0-0 - X - Both are for special customer supplied hose inline filter |
| PF53361-23P | No Longer Available |
| PF53361-24P | 250G-00-1-0-4-05-0-0 |
| PF53361-25P | 250G-07-1-1-1-04-0-0 |
| PF53361-26PWS | 250G-06-3-0-2-04-0-0 |
| PF53361-27P | 250Y-04-1-0-1-08-0-0 |
| PF53361-28PWS | 250G-08-3-0-2-01-0-0-0 |
| PF53361-29P | 250G-00-1-0-1-01-0-0-C |
| PF53361-2P | 250G-00-1-1-1-04-0-0 |
| PF53361-2PWS | Recommended for use with engine oil on a wide range of aircraft including Boeing and Airbus - 250G-00-3-1-1-04-0-0 |
| PF53361-30PWS | 250G-XX-3-0-1-03-0-0 - XX-MOBIL 254 placard |
| PF53361-30WS | 250S-XX-3-0-1-03-0-0 - XX-MOBIL 254 placard |
| PF53361-31PWS | 250G-00-3-1-1-04-0-2 |
| PF53361-32P | 250G-XX-1-0-4-08-0-0 |
| PF53361-33P | 250Y-00-1-0-1-01-0-0 |
| PF53361-34PWS | 250G-05-3-1-1-03-0-2 |
| PF53361-35P | 250Y-05-1-1-4-03-0-0 |
| PF53361-36P | 250G-02-2-1-1-04-1-1 |
| PF53361-37P | 250G-00-1-2-1-01-0-0 |
| PF53361-38P | 250G-XX-1-0-5-08-0-0 |
| PF53361-39P | 250G-00-1-0-1-01-0-0 |
| PF53361-3P | 250G-00-1-0-1-06-0-0 |
| PF53361-3PWS | 250G-00-03-0-1-06-0-0-0 |
| PF53361-40P | 250G-02-2-0-1-03-0-1 |
| PF53361-41 | 250S-03-1-1-1-01-1-1 |
| PF53361-42P | 250G-00-1-1-1-01-1-0 |
| PF53361-43P | 250G-05-2-0-1-03-0-1 |
| PF53361-44P | 250G-02-1-0-1-04-0-0 |
| PF53361-45P | 250G-05-1-1-5-03-1-1 |
| PF53361-46P | 250G-05-1-0-2-01-0-0 |
| PF53361-47PWS | 250G-05-3-0-1-01-0-1 |
| PF53361-48 | 250S-11-1-1-2-01-0-0 |
| PF53361-49PWS | 250G-07-3-1-1-03-0-0 |
| PF53361-4AP | 250G-00-3-0-1-07-0-0 |
| PF53361-4P | Inactive |
| PF53361-50PWS | 250G-05-3-1-1-03-0-0 |
| PF53361-50WS | 250S-05-3-1-1-03-0-0 |
| PF53361-51P | 250G-02-1-0-2-01-0-0 |
| PF53361-52P | 250G-08-1-0-5-01-0-0 |
| PF53361-53P | 250G-01-1-0-1-01-0-1 |
| PF53361-55P | 250G-04-1-0-2-01-0-1 |
| PF53361-56P | 250G-XX-1-0-4-04-0-0 - XX-AEROSHELL 500 placard |
| PF53361-57P | 250Y-05-1-0-1-03-0-0 |
| PF53361-58P | 250G-00-1-0-2-04-0-2 |
| PF53361-59 | 250S-05-1-0-1-01-1-0 |
| PF53361-5AP | 250G-00-2-0-1-03-0-0 |
| PF53361-5P | Inactive |
| PF53361-60P | 250Y-00-1-0-1-03-0-0 |
| PF53361-61P | 250B-XX-1-0-1-01-0-2 - XX-PAO Servicing Unit placard |
| PF53361-62P | 250G-08-1-1-1-08-1-0 |
| PF53361-63 | 250S-00-1-1-2-01-1-2 |
| PF53361-64P | 250G-05-1-1-2-05-0-0 |
| PF53361-65P | 250G-XX-1-1-2-04-0-0 |
| PF53361-66P | 250Y-05-1-1-1-03-0-0 |
| PF53361-67P | 250G-05-1-1-1-06-0-1 |
| PF53361-68P | 250G-01-1-1-1-03-0-1 |
| PF53361-69P | 250Y-04-1-1-1-02-0-0 |
| PF53361-6P | 250G-00-1-0-3-03-0-0 |
| PF53361-6PWS | 250G-00-3-0-3-03-0-0 |
| PF53361-70P | 250G-05-1-0-1-10-0-0 |
| PF53361-71P | 250G-02-1-0-1-03-0-1 |
| PF53361-72P | 250G-03-1-0-1-10-0-0 |
| PF53361-76PWS | 250G-00-3-0-1-03-1-0 |
| PF53361-77WS | 250S-05-3-1-3-01-1-1-0 |
| PF53361-7P | 250G-00-1-0-3-03-0-0-A |
| PF53361-80PWS | 250Y-04-3-1-1-09-0-0-0 |
| PF53361-86PWS | 250G-05-3-2-2-04-1-2 |
| PF53361-89 | 250S-05-1-2-2-05-0-2 |
| PF53361-8P | 250G-00-1-0-1-03-0-0-A |
| PF53361-8PWS | 250G-00-3-0-1-03-0-0-A |
| PF53361-91P | 250G-05-1-1-1-08-0-0 |
| PF53361-92 | 250S-02-1-1-1-03-1-1 |
| PF53361-93 | 250S-02-1-1-1-03-1-1 - PF53361-92 & PF53361-93 ARE IDENTICAL |
| PF53361-94P | 250G-00-1-2-1-04-0-2-0 |
| PF53361-95P | 250Y-02-1-0-1-04-0-0 |
| PF53361-96 | 250S-05-2-1-2-03-1-2 |
| PF53361-97P | 250B-02-1-1-1-03-1-1 |
| PF53361-98P | 250G-07-1-1-1-07-0-0 |
| PF53361-99P | 250Y-01-1-1-2-04-1-2 |
| PF53361-9P | 250G-00-1-0-1-01-0-0-A |
| PF53361P | 250G-00-1-0-1-03-0-0 |
| PF53361PWS | 250G-00-3-0-1-03-0-0 |
| PF54100-2P | Special for B-2 |
| PF54100-3P | Special for B-2 |
| PF54100-4AAP | 250G-09-3-1-1-09-0-0 |
| PF54100-AA-2197 | 250G-XX-3-1-1-09-0-0 - XX-Exxon 2197 Turbo Oil placard |
| PF54100-AAP | 250G-09-3-0-1-09-0-0 |
| PF54100P | 250G-06-1-0-1-11-0-0 |
| PF54100PWS | Inactive |
| PF54124-13P | 250Y-13-1-0-1-06-0-0 |
| PF54124-TWAP | No Longer Available |
| PF54124-USAP | No Longer Available |
| PF55241-1P | 250G-10-1-1-1-10-0-0 |
| PF55241-2P | No Longer Available |
| PF55241-3P | 250G-00-1-0-5-10-0-0 |
| PF55241P | 250G-10-1-0-1-10-0-0 |
| PF55966-10P | 250B-05-1-1-1-04-0-1 |
| PF55966-11P | 250B-11-1-1-1-06-0-1 |
| PF55966-12PWS | 250B-11-3-0-2-04-0-0 |
| PF55966-14P | 250B-08-2-0-1-07-1-0-0 |
| PF55966-1P | 250B-11-1-1-1-03-0-0 |
| PF55966-21PWS | 250B-11-3-0-1-03-0-0 |
| PF55966-22PWS | 250B-11-3-1-1-04-0-0 |
| PF55966-23P | 250B-11-1-0-1-01-0-0 |
| PF55966-24PWS | 250B-05-3-1-5-04-1-2 |
| PF55966-25PWS | 250B-05-3-1-1-04-0-0 |
| PF55966-26P | 250B-11-1-1-5-03-0-0-0 |
| PF55966-27P | 250B-05-1-0-1-04-0-0-1 |
| PF55966-28PWS | 250G-00-3-1-1-03-1-0-0 |
| PF55966-29P | 250B-11-1-0-5-02-0-0-0 |
| PF55966-2P | 250B-05-1-1-1-03-1-2 |
| PF55966-30P | 250B-11-1-0-1-08-0-2-1 |
| PF55966-31P | 250B-01-1-0-2-03-0-0-0 |
| PF55966-32P | 250B-11-1-0-1-05-0-0-0 |
| PF55966-3P | 250B-05-1-0-1-01-0-0 |
| PF55966-4P | 250B-00-1-0-1-03-0-0 |
| PF55966-5PWS | 250B-11-3-0-1-09-0-0 |
| PF55966-6PWS | 250B-11-3-1-1-09-0-0 |
| PF55966-7P | 250B-XX-1-0-1-08-0-0 - XX-CSD Servicing, C5 placard |
| PF55966-9P | 250B-XX-2-0-4-01-0-0 - XX-OIL 254 only placard |
| PF56047PWS | 250G-12-3-0-1-01-0-2-1 |
| General Information | |
|---|---|
| Part # | 250 |
| Manufacturer | Malabar |
Customers also viewed
2-Gallon Engine Oil Service Unit – 23699 & 87257 Fluids
6 GPM, 3000 PSI, 5 HP
1 Quart & 1 Liter Turbine Oil O-C Gun
– Skydrol/HyJet Fluids
5-Gallon Turbine Oil Dispenser
AIRCRAFT COMPATIBILITY
| Compatible Aircraft* |
|---|
*This list is for general reference only and may not be entirely accurate for all aircraft. Please confirm all equipment meets the requirements of your aircraft with the owners/maintenance manuals prior to purchasing or using with your aircraft.
PRODUCT REVIEWS
5/5
by Mark LaNier, an Airline in Arizona
01/14/2021 04:43:14 PM
Customer service was exceptional. Quote on item was on target for what we wanted to spend. We are using the unit to perform our 737-2A checks. It is performing quite well and MX is very happy with the results. Unit is easy to clean and prepare for the next use. Glad we got it.
QUESTIONS & ANSWERS
Question:
What O-ring is compatible with this unit?
Answer:
The replacement O-ring for the Malabar 250 - 2-Gallon Turbine Oil Dispenser is part # 55925-120.
Asked August 1, 2023
Question:
Which gasket is compatible with this turbine oil dispenser?
Answer:
The replacement gasket for the Malabar 250 - 2-Gallon Turbine Oil Dispenser is part # PF55672.
Asked August 1, 2023
Question:
What is the replacement filter for this turbine oil dispenser?
Answer:
The replacement filter for the Malabar 250 – 2-Gallon Turbine Oil Dispenser is part # 481-005.
Asked August 1, 2023
Question:
Which fluid tank is compatible with this unit?
Answer:
The replacement fluid tank for the Model 250 - 2-Gallon Turbine Oil Dispenser is PF55838-3.
Asked August 21, 2023
Question:
What is the part number for the replacement nameplate for this unit?
Answer:
The part number for the replacement nameplate for the Malabar 250 - 2-Gallon Turbine Oil Dispenser is 55997-2.
Asked August 21, 2023
Question:
What is the part number for the replacement placard plate for this unit?
Answer:
The part number for the replacement placard plate for the Model 250 - 2-Gallon Turbine Oil Dispenser is PF55859
Asked August 21, 2023
Question:
What is the replacement filter element for this unit?
Answer:
The replacement filter element for this turbine oil dispenser is 481-068.
Asked September 14, 2023
Question:
Which oil servicing coupler is compatible with this unit?
Answer:
The replacement oil servicing coupler for the Malabar 250 turbine oil dispenser is 736-013.
Asked September 18, 2023
