Tronair 01-0570-0010 – Towbar Head Attachment for Piaggio P-180 Avanti Aircraft (CE)
In Stock
Ready to ship tomorrow if you order in the next 14 hours and 25 minutes (2pm EST)
Don't have an account?
Create yours now for free.
Create yours now for free.
CofC and 8130 available at no cost
Worldwide shipping available
Need a Quote?

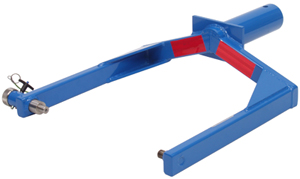

The Tronair 01-0570-0010 Towbar Head Attachment is specifically designed for use with Tronair's multi-head towbars (01-1201-0010, 01-1202-0000, 01-1215-0000, 01-1216-0000, and 01-1290-0100) for towing the Piaggio P-180 Avanti aircraft.
The towbar head attachment uses machined hooks to interface with the aircraft tow point.
Standard Features
- Sturdy welded steel construction
- Positive locking to the towbar via a ball-lock T-pin
- CE marked
- Durable powder-coat finish (Tronair Blue)
Specifications
- Maximum Aircraft Gross Weight: 11,600 lbs. (5.2 metric tons)
- Length: 25.4" (64.5 cm) – from centerline of attachment to centerline of aircraft interface
- Width: 21.5" (54.6 cm) – overall
- Height: 6.5" (16.6 cm)
- Weight: 29.5 lbs. (13.4 kg)
| General Information | |
|---|---|
| Part # | 01-0570-0010 |
| Manufacturer | Tronair |
| NSN | 1730015367367 |
| Manual 1 | View Tronair 01-0570-0010 Manual |
| Shipping Information | |
|---|---|
| Shipping Weight | 34 lbs. |
| Shipping Dimensions | 33 x 27 x 7 in. |
| Freight NMFC | 186980 |
| Schedule B | 8716900000 |
| ECCN | EAR99 |
| Spare Parts | |
|---|---|
| B-108 | Sliding Pin |
| G-1300-19040 | Roll Pin, 3/16" diameter x 1/2" long |
| G-1310-0415 | Ball Lok-T Pin |
| G-1351-04 | Pop Rivet, 1/8" diameter x 1/4" long |
| H-1026*07.0 | Lanyard Assembly |
| K-1129 | Kit, Sliding Pin Replacement |
| K-1308 | Kit, Ball Lok-T Pin Replacement |
| Z-2655 | Head Weldment |
Customers also viewed
Towbar Head Attachment with Radial Shear Protection – Select Bombardier & Hawker Aircraft
Towbar Head Attachment for Embraer EMB-110 Aircraft
– Select Beechcraft Aircraft
Towbar Head Attachment for Select Eurocopter Aircraft
– Dassault Falcon Aircraft
Customers who bought this item also purchased
AIRCRAFT COMPATIBILITY
| Compatible Aircraft* | |
|---|---|
| Piaggio |
P-180 Avanti
NOTE
This towbar head is required for the Multi-Head Towbar (01-1202-0000).
|
*This list is for general reference only and may not be entirely accurate for all aircraft. Please confirm all equipment meets the requirements of your aircraft with the owners/maintenance manuals prior to purchasing or using with your aircraft.
PRODUCT REVIEWS
5/5
by Nathan G., an Air Cargo Operation in PA
03/18/2022 11:08:31 AM
having the interchangeable heads for Tronair 01-1202-0000 is a very nice system for our fleet. we can easily switch between lear and piaggio heads for quick movements of our operations. fits and functions as expected on our Piaggio P180.
