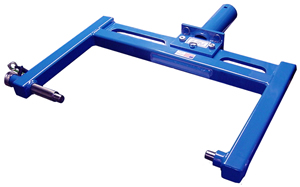

Tronair 01-0599-0010 – Sikorsky Towbar Head Attachment with Axial Shear Protection (CE)
In Stock
Ready to ship today if you order in the next 12 hours and 15 minutes (2pm EST)
Don't have an account?
Create yours now for free.
Create yours now for free.
CofC and 8130 available at no cost
Worldwide shipping available
Need a Quote?
The Tronair 01-0599-0010 Towbar Head Attachment is designed for use with Tronair’s multi-head towbars (models 01-1201-0010, 01-1202-0000, 01-1215-0000, 01-1216-0000, and 01-1290-0100) for towing the Sikorsky CH-148, H-92 Superhawk, and S-92 helicopters. This towbar head is equipped with axial shear protection to protect the nose gear during towing operations.
The towbar head attachment uses a sliding pin/stationary pin arrangement to interface with the aircraft tow point.
Standard Features
- Sturdy welded steel construction
- Positive locking to the towbar via a ball-lock T-pin
- CE marked
- Durable powder-coat finish (Tronair Blue)
Specifications
- Maximum Aircraft Gross Weight: 7,500 lbs. (3.4 metric tons)
- Width: 31.7” (80.5 cm) – at the sliding pin
- Length: 31” (78.7 cm)
- Height: 4” (10.2 cm)
- Weight: 58.5 lbs. (26.5 kg)
| Alternate Models | |
|---|---|
| 01-0599-0000 | Previous Model Number |
| General Information | |
|---|---|
| Part # | 01-0599-0010 |
| Manufacturer | Tronair |
| Manual 1 | View Tronair 01-0599-0010 Parts Manual |
| Shipping Information | |
|---|---|
| Shipping Weight | 69 lbs. |
| Shipping Dimensions | 42 x 38.5 x 9 in. |
| Freight NMFC | 186980 |
| Schedule B | 8716900000 |
| ECCN | EAR99 |
| Spare Parts | |
|---|---|
| G-1150-103503 | Screw, Hex Head Machine, #10-32 x 3/8" long |
| G-1155-109216 | Screw, 5/8" diameter Socket Head Shoulder |
| G-1202-1090 | Stopnut, ½-13 Elastic |
| G-1250-1100N | Flatwasher, 5/8 Narrow |
| G-1307-01 | Pin, Shear |
| G-1310-0415 | Pin, Ball Lok-T, ¼" diameter x 1½" long |
| G-1351-04 | Rivet, 1/8 Open-end Steel |
| H-1026*07.0 | Assembly, Lanyard |
| H-1724-33 | Bushing, Head Press Fit |
| H-1725-44 | Bushing, Headless Press Fit |
| K-1308 | Kit, Ball Lok-T Pin Replacement; consists of: |
| R-2433 | Pin, Sliding |
| Z-7086-01 | Weldment, Head |
| Z-7087-01 | Machining, Shear Plate |
Customers also viewed
Towbar Head Attachment with Nose Landing Gear Protection – Embaer Phenom 300 Aircraft
Towbar Head Attachment for Eclipse 500 Aircraft
Towbar Head Attachment for Hawker 4000 Aircraft
Towbar Head Attachment for Dassault Falcon 7X & 8X Aircraft
for Challenger 300 & 350 Aircraft
Customers who bought this item also purchased
AIRCRAFT COMPATIBILITY
| Compatible Aircraft* | |
|---|---|
| Sikorsky | CH-148 , H-92 Superhawk , S-92 |
*This list is for general reference only and may not be entirely accurate for all aircraft. Please confirm all equipment meets the requirements of your aircraft with the owners/maintenance manuals prior to purchasing or using with your aircraft.
