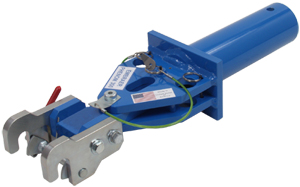

Tronair 01-0604-0000 – Phenom 300 Towbar Head Attachment without Nose Landing Gear Protection (CE)
Item Superseded
This item has been discontinued or is no longer available.
It has been replaced by Tronair 01-0606-0000 (Qty 1)
CofC and 8130 available at no cost
Worldwide shipping available
Need a Quote?
The Tronair 01-0604-000 Towbar Head Attachment is designed for use with Tronair's multi-head towbars (models 01-1201-0010, 01-1202-0000, 01-1215-0000, 01-1216-0000, and 01-1290-0100) for towing the Embraer Phenom 300 aircraft. The towbar head uses machined tow hooks to interface with the aircraft's tow point.
This unit does not include nose landing gear (NLG) protection. The towbar head attachment for this aircraft with NLG protection is part number 01-0606-0000.
Standard Features
- Sturdy welded steel construction
- Positive locking to the towbar via a ball-lock T-pin
- CE marked
- Durable powder-coat finish (Tronair Blue)
Specifications
- Maximum Aircraft Gross Weight: 17,526 lbs. (7.9 metric tons)
- Width: 6" (15.2 cm)
- Length: 21.4" (54.5 cm) – overall
- Height: 4" (10.2 cm)
- Weight: 14.3 lbs. (6.5 kg)
| General Information | |
|---|---|
| Part # | 01-0604-0000 |
| Manufacturer | Tronair |
| Shipping Information | |
|---|---|
| Freight NMFC | 186980 |
| Schedule B | 8716900000 |
| ECCN | EAR99 |
Customers also viewed
Towbar Head Attachment with Nose Landing Gear Protection – Embaer Phenom 300 Aircraft
for Series 500 & 600 Towbar Heads
Towbar Head Attachment with Radial Shear Protection – Select Challenger Aircraft
Multi-Head Aircraft Towbar, 66,000-lb. Capacity
Single-Phase Ground Power Unit – 50/60 Hz, 600A Continuous, 1200A Peak Start
Customers who bought this item also purchased
Towbar Head Attachment with Radial Shear Protection – Select Challenger Aircraft
AIRCRAFT COMPATIBILITY
| Compatible Aircraft* | |
|---|---|
| Embraer |
Phenom 300
NOTE
This towbar head is required for use with the Multi-Head Towbar (01-1202-0000).
|
*This list is for general reference only and may not be entirely accurate for all aircraft. Please confirm all equipment meets the requirements of your aircraft with the owners/maintenance manuals prior to purchasing or using with your aircraft.
