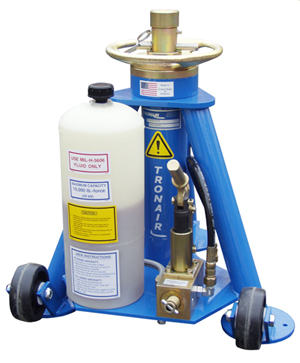

The Tronair 02-0520C0111 is a 5-Ton (10,000 lb) hydraulic aircraft tripod jack engineered to lift aircraft from the forward fuselage or main wing jacking points during maintenance, inspections, and ground operations. With a 20" (50.8 cm) closed height and 38" (96.5 cm) maximum extended height, it accommodates a range of aircraft fuselage and wing jacking point heights. CE-marked for compliance with European aviation safety standards. OEM-specified for Cessna Bravo, Citation CJ1, Citation CJ2 and others. Also approved for Grob G120A, G120TP.
Standard Features
- Hand pump with built-in pressure relief valve
- Threaded rams with improved handwheel-style safety nut
- Quick-rising center extension for rapid initial lift
- Easy-access filler/breather cap
- Heavy-duty wheels for easy maneuverability
- Hydraulic fluid: MIL-PRF-5606
- ¾" (2 cm) spherical radius cup jack pad
- CE marked
- Durable powder-coat finish (Tronair Blue)
Technical Specifications
- Rated Capacity: 10,000 lbs (4536 kg)
- Operating Temperature: −4°F to 122°F (−20°C to 50°C)
- Air Supply Requirements:
- Minimum: 25 PSI (1.72 bar)
- Recommended: 40 PSI (2.75 bar)
- Maximum: 125 PSI (8.6 bar)
- Pressure Relief Setting: 2,500 + 250/−0 PSIG (172.4 + 17.2/−0 bar)
- Noise Level: 64 dB(A) at a distance of 120" (304.8 cm) at an inlet pressure of 100 PSI (6.9 bar)
- Minimum Closed Height: 20" (50.8 cm)
- Maximum Height Obtainable: 38" (96.5 cm)
- Hydraulic Fluid: MIL-PRF-5606
- Jack Pad: ¾" (2 cm) spherical radius cup
- Finish: Durable powder coat (Tronair Blue)
Safety Features
- Ram Lock Nut: Prevents the lowering of the ram. The ram lock nut must be lowered as the aircraft is being lifted. Ram lock nuts must be kept within 2" of the stop while raising the aircraft.
- Hold-to-Run Air Valve: Requires the operator to hold the air valve lever to raise the ram using the air pump. Releasing the air valve lever stops the upward movement of the ram.
- Lock Nut Retention Ring: Prevents the lock nut from being unscrewed from the second stage.
- Pressure Relief Valve: Prevents overload during raising operations.
Aircraft Applications
The 02-0520C0111 is OEM-approved for the following aircraft types:
- Cessna: Bravo, Citation CJ1, Citation CJ2, Citation CJ3, Citation Encore 560 and 8 more
- Grob: G120A, G120TP
- Bombardier: Learjet 60
- Bell: 214, 214ST, 222, 230, 430
This list reflects aircraft for which the manufacturer has specifically approved this jack. Additional applications may be possible — always confirm jacking capacity, adapter requirements, and placement procedures with the aircraft maintenance manual before use.
Need your Tronair 02-0520C0111 5-ton tripod jack serviced, repaired, or load tested?
Pilot John is an authorized Tronair distributor and factory-authorized Tronair service center. Every jack ships new from our warehouse with Certificates of Conformance (CofC) and FAA Form 8130-3 documentation available at no additional cost. Need jack service, load-testing, or repair? Pilot John handles that too as an OEM-trained GSE service center. For more information or to request service, see our Service Center page, and see our article on why jack load testing matters. Pilot John also operates an ISO-17025 calibration center for all of your tooling and equipment calibration needs — learn more here.
| Alternate Models | |
|---|---|
| 02-0520-0100 | Previous Model Number |
| 02-0520-0110 | Previous Model Number |
| 02-0520C0110 | Previous Model Number (CE) |
| 02C0520C0111 | Spring Loaded Casters (Factory Installed) |
| General Information | |
|---|---|
| Part # | 02-0520C0111 |
| Manufacturer | Tronair |
| Manual 1 | View Tronair 02-0520C0111 Parts and Operation Manual |
| Shipping Information | |
|---|---|
| Shipping Weight | 150 lbs. |
| Shipping Dimensions | 25 x 21 x 25 in. |
| Freight NMFC | 186600 |
| Schedule B | 8425420000 |
| ECCN | EAR99 |
| Specifications | |
|---|---|
| Capacity | 5 tons |
| Closed Height | 20" (51 cm) |
| Fully Extended | 38" (97 cm) |
| Hydraulic Extension | 12" (30 cm) |
| Mechanical Extension | 6" (15 cm) |
| Single (S) or Multi (M) Stage | M |
| Weight | 90 lbs. (41 kg) |
| Spare Parts | |
|---|---|
| G-1100-105006 | Bolt, Hex Head, Grade 5, ¼-20 x ¾" Long |
| G-1100-107010 | Bolt, Hex Head, Grade 5, 3/8-16 x 1" Long |
| G-1100-109526 | Bolt, Hex Head, ½-20 x 2¾" Long |
| G-1151-106205 | Screw, Socket Head Cap, 5/16-18 x 5/8" Long |
| G-1203-1095 | Jamnut, ½-20 Elastic |
| G-1250-1050N | Flatwasher, ¼ Narrow |
| G-1251-1070R | Lockwasher, 3/8 Regular |
| G-1307-0418 | Pin, ¼" Diameter x 1.8" Long |
| G-1318-0825 | Pin, ½" Diameter x 2.5" Long “D” |
| H-1009-01 | Assembly, Pump Handle |
| H-1045 | Breather |
| H-1516-08 | Clamp, 2 Ear Hose |
| H-2334 | Locknut |
| HC-1948 | Pump, Hydraulic Hand |
| HC-2000-331 | O-Ring |
| HC-2021-01 | Ring, Backup |
| HC-2328 | Reservoir, Translucent |
| HJ-512 | Ring, Guide |
| HJ-513 | Plate, Mounting |
| HJ-522-01 | Assembly, Ram (includes seals) |
| HJ-526-01 | Extension |
| HJ-532-01 | Pad, Jack |
| HJ-532-02 | Pad, Jack |
| HJ-536 | Ring, Protection |
| K-1049 | Kit, Ram Seal Replacement |
| K-1061-04 | Kit, Reservoir Replacement |
| K-1334 | Kit, Jack Weldment Replacement |
| N-2001-08-S-B | Elbow, Straight Thread |
| N-2003-06-S | Elbow, 3/8 JIC x ¼ NPT |
| N-2053-05-S-B | Plug, Hex Head w/o O-ring, SAE #6 |
| N-2653-01-S-B | Elbow, 90º Male, ¼ Hose x SAE #4 |
| N-2788-02-S-B | Elbow, 90º |
| TF-1043-03*15.0 | Assembly, Hose, 15" Long |
| TF-1047-01*06.0 | Hose, ¼ Gray x 6" Long |
| TF-1047-01*09.0 | Hose, ¼ Gray x 9" Long |
| U-1002 | Wheel |
| V-1001 | Label, Made in USA |
| V-1003 | Label, Serial Number |
| V-1016 | Label, Capacity 10,000 lbs |
| V-1102 | Label, Use MIL-PRF-5606 |
| V-1198-02 | Label, Tronair |
| V-1775 | Label, Pump Force |
| V-1776 | Label, Down |
| V-1805 | Label, ISO General Danger |
| V-1819 | Label, Hydraulic Jack Caution |
| V-1820 | Label, Hydraulic Jack Instruction |
| Z-5031-01 | Weldment, Jack |
