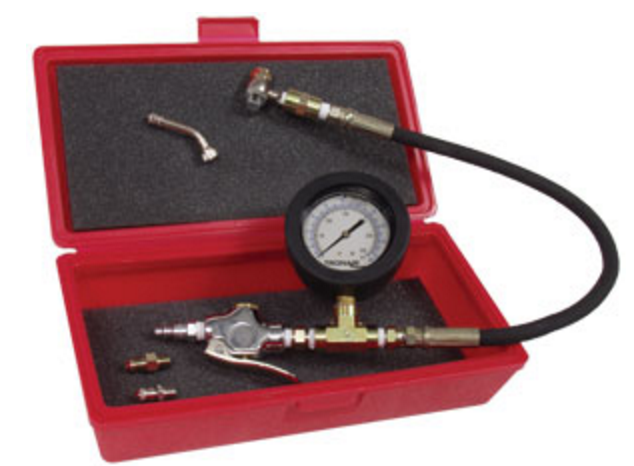

Tronair 14-6807-6011-A2 – Aircraft Tire Pressure Gauge with 18" Hose, 0 to 90 psi

The Tronair 14-6807-6011-A2 is an aircraft tire pressure gauge with a pressure range of 0 to 90 psi (6.2 bar) and an 18" long hose. This unit is used to inflate tires with nitrogen.

Features

• Certification documents are provided with all gauges
• Service gauges are protected by a rubber boot
• Service gauges are liquid-filled to maintain accuracy
• All gauges require annual calibration
• Storage container included

Specifications

• Regulator Gauge Accuracy: ASME Grade B 3-2-3
• Gauge Accuracy: +/- Full Scale 1.5%
• Digital Gauge Accuracy: +/- Full Scale 0.25%
• Pressure Range: 0 to 90 psi (0 to 0.41 bar)
• Hose Length: 18" (46 cm)
• Increments: 2 psi (0.14 bar)

Calibration Info

The Certificate of Calibration supplied for the gauge on this unit contains the calibration data for the actual instrument calibrated, along with the calibration date of the standard used to perform the calibration check. The due date for instrument recalibration should be based on the date the instrument was placed in service in your facility. Recalibration should be done on a periodic basis as dictated by the end user's quality system or other overriding requirements.
