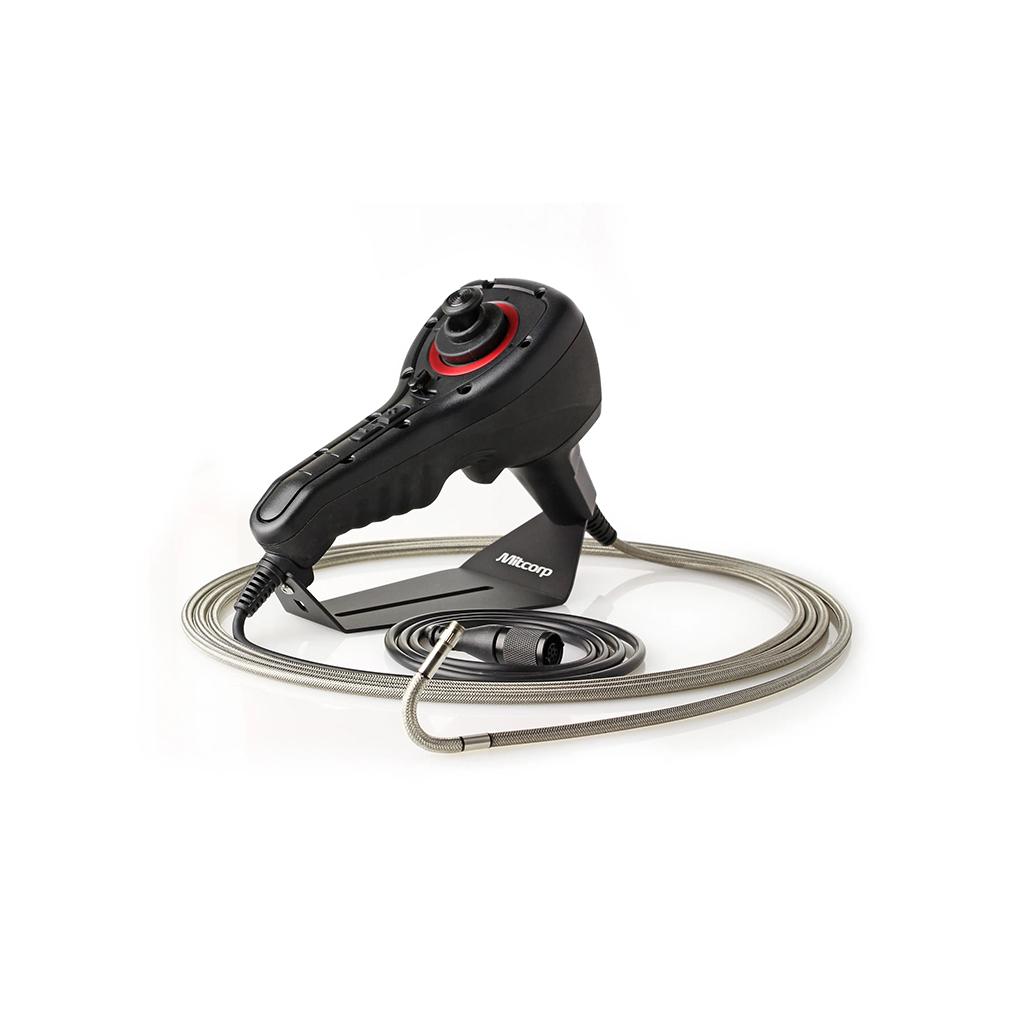

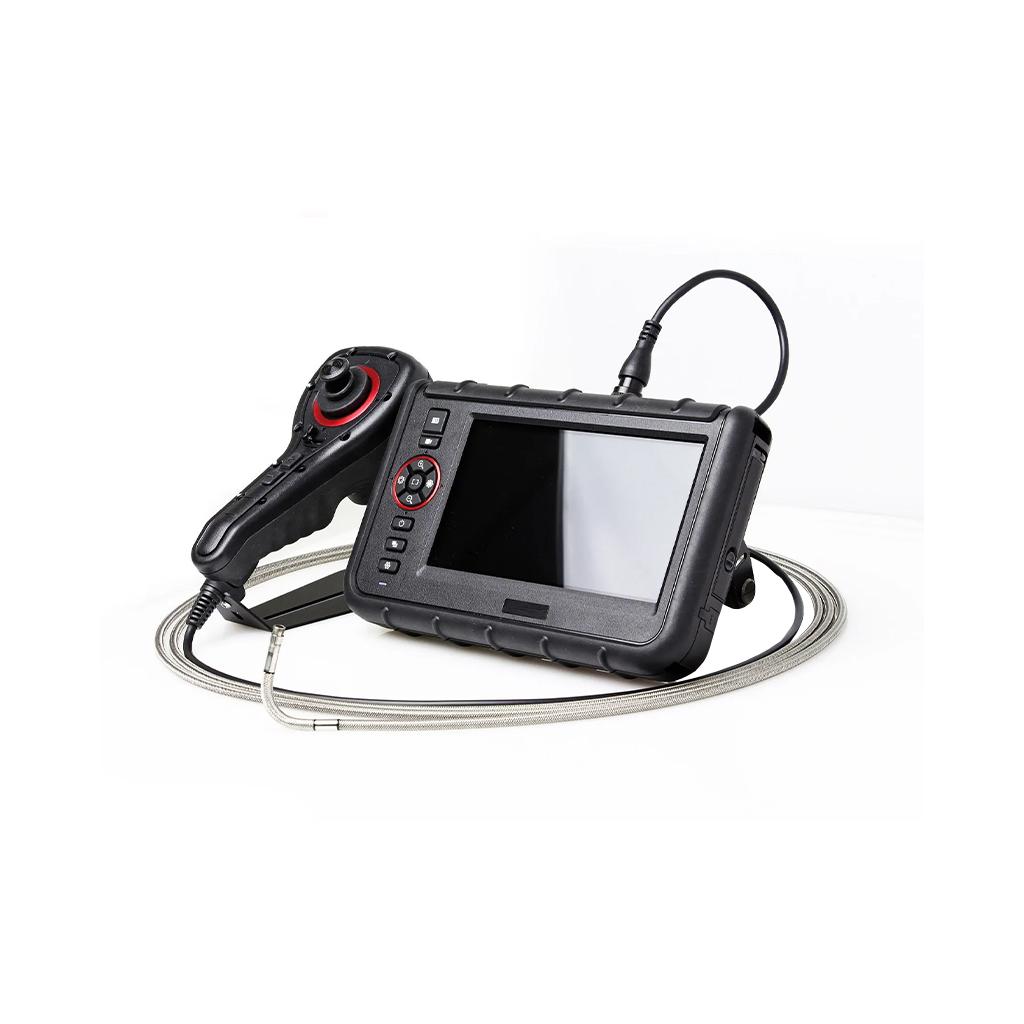

USA Borescopes 6mm Borescope Camera – USA1000J-6-3000

The USA Borescopes USA1000J-6-3000 is a rugged and versatile 6.0 mm diameter, 3-meter all-way articulating portable videoscope designed for high-precision inspections. Built with superior image quality and a robust design, this videoscope offers straight and side-view capabilities, making it an ideal tool for aviation maintenance, industrial inspections, and other demanding applications.

Featuring a 7" TFT LCD display protected by oil- and scratch-resistant tempered glass, the USA1000J-6-3000 delivers sharp, clear, and bright imaging. Its lightweight yet durable construction ensures portability, while the rechargeable lithium battery provides up to six hours of continuous operation. With built-in picture-taking, video recording, and multiple capture methods, this videoscope enhances efficiency in critical inspection environments.

Features:

• 7" TFT LCD display (WVGA) with oil- and scratch-resistant tempered glass
• Superior image quality with sharp, clear, and bright visuals
• Rugged and robust design with IP57 protection and 1m drop resistance
• Rechargeable lithium battery with up to 6 hours of operation
• LED backlit function keys for easy use in dark environments
• Interchangeable side-view tip for enhanced inspection angles
• USB camera support for remote access, data sharing, and real-time diagnostics
• USB reader for quick PC data retrieval without a card reader
• Three ways to capture pictures: system button, articulation probe, and remote control
• Lightweight design (1.3 kg / 2.86 lb) with included neck/hand strap
• Water- and oil-resistant probe
• 3.17x digital zoom for detailed inspections

System Specifications:

• System dimensions: 240 x 154 x 47 mm
• System weight: 1.3 kg (2.86 lb)
• Power: Rechargeable lithium battery (3.7V), AC 100-240V 50-60Hz power supply
• Battery life: 5 hours (3-hour charge time)
• Drop & water resistance: IP57 rated, 1m drop tested
• Video output: NTSC & PAL / AV OUT
• Storage: SD card (SDHC), up to 32GB
• Video/photo file formats: .avi / .jpg
• Video/photo resolution: 640 x 480
• Operating & storage temperature: 0°C – 60°C

Two-Way Articulation Tube:

• Probe head diameter: 6.0 mm
• Tube length: 3 m
• Articulation: All-way
• Field of view (FOV): 90°
• Depth of field (DOF): 12 to 150 mm
• LED lighting: Front and side
• Button functions: Snapshot, LED brightness adjustment (+/-), button lock
• Insertion tube temperature range: -20°C to 80°C
• Water temperature resistance: 10°C to 30°C

Includes:

• USA1000J-6-3000 Borescope
• HDMI cable
• Charging cable
• MicroSD card
• MicroSD card reader
• User manual
• Heavy-duty carrying case

Designed for professionals who require durability, precision, and advanced imaging, the USA Borescopes USA1000J-6-3000 delivers exceptional articulation and clarity. Whether for aviation maintenance, industrial inspections, or critical diagnostic applications, this portable videoscope ensures superior performance in the most demanding environments.
