USA Borescopes 6mm Borescope Camera (HD) – USA2000J-6-10

The USA Borescopes USA2000J-6-10 is an advanced 6.0 mm HD industrial videoscope designed to enhance efficiency and safety in a wide range of inspection applications. Featuring a durable tungsten-braided probe and a high-resolution HD CMOS sensor, this versatile borescope provides unparalleled image clarity and maneuverability, making it ideal for aviation, manufacturing, and non-destructive testing (NDT).

Equipped with a 7" LCD touchscreen display, the USA2000J-6-10 offers real-time sharpness, brightness adjustments, and a manual exposure feature to ensure optimal image quality. The interchangeable probe design supports both 6 mm and 4 mm borescope probes, adding versatility for various inspection tasks. With a 10-meter probe length and smooth joystick articulation, this system allows users to inspect hard-to-reach areas with precision.

Features:

• Excellent image quality with optimized optical system and HD CMOS sensor
• High-resolution picture/video output system

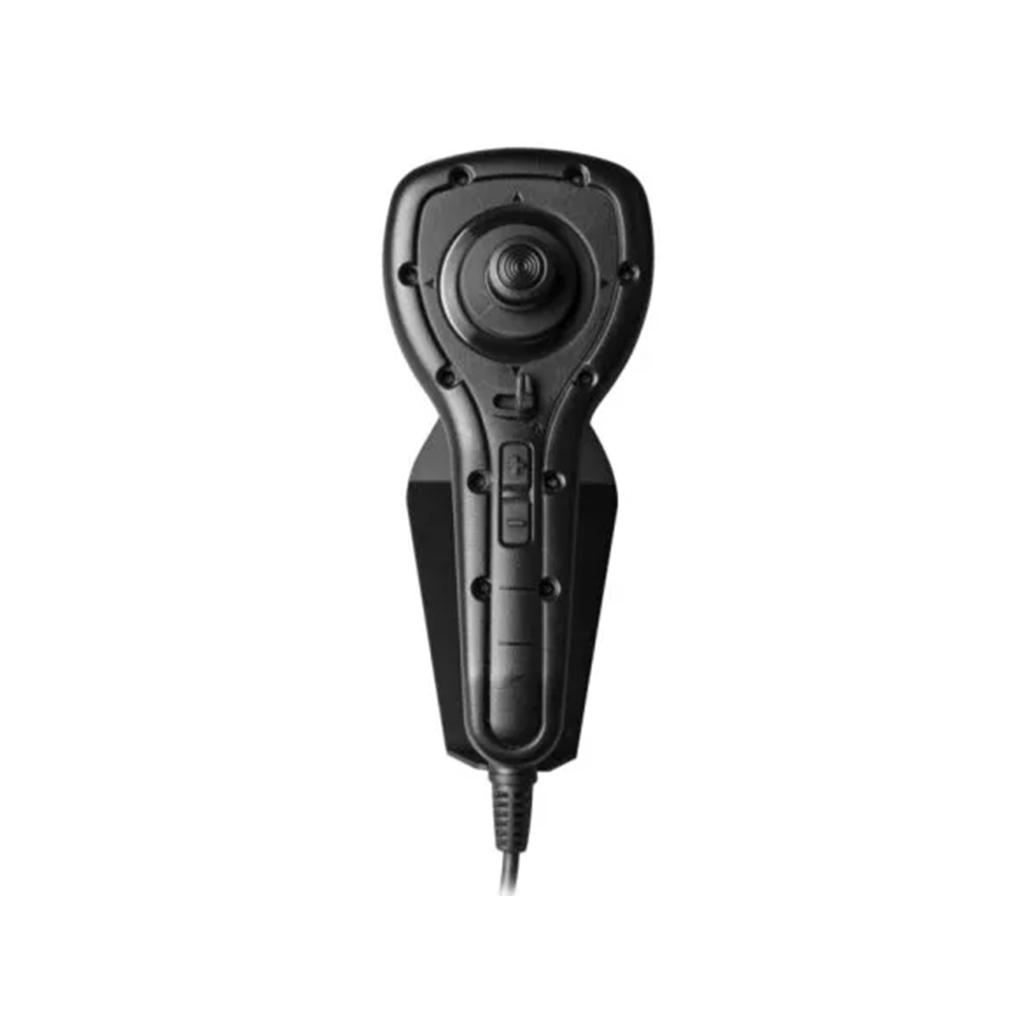

• Smooth joystick control and lock system for precise articulation
• Durable tungsten-braided probe for enhanced longevity

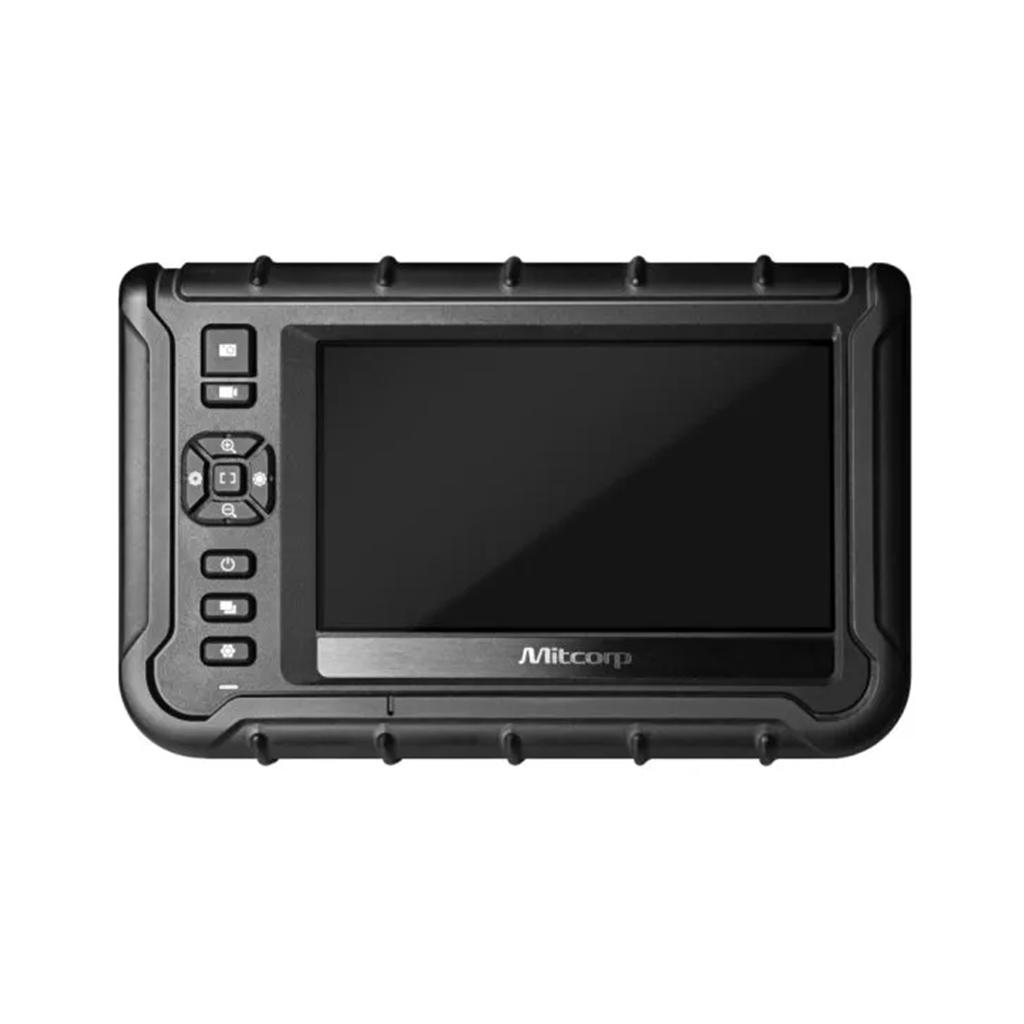

• 7" LCD touchscreen display (1024×600 resolution)
• Interchangeable side-view tip for increased inspection capabilities
• Rigid sleeve for additional probe protection
• 10-meter (32.8 ft) probe length (Also available in 2m, 3m, and 5m)
• HD borescope with interchangeable probe compatibility
• Supports both 6 mm and 4 mm interchangeable borescope probes

Specifications:

• Display: 7" LCD, 1024×600 resolution
• Power Supply:
  • AC Adapter: 100V~240V, 12V 2.5A, 50-60Hz
  • Battery: Rechargeable Li battery (3.6V 900mAh), approx. 5-hour operation time, 4-hour charge time
• Video Output:
  • HDMI: Type D, HDMI 1.4 transmitter with 3D format and CEC support
  • USB: USB Type-C for high-speed data transfer
  • Wi-Fi: IEEE802.11B/G/N connectivity
• Operating Temperature:
  • Battery power: 0~40ºC
  • AC adapter power: 0~35ºC
• Drop resistance: 1m
• Relative humidity: Max 95% non-condensing
• Dustproof/Waterproof:
  • Joystick console: IP54
  • Insertion tube: IP57 (submersible up to 1m for 30 minutes)
• Insertion Tube Compatibility: 6.0mm HD series; 3.9mm series

Articulation Probe Specifications:

• Joystick Console Dimensions: 139.4 x 193 x 84.2 mm
• Net Weight: 2m probe – 700g, 3m probe – 866g
• Joystick Console Buttons: Brightness +/-, Snapshot/Record
• Lock/Unlock switch for stable control
• Probe Head Diameter: 6.0 mm
• Probe Length: 10 m
• Probe Head Material: Stainless steel
• Probe Material: Tungsten braid
• Probe Head Length: 19.3 mm
• Direction of View: Front view
• Field of View (FOV): 90°
• Depth of Field (DOF): 10mm ~ 100mm
• Illumination: Front/Side LEDs
• Operating Temperature:
  • In air: -10~100ºC
  • In water: 10~30ºC
• Liquid Resistance: Operable when exposed to machine oil, light oil, or 5% saline solution

Software Features:

• 3X digital zoom with 10-step brightness control
• Sharpness control (Clarity On/Off)
• Annotation: 10 text annotations (24 characters)
• Timestamp/Watermark for snapshot/video recording (on/off)
• Image Management: User-defined picture/video folder organization
• On-Screen Display Functions: Light boost, mirror, compare, wireless, particle-free, dual view, light direction, negative, auto white balance
• Manual white balance adjustments (default, warm, cold, custom)

Recording Management:

• Storage: SDHC, up to 32GB
• Overlay: YY/MM/DD h:m, battery capacity
• Thumbnail Image Display: 9-grid album mode
• Still Image:
  • Resolution: 2560×1440 (S-HD); 1280×720 (HD)
  • Format: .jpg
• Video:
  • Resolution: 1920×1080
  • Format: .mov / H.264
  • Audio Input: Built-in microphone (on/off)
  • Frame Rate: 30FPS

Accessories Included:

• HDMI Cable (1.8m, HDMI 1.4a, Type D)
• USB Cable (1m, Type C to standard Type A)
• USB Charging Cable (1m, USB-DC jack for power bank)
• SD Card (16GB)
• DC Power Adapter (100V~240V, 12V 2.5A, 50-60Hz)
• Interchangeable Side-View Tip (6.0 mm)
• Shoulder and hand straps (Polyester)
• Sun visor (Steel/Plastic)
• Ground wire (3m with DC jack / PC in / clamp)
• Insulation cap (Ø20mm, 90mm rubber)
• Rigid sleeve:
  • Grip Material: Rubber/Aluminum/Plastic
  • Tube Material: Stainless steel
  • OD: 8mm / ID: 7mm protection ring; OD 10mm extension joint ring; OD 11.2mm
• Trolley Case (HDPE EVA with storage reel)

Built for professionals who demand precision, durability, and high-quality imaging, the USA Borescopes USA2000J-6-10 is an indispensable tool for industrial inspections. Whether used in aviation maintenance, manufacturing, or non-destructive testing, this HD videoscope delivers unparalleled performance and reliability for the most challenging inspection tasks.
