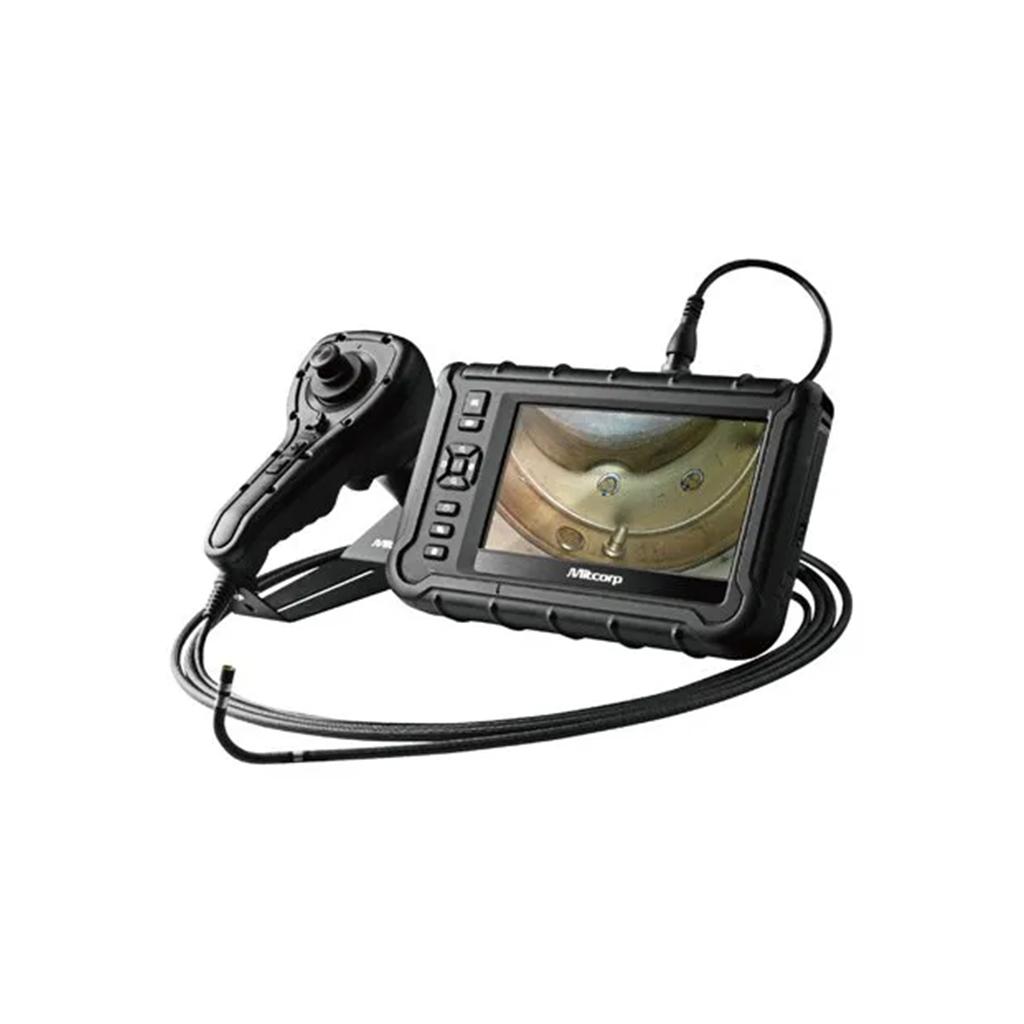

USA Borescopes USA2000J-6-5000 – 6 mm HD Videoscope with Joystick Articulation
Need a Quote?
The USA Borescopes USA2000J-6-5000 is a high-definition 6 mm industrial videoscope designed for precision inspections in demanding environments. Built for durability, this rugged, water- and drop-resistant borescope delivers HD-quality images and video with remarkable sharpness and clarity, making it ideal for aviation, aerospace, power generation, and manufacturing applications.
The USA2000J-6-5000 features a high-resolution 7" color touchscreen display, allowing users to capture and store images and videos with the touch of a button. Its interchangeable probe system supports both 6 mm and 4 mm borescope probes, offering versatility for different inspection requirements. With a 5-meter probe length and smooth joystick articulation, this HD inspection camera ensures seamless maneuverability for accessing hard-to-reach areas.
Features
- Excellent image quality with optimized optical system & HD CMOS sensor
- High-resolution picture/video output system
- Smooth joystick control and lock system for precise probe articulation
- Durable tungsten-braided probe for enhanced longevity

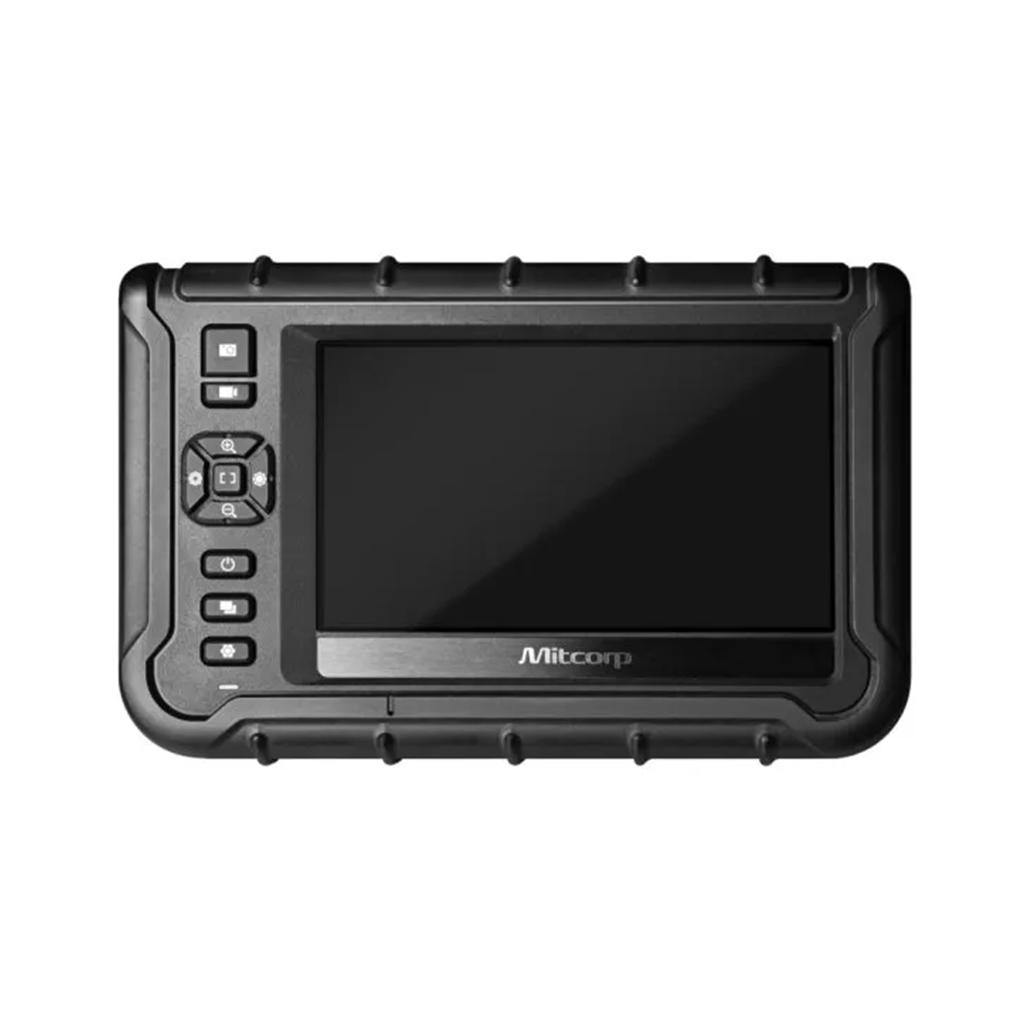

- 7" LCD touchscreen display (1024 × 600 resolution)
- Interchangeable side-view tip for flexible inspection capabilities
- Rigid sleeve for additional probe protection
- 5-meter (16.4 ft) probe length (Also available in 2m, 3m, and 7m)
- HD borescope with interchangeable probe capability
- Supports both 6 mm and 4 mm interchangeable borescope probes
Specifications
- Display: 7" LCD, 1024 × 600 resolution
- Power Supply:
- AC Adapter: 100V~240V, 12V 2.5A, 50-60 Hz
- Battery: Rechargeable lithium-ion battery (3.6V 900mAh), approx. 5-hour operation time, 4-hour charge time
- Video Output:
- HDMI: Type D, HDMI 1.4 transmitter with 3D format and CEC support
- USB: USB Type-C for high-speed data transfer
- Wi-Fi: IEEE802.11B/G/N connectivity
- Operating Temperature:
- Battery power: 0~40ºC
- AC adapter power: 0~35ºC
- Drop resistance: 1m
- Relative humidity: Max 95% non-condensing
- Dustproof/Waterproof:
- Joystick console: IP54
- Insertion tube: IP57 (submersible up to 1m for 30 minutes)
- Insertion Tube Compatibility: 6.0mm HD series; 3.9mm series
Articulation Probe Specifications

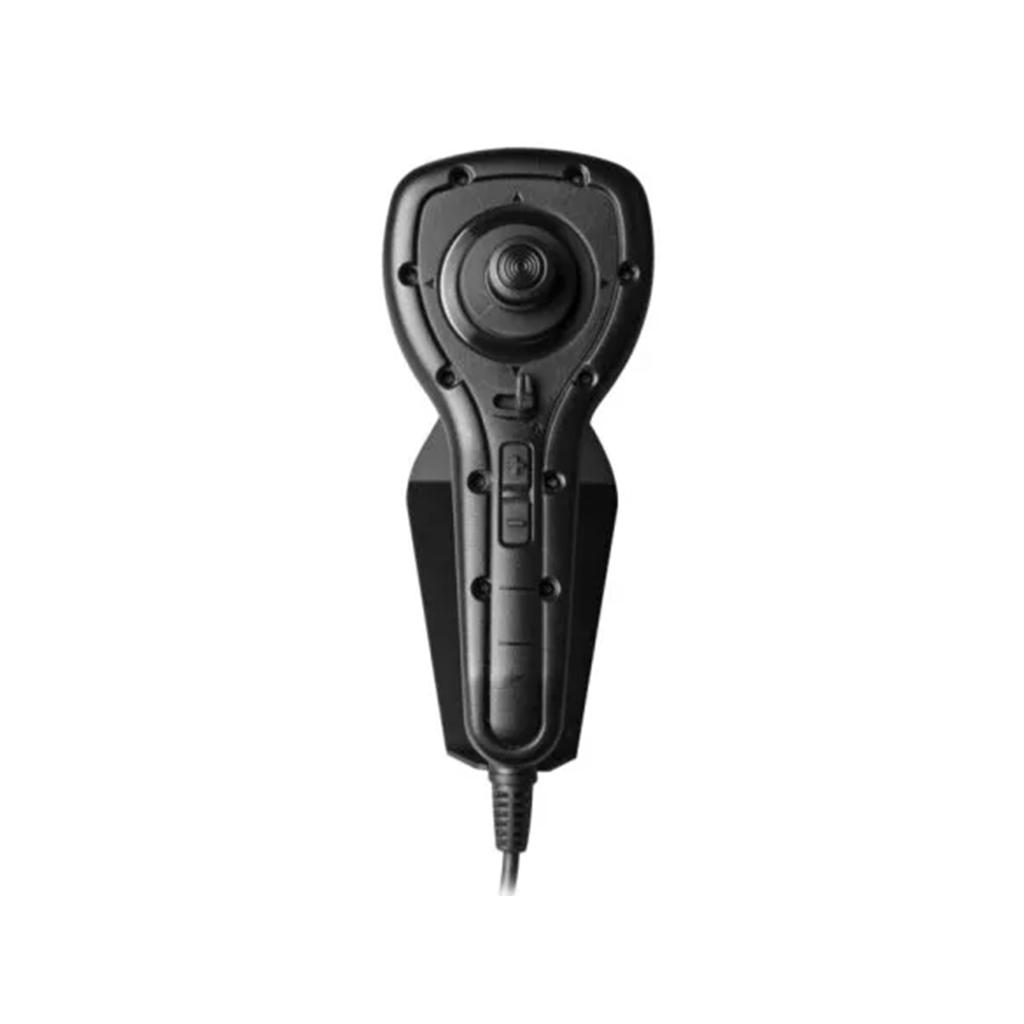

- Joystick Console Dimensions: 139.4 x 193 x 84.2 mm
- Net Weight: 2m probe – 700g, 3m probe – 866g
- Joystick Console Buttons: Brightness +/-, Snapshot/Record
- Lock/Unlock switch for stable control
- Probe Head Diameter: 6.0 mm
- Probe Length: 5 m
- Probe Head Material: Stainless steel
- Probe Material: Tungsten braid
- Probe Head Length: 19.3 mm
- Direction of View: Front view
- Field of View (FOV): 90°
- Depth of Field (DOF): 10mm ~ 100mm
- Illumination: Front/Side LEDs
- Operating Temperature:
- In air: -10~100ºC
- In water: 10~30ºC
- Liquid Resistance: Operable when exposed to machine oil, light oil, or 5% saline solution
Software Features
- 3X digital zoom with 10-step brightness control
- Sharpness control (Clarity On/Off)
- Annotation: 10 text annotations (24 characters)
- Timestamp/Watermark for snapshot/video recording (on/off)
- Image Management: User-defined picture/video folder organization
- On-Screen Display Functions: Light boost, mirror, compare, wireless, particle-free, dual view, light direction, negative, auto white balance
- Manual white balance adjustments (default, warm, cold, custom)
Recording Management
- Storage: SDHC, up to 32 GB
- Overlay: YY/MM/DD h:m, battery capacity
- Thumbnail Image Display: 9-grid album mode
- Still Image:
- Resolution: 2560×1440 (S-HD); 1280×720 (HD)
- Format: .jpg
- Video:
- Resolution: 1920×1080
- Format: .mov / H.264
- Audio Input: Built-in microphone (on/off)
- Frame Rate: 30FPS
Accessories Included
- HDMI Cable (1.8m, HDMI 1.4a, Type D)
- USB Cable (1m, Type C to standard Type A)
- USB Charging Cable (1m, USB-DC jack for power bank)
- SD Card (16GB)
- DC Power Adapter (100V~240V, 12V 2.5A, 50-60Hz)
- Interchangeable Side-View Tip (6 mm)
- Shoulder and hand straps (Polyester)
- Sun visor (Steel/Plastic)
- Ground wire (3m with DC jack / PC in / clamp)
- Insulation cap (Ø20 mm, 90 mm rubber)
- Rigid sleeve:
- Grip Material: Rubber/Aluminum/Plastic
- Tube Material: Stainless steel
- OD: 8 mm / ID: 7 mm protection ring; OD 10 mm extension joint ring; OD 11.2 mm
- Trolley Case (HDPE EVA with storage reel)
Designed for maintenance professionals who demand precision, durability, and advanced imaging, the USA Borescopes USA2000J-6-5000 delivers high-definition performance for critical industrial inspections. Whether in aviation, manufacturing, or power generation, this borescope ensures efficiency and accuracy in the most challenging environments.
| General Information | |
|---|---|
| Part # | USA2000J-6-5000 |
| Manufacturer | USA Borescopes |
| Manual 1 | View USA2000J Series User Manual |
Customers also viewed
AIRCRAFT COMPATIBILITY
| Compatible Aircraft* |
|---|
PRODUCT REVIEWS
This item does not have any reviews yet.
QUESTIONS & ANSWERS
The USA2000J-6-5000 is well-suited for internal inspections where durability and reach are critical, such as aircraft engines, turbines, gearboxes, and other confined mechanical spaces. Its 6 mm probe provides a strong balance between robustness and maneuverability. This makes it ideal for aviation maintenance, MRO inspections, and industrial applications where smaller probes may lack rigidity.
Joystick articulation allows precise, one-handed control of the probe tip, making it easier to navigate complex internal geometries. This level of control helps inspectors position the camera exactly where needed without excessive probe manipulation. As a result, technicians can capture clearer images and reduce inspection time.
Yes, the 5 m probe length is particularly useful for reaching deeper engine sections and complex pathways. It allows technicians to inspect hard-to-access areas without repeatedly repositioning the scope. This extended reach supports more thorough inspections while minimizing downtime.
The USA2000J-6-5000 is designed for demanding environments, with a rugged probe construction and resistance to common contaminants. It can be used around oils, light fuels, and other substances typically encountered during aircraft maintenance. Proper care and cleaning help extend service life in these conditions.
High-definition imaging helps technicians clearly identify cracks, corrosion, foreign object damage, and wear. The clarity of captured images supports confident decision-making during inspections. This can reduce the likelihood of missed defects and unnecessary teardown.
Yes, the system supports onboard image and video recording with intuitive file organization. Inspectors can store inspection records for maintenance tracking, reporting, or regulatory documentation. This simplifies post-inspection review and long-term recordkeeping.
The videoscope provides a wide field of view, allowing inspectors to see more of the inspection area at once. Combined with articulation, this helps reduce blind spots and improve overall situational awareness inside components. It’s especially helpful when inspecting curved or irregular surfaces.
The system is designed to be portable enough for use in hangars, on the flight line, or in the field. Its compact console and durable carrying case make transport between inspection locations straightforward. This portability supports both scheduled and unscheduled maintenance tasks.
Yes, the probe is designed to balance flexibility with rigidity, helping prevent uncontrolled movement during insertion. This reduces the risk of accidental contact damage to sensitive internal components. Proper handling further ensures safe inspections.
The USA2000J-6-5000 is built with user comfort in mind, featuring intuitive controls and a clear display. These design elements help reduce operator fatigue during extended inspections. This makes it well-suited for detailed inspections that require time and precision.
