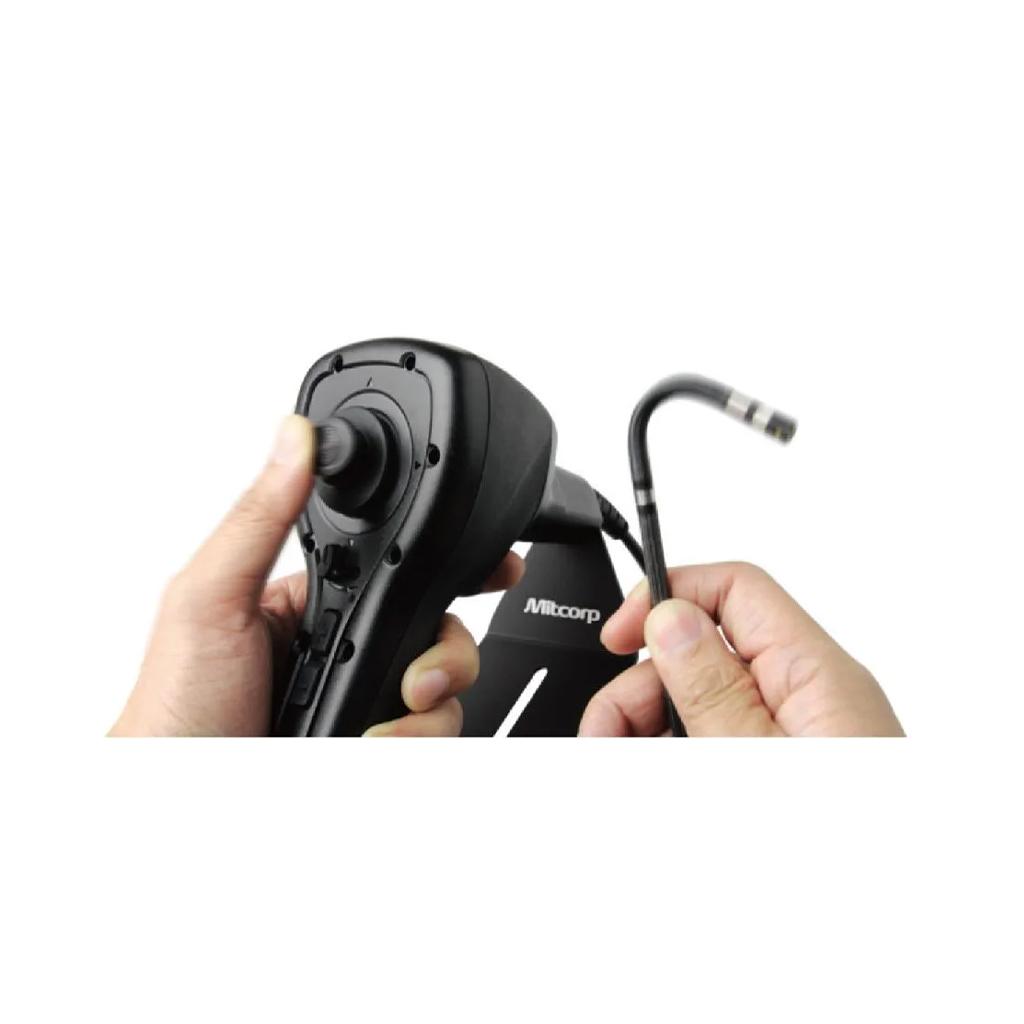

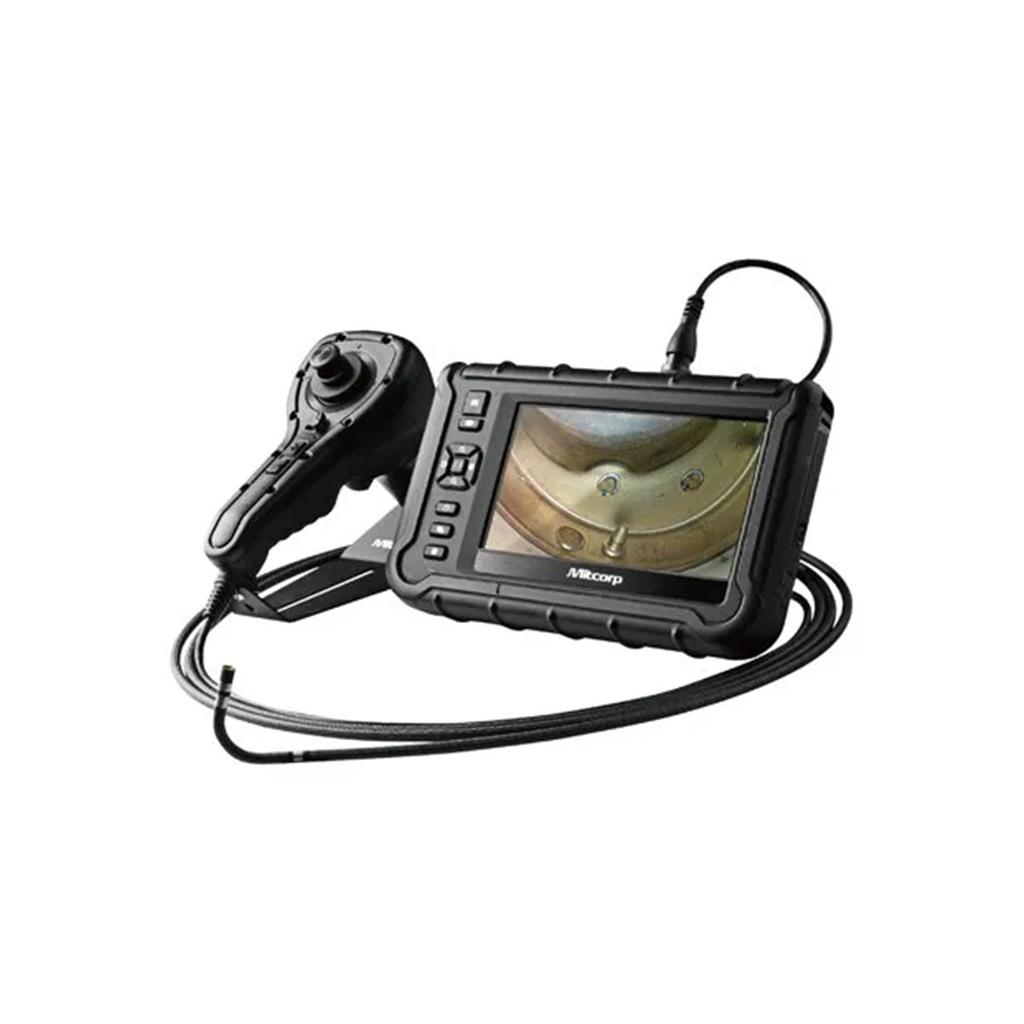

USA Borescopes USA2000J-2.8-1500 – 2.8 mm Videoscope with Joystick Articulation
Need a Quote?
The USA Borescopes USA2000J-2.8-1500 is a compact and highly maneuverable 2.8 mm diameter articulating borescope designed for inspections requiring precision and durability. Engineered with a high-resolution HD CMOS sensor, this micro borescope delivers exceptional image quality, while the responsive joystick articulation provides full 360° viewing capabilities. Built for demanding inspection environments, the tungsten-braided probe and reinforced metal sheathing ensure long-term reliability and performance.
The USA2000J-2.8-1500 features a 7" LCD monitor with an optimized optical system, providing clear visuals even in hard-to-reach areas. While this system does not offer an interchangeable side-view tip, its full-range articulation allows inspectors to thoroughly assess the inspection area with ease. Designed with durability in mind, this borescope is drop-resistant, water-resistant, and operable in extreme temperatures, making it an essential tool for aviation maintenance and industrial inspections.
Features
- Excellent image quality with optimized optical system & HD CMOS sensor
- High-resolution picture/video output system
- Smooth joystick control with full-way articulation (≥110° up/down/left/right)
- Durable tungsten-braided probe with reinforced metal sheathing
- 7" LCD monitor (1024×600 resolution)
- Rigid sleeve for additional probe protection
- Temperature warning for safe operation
Specifications
- Display: 7" LCD, resolution 1024 × 600
- Power Supply:
- AC Adapter: 100V~240V, 12V 2.5A, 50-60 Hz
- Battery: Rechargeable lithium-ion battery (3.6V 900mAh), approx. 5-hour operation time, 4-hour charge time
- Video Output:
- HDMI: Type D, HDMI 1.4 transmitter with 3D format and CEC support
- USB: USB Type-C for high-speed data transfer
- Wi-Fi: IEEE802.11B/G/N connectivity
- Operating Temperature:
- Battery power: 0~40ºC
- AC adapter power: 0~35ºC
- Drop resistance: 1 meter
- Relative humidity: Max 95% non-condensing
- Dustproof/Waterproof:
- Joystick console: IP54
- Insertion tube: IP57 (submersible up to 1m for 30 minutes)
- Insertion Tube Compatibility: 6.0mm HD series; 3.9mm series
Articulation Probe Specifications
- Joystick Console Dimensions: 139.4 x 193 x 84.2 mm
- Net Weight: 2m probe – 700g, 3m probe – 866g
- Joystick Console Buttons: Brightness +/-, Snapshot/Record
- Lock/Unlock switch for stable control
- Probe Head Diameter: 2.8 mm
- Probe Length: 1.5 m
- Probe Head Material: Stainless steel
- Probe Material: Tungsten braid
- Probe Head Length: 10.1 mm
- Direction of View: Front view
- Field of View (FOV): 120°
- Depth of Field (DOF): 3mm ~ infinity
- Illumination: Front LEDs
- Operating Temperature:
- In air: -10~80ºC
- In water: 10~30ºC
- Liquid Resistance: Operable when exposed to machine oil, light oil, or 5% saline solution
Software Features
- 3X digital zoom with 10-step brightness control
- Sharpness control (Clarity On/Off)
- Annotation: 10 text annotations (24 characters)
- Timestamp/Watermark for snapshot/video recording (on/off)
- Image Management: User-defined picture/video folder organization
- On-Screen Display Functions: Light boost, mirror, compare, wireless, particle-free, dual view, negative, auto white balance
- Manual white balance adjustments (default, warm, cold, custom)
Recording Management
- Storage: SDHC, up to 32GB
- Overlay: YY/MM/DD h:m, battery capacity
- Thumbnail Image Display: 9-grid album mode
- Still Image:
- Resolution: 800×800
- Format: .jpg
- Video:
- Resolution: 800×800
- Format: .mov / H.264
- Audio Input: Built-in microphone (on/off)
- Frame Rate: 30FPS
Accessories Included
- HDMI Cable (1.8m, HDMI 1.4a, Type D)
- USB Cable (1m, Type C to standard Type A)
- USB Charging Cable (1m, USB-DC jack for power bank)
- SD Card (16GB)
- DC Power Adapter (100V~240V, 12V 2.5A, 50-60Hz)
- Shoulder and hand straps (Polyester)
- Sun visor (Steel/Plastic)
- Ground wire (3m with DC jack / PC in / clamp)
- Insulation cap (Ø20mm, 90mm rubber)
- Rigid sleeve:
- Grip Material: Rubber/Aluminum/Plastic
- Tube Material: Stainless steel
- Trolley Case (HDPE EVA with storage reel)
Designed for professionals who need precision, durability, and high-quality imaging, the USA Borescopes USA2000J-2.8-1500 delivers outstanding articulation and clarity for critical inspections. Whether for aviation maintenance, industrial applications, or other challenging environments, this micro borescope is an essential tool for achieving accurate diagnostics with ease.
| General Information | |
|---|---|
| Part # | USA2000J-2.8-1500 |
| Manufacturer | USA Borescopes |
| Manual 1 | View USA2000J Series User Manual |
Customers also viewed
AIRCRAFT COMPATIBILITY
| Compatible Aircraft* |
|---|
PRODUCT REVIEWS
This item does not have any reviews yet.
QUESTIONS & ANSWERS
The USA2000J-2.8-1500 videoscope is well-suited for detailed visual inspections in tight, hard-to-reach areas such as small engine passages, fuel nozzles, and turbine components. Its slim 2.8 mm probe allows technicians to access confined spaces without disassembly. This makes it a practical tool for routine aircraft engine inspections and troubleshooting tasks.
Joystick articulation allows precise, one-handed control of the probe tip, making it easier to navigate complex internal geometries. Technicians can smoothly steer the camera around bends and obstacles without having to repeatedly reposition the probe. This improves inspection speed and reduces operator fatigue during longer borescope sessions.
Yes. The USA2000J-2.8-1500 is commonly used for aircraft engine inspections, including combustion chambers, turbine blades, and other internal engine components. Its small probe diameter and controlled articulation support accurate visual assessments while minimizing the risk of contact damage. It is suitable for both scheduled inspections and on-condition maintenance.
This videoscope delivers clear, high-resolution images designed to support accurate defect identification. Features such as adjustable brightness, manual exposure control, and digital zoom help technicians optimize image clarity in varying lighting conditions. Clear visuals are essential for identifying cracks, corrosion, and foreign object damage.
Yes. The USA2000J-2.8-1500 is designed as a portable videoscope, making it well-suited for hangar, ramp, and field inspections. Its integrated display and self-contained design allow technicians to perform inspections without relying on external monitors or computers. This portability supports faster diagnostics wherever maintenance is performed.
The probe is constructed with a durable outer sheath and a compact camera head to reduce the risk of snagging or scraping internal surfaces. Controlled joystick articulation allows smooth movements rather than abrupt directional changes. Together, these features help protect sensitive engine and system components during inspections.
Yes. The USA2000J-2.8-1500 supports image and video capture for inspection documentation. Stored files can be used for maintenance records, defect tracking, and communication with other maintenance personnel. This capability supports regulatory compliance and more consistent inspection reporting.
A 2.8 mm probe diameter allows access to smaller inspection ports that larger videoscopes cannot enter. This expands inspection coverage without requiring additional disassembly or alternative tools. For aircraft maintenance technicians, this means faster inspections with less downtime.
While commonly used in aviation, the USA2000J-2.8-1500 is also suitable for industrial, power generation, and precision mechanical inspections. Its compact size and articulation make it useful anywhere detailed internal visual inspection is required. This versatility adds value for maintenance teams supporting multiple equipment types.
By enabling regular, non-destructive internal inspections, the USA2000J-2.8-1500 helps identify early signs of wear or damage before they become major issues. Early detection supports proactive maintenance decisions and reduces the likelihood of unscheduled downtime. This makes it a valuable tool for condition-based maintenance strategies.
