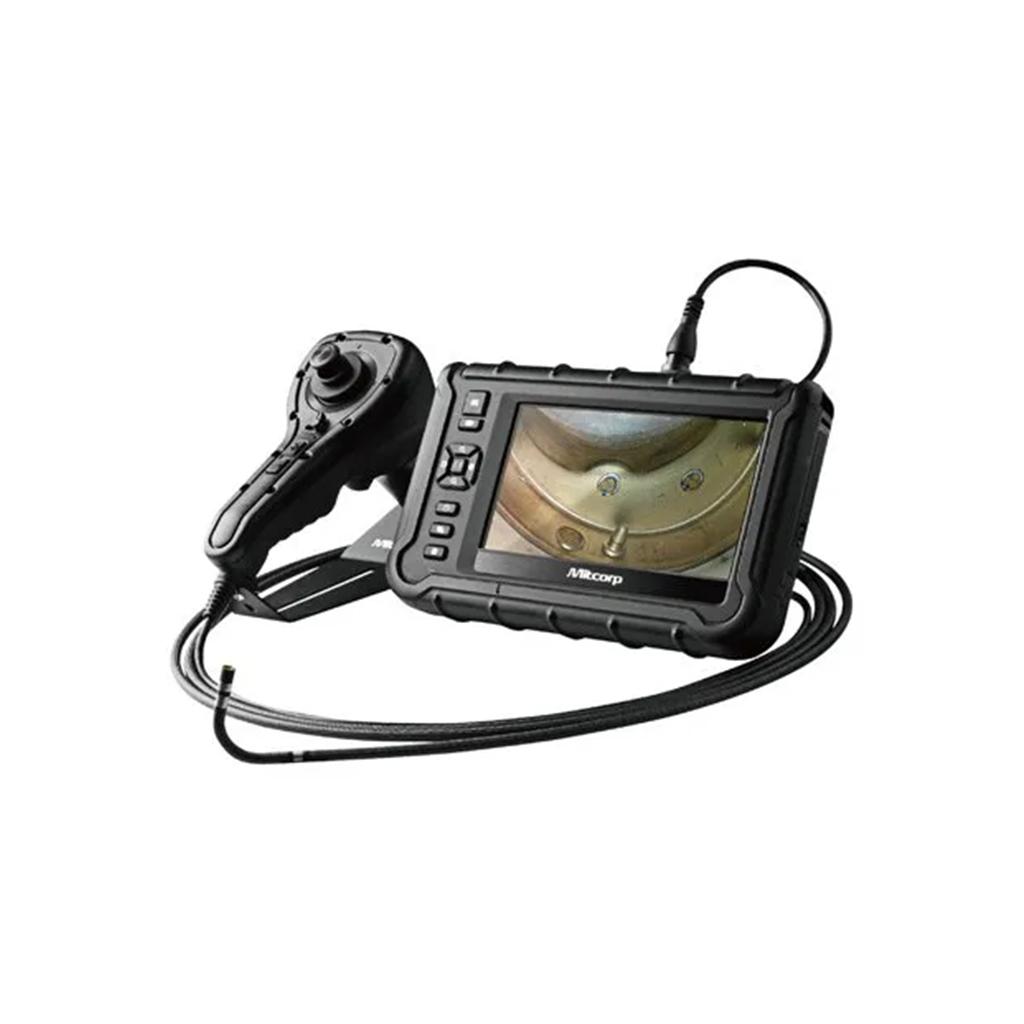

USA Borescopes 6mm Borescope Camera (HD) – USA2000J-6-3000
Need a Quote?
The USA Borescopes USA2000J-6-3000 is a high-precision 6.0 mm HD borescope designed for industrial inspections that require superior image clarity and maneuverability. Featuring a tungsten-braided probe and a high-resolution HD CMOS sensor, this borescope allows professionals to inspect hard-to-reach areas with unmatched accuracy, reducing downtime and improving maintenance efficiency.
Equipped with a 7" LCD touchscreen display, the USA2000J-6-3000 offers optimized imaging features, including brightness adjustments, real-time monitoring, and an interchangeable side-view tip for enhanced flexibility. Its robust construction ensures durability, while WiFi-enabled connectivity allows for efficient file management and remote access. Supporting both 6 mm and 4 mm interchangeable borescope probes, this system adapts to various inspection needs.
Features:
- Excellent image quality with optimized optical system & HD CMOS sensor
- High-resolution picture/video output system
- Smooth joystick control and lock system for precise articulation
- Durable tungsten-braided probe for extended lifespan

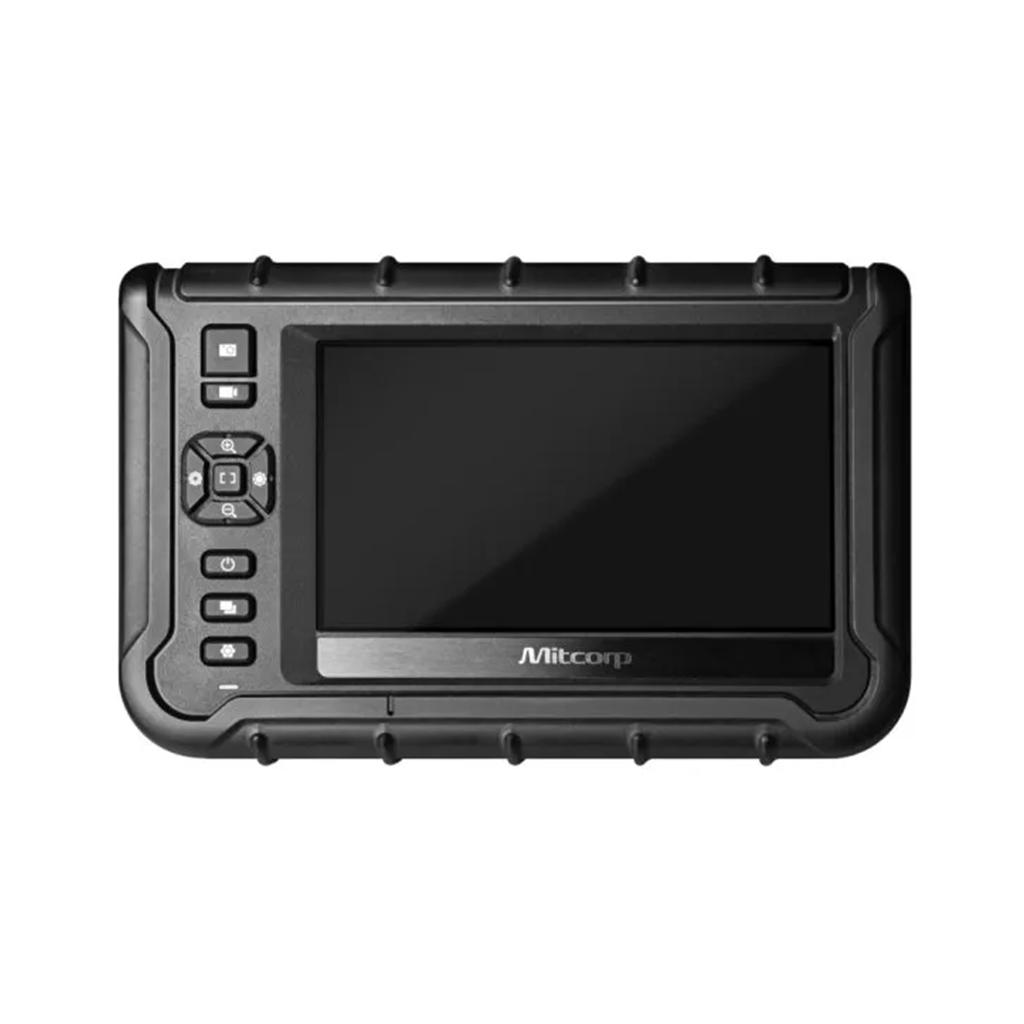

- 7" LCD touchscreen display (1024×600 resolution)
- Interchangeable side-view tip for increased inspection versatility
- Rigid sleeve for added probe protection
- 3-meter (9.8 ft) probe length (Also available in 2m, 5m, and 7m)
- HD borescope with interchangeable probe capability
- Supports both 6 mm and 4 mm interchangeable borescope probes
Specifications:
- Display: 7" LCD, 1024×600 resolution
- Power Supply:
- AC Adapter: 100V~240V, 12V 2.5A, 50-60Hz
- Battery: Rechargeable Li battery (3.6V 900mAh), approx. 5-hour operation time, 4-hour charge time
- Video Output:
- HDMI: Type D, HDMI 1.4 transmitter with 3D format and CEC support
- USB: USB Type-C for high-speed data transfer
- Wi-Fi: IEEE802.11B/G/N connectivity
- Operating Temperature:
- Battery power: 0~40ºC
- AC adapter power: 0~35ºC
- Drop resistance: 1m
- Relative humidity: Max 95% non-condensing
- Dustproof/Waterproof:
- Joystick console: IP54
- Insertion tube: IP57 (submersible up to 1m for 30 minutes)
- Insertion Tube Compatibility: 6.0mm HD series; 3.9mm series
Articulation Probe Specifications:

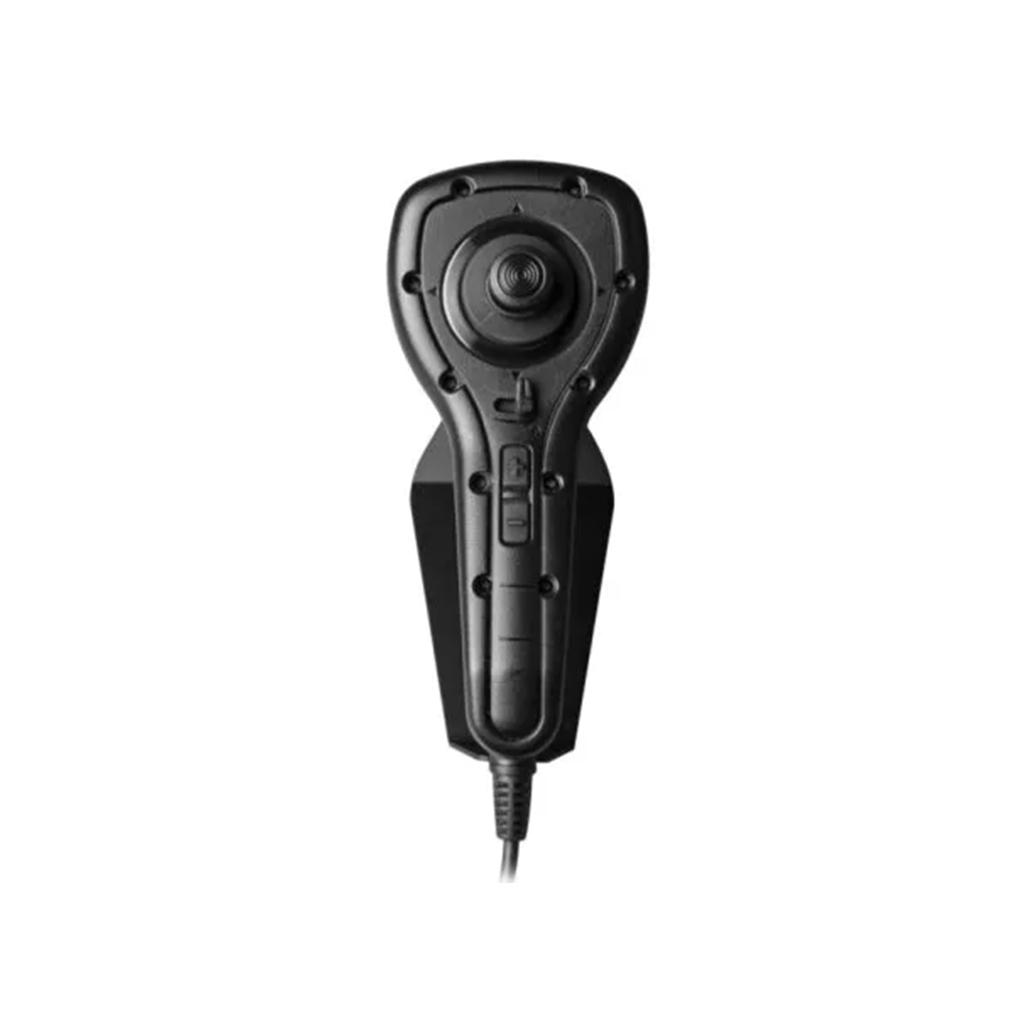

- Joystick Console Dimensions: 139.4 x 193 x 84.2 mm
- Net Weight: 2m probe – 700g, 3m probe – 866g
- Joystick Console Buttons: Brightness +/-, Snapshot/Record
- Lock/Unlock switch for stable control
- Probe Head Diameter: 6.0 mm
- Probe Length: 3 m
- Probe Head Material: Stainless steel
- Probe Material: Tungsten braid
- Probe Head Length: 19.3 mm
- Direction of View: Front view
- Field of View (FOV): 90°
- Depth of Field (DOF): 10mm ~ 100mm
- Illumination: Front/Side LEDs
- Operating Temperature:
- In air: -10~100ºC
- In water: 10~30ºC
- Liquid Resistance: Operable when exposed to machine oil, light oil, or 5% saline solution
Software Features:
- 3X digital zoom with 10-step brightness control
- Sharpness control (Clarity On/Off)
- Annotation: 10 text annotations (24 characters)
- Timestamp/Watermark for snapshot/video recording (on/off)
- Image Management: User-defined picture/video folder organization
- On-Screen Display Functions: Light boost, mirror, compare, wireless, particle-free, dual view, light direction, negative, auto white balance
- Manual white balance adjustments (default, warm, cold, custom)
Recording Management:
- Storage: SDHC, up to 32GB
- Overlay: YY/MM/DD h:m, battery capacity
- Thumbnail Image Display: 9-grid album mode
- Still Image:
- Resolution: 2560×1440 (S-HD); 1280×720 (HD)
- Format: .jpg
- Video:
- Resolution: 1920×1080
- Format: .mov / H.264
- Audio Input: Built-in microphone (on/off)
- Frame Rate: 30FPS
Accessories Included:
- HDMI Cable (1.8m, HDMI 1.4a, Type D)
- USB Cable (1m, Type C to standard Type A)
- USB Charging Cable (1m, USB-DC jack for power bank)
- SD Card (16GB)
- DC Power Adapter (100V~240V, 12V 2.5A, 50-60Hz)
- Interchangeable Side-View Tip (6.0 mm)
- Shoulder and hand straps (Polyester)
- Sun visor (Steel/Plastic)
- Ground wire (3m with DC jack / PC in / clamp)
- Insulation cap (Ø20mm, 90mm rubber)
- Rigid sleeve:
- Grip Material: Rubber/Aluminum/Plastic
- Tube Material: Stainless steel
- OD: 8mm / ID: 7mm protection ring; OD 10mm extension joint ring; OD 11.2mm
- Trolley Case (HDPE EVA with storage reel)
Designed for professionals who require precision and durability, the USA Borescopes USA2000J-6-3000 delivers high-resolution imaging and smooth articulation for even the most challenging inspection environments. Whether used in aviation, manufacturing, or power generation, this HD borescope ensures optimal performance and efficiency for critical diagnostics.
| General Information | |
|---|---|
| Part # | USA2000J-6-3000 |
| Manufacturer | USA Borescopes |
| Manual 1 | View USA2000J Series User Manual |
