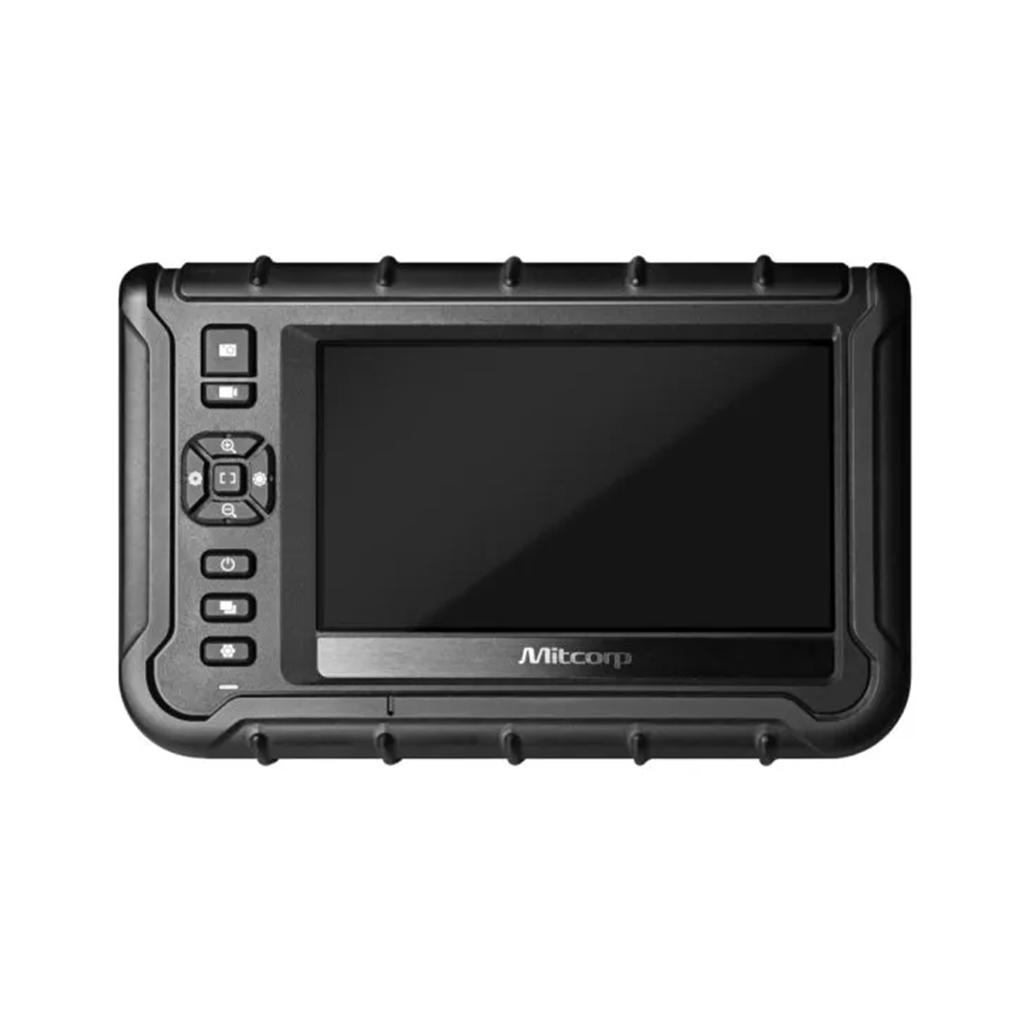

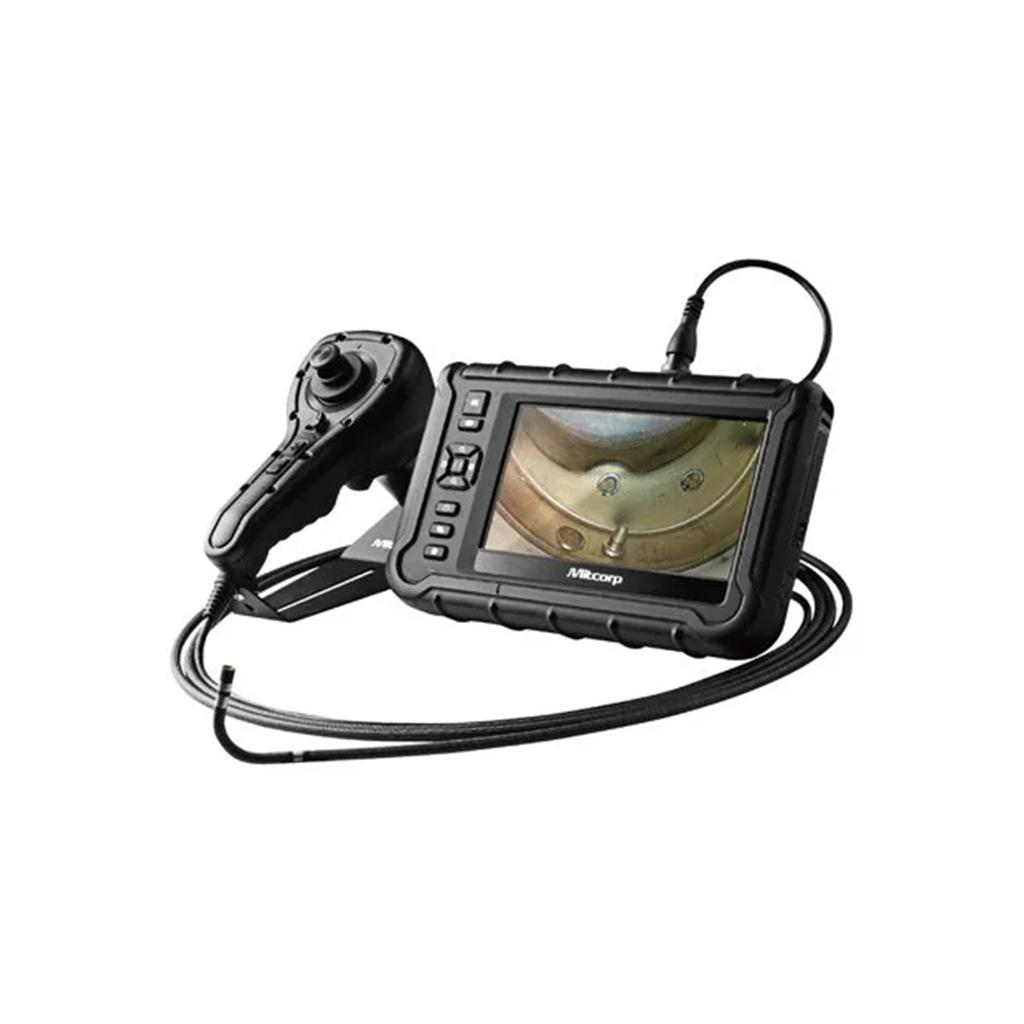

USA Borescopes USA2000J-6-7000 – 6 mm Videoscope with Joystick Articulation
Need a Quote?
The USA Borescopes USA2000J-6-7000 is a high-definition 6 mm industrial videoscope designed for precision inspections in demanding environments. Built to withstand rugged conditions, this water- and drop-resistant borescope delivers HD-quality images and video with outstanding clarity, making it an essential tool for aviation, aerospace, power generation, and manufacturing applications.
Featuring a high-resolution 7" color touchscreen display, the USA2000J-6-7000 allows users to capture and store images and videos effortlessly. With a 7-meter probe length and smooth joystick articulation, this HD inspection camera ensures exceptional maneuverability for accessing complex and confined areas. Its interchangeable probe system supports both 6 mm and 4 mm borescope probes, offering maximum versatility for various inspection tasks.
Features
- Excellent image quality with optimized optical system & HD CMOS sensor
- High-resolution picture/video output system

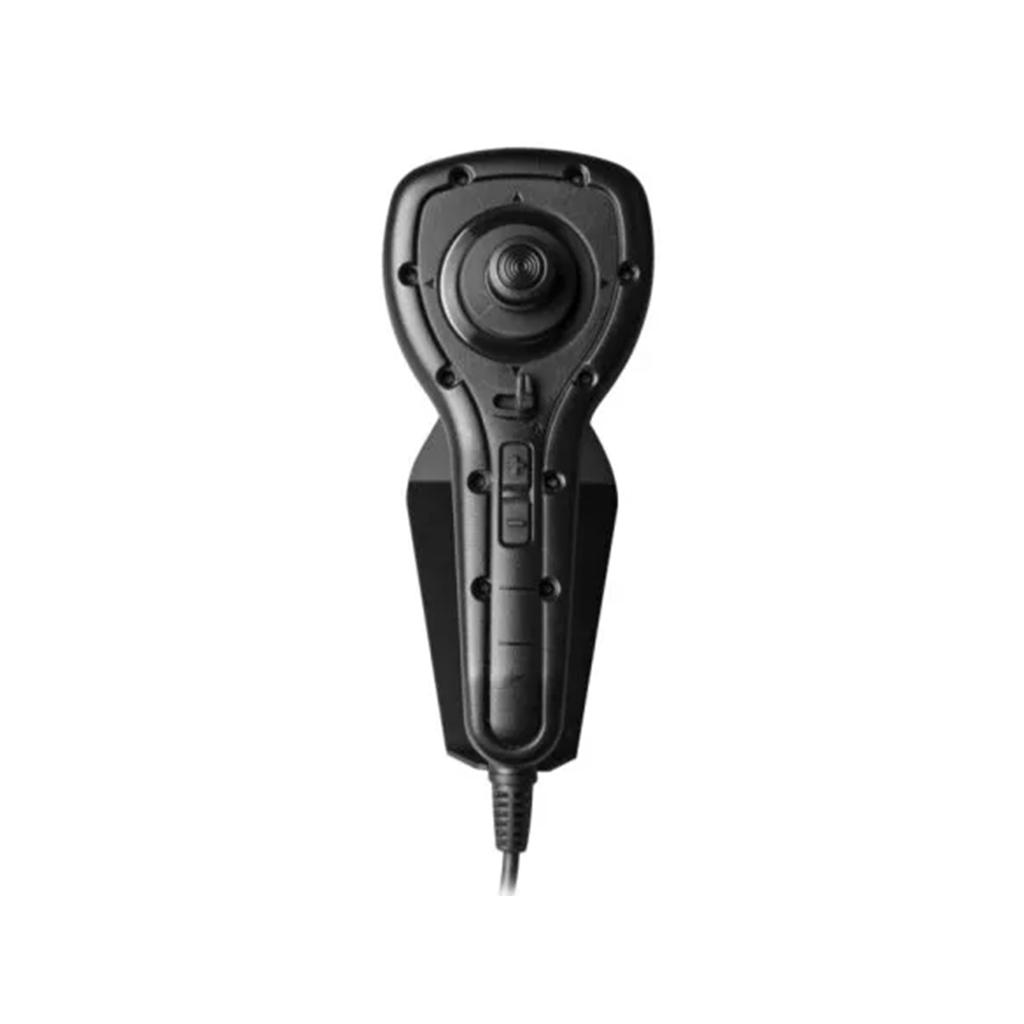

- Smooth joystick control and lock system for precise articulation
- Durable tungsten-braided probe for enhanced longevity
- 7" LCD touchscreen display (1024×600 resolution)
- Interchangeable side-view tip for flexible inspection capabilities
- Rigid sleeve for additional probe protection
- 7-meter (22.9 ft) probe length (Also available in 2m, 3m, and 5m)
- HD borescope with interchangeable probe capability
- Supports both 6 mm and 4 mm interchangeable borescope probes
Specifications
- Display: 7" LCD, 1024×600 resolution
- Power Supply:
- AC Adapter: 100V~240V, 12V 2.5A, 50-60Hz
- Battery: Rechargeable Li battery (3.6V 900mAh), approx. 5-hour operation time, 4-hour charge time
- Video Output:
- HDMI: Type D, HDMI 1.4 transmitter with 3D format and CEC support
- USB: USB Type-C for high-speed data transfer
- Wi-Fi: IEEE802.11B/G/N connectivity
- Operating Temperature:
- Battery power: 0~40ºC
- AC adapter power: 0~35ºC
- Drop resistance: 1m
- Relative humidity: Max 95% non-condensing
- Dustproof/Waterproof:
- Joystick console: IP54
- Insertion tube: IP57 (submersible up to 1m for 30 minutes)
- Insertion Tube Compatibility: 6.0mm HD series; 3.9mm series
Articulation Probe Specifications
- Joystick Console Dimensions: 139.4 x 193 x 84.2 mm
- Net Weight: 2m probe – 700g, 3m probe – 866g
- Joystick Console Buttons: Brightness +/-, Snapshot/Record
- Lock/Unlock switch for stable control
- Probe Head Diameter: 6.0 mm
- Probe Length: 7 m
- Probe Head Material: Stainless steel
- Probe Material: Tungsten braid
- Probe Head Length: 19.3 mm
- Direction of View: Front view
- Field of View (FOV): 90°
- Depth of Field (DOF): 10mm ~ 100mm
- Illumination: Front/Side LEDs
- Operating Temperature:
- In air: -10~100ºC
- In water: 10~30ºC
- Liquid Resistance: Operable when exposed to machine oil, light oil, or 5% saline solution
Software Features
- 3X digital zoom with 10-step brightness control
- Sharpness control (Clarity On/Off)
- Annotation: 10 text annotations (24 characters)
- Timestamp/Watermark for snapshot/video recording (on/off)
- Image Management: User-defined picture/video folder organization
- On-Screen Display Functions: Light boost, mirror, compare, wireless, particle-free, dual view, light direction, negative, auto white balance
- Manual white balance adjustments (default, warm, cold, custom)
Recording Management
- Storage: SDHC, up to 32GB
- Overlay: YY/MM/DD h:m, battery capacity
- Thumbnail Image Display: 9-grid album mode
- Still Image:
- Resolution: 2560×1440 (S-HD); 1280×720 (HD)
- Format: .jpg
- Video:
- Resolution: 1920×1080
- Format: .mov / H.264
- Audio Input: Built-in microphone (on/off)
- Frame Rate: 30FPS
Accessories Included
- HDMI Cable (1.8m, HDMI 1.4a, Type D)
- USB Cable (1m, Type C to standard Type A)
- USB Charging Cable (1m, USB-DC jack for power bank)
- SD Card (16GB)
- DC Power Adapter (100V~240V, 12V 2.5A, 50-60Hz)
- Interchangeable Side-View Tip (6.0 mm)
- Shoulder and hand straps (Polyester)
- Sun visor (Steel/Plastic)
- Ground wire (3m with DC jack / PC in / clamp)
- Insulation cap (Ø20mm, 90mm rubber)
- Rigid sleeve:
- Grip Material: Rubber/Aluminum/Plastic
- Tube Material: Stainless steel
- OD: 8mm / ID: 7mm protection ring; OD 10mm extension joint ring; OD 11.2mm
- Trolley Case (HDPE EVA with storage reel)
Designed for professionals who require precision, durability, and advanced imaging, the USA Borescopes USA2000J-6-7000 delivers high-definition performance for critical industrial inspections. Whether in aviation, manufacturing, or power generation, this borescope ensures efficiency and accuracy in the most challenging environments.
| General Information | |
|---|---|
| Part # | USA2000J-6-7000 |
| Manufacturer | USA Borescopes |
| Manual 1 | View USA2000J Series User Manual |
Customers also viewed
AIRCRAFT COMPATIBILITY
| Compatible Aircraft* |
|---|
PRODUCT REVIEWS
This item does not have any reviews yet.
QUESTIONS & ANSWERS
The USA2000J-6-7000 is well-suited for aircraft engine inspections, structural cavity checks, and general aviation maintenance, where a larger probe diameter provides durability and image clarity. Its 6 mm videoscope probe works especially well in turbine engines, exhaust sections, and larger access points. This makes it a practical choice for routine and detailed inspections in demanding environments.
Joystick articulation allows precise, one-handed control of the probe tip, making it easier to navigate tight bends and complex internal geometries. This level of control helps inspectors position the camera exactly where needed without repeatedly withdrawing and reinserting the probe. As a result, inspections are faster, more accurate, and less physically demanding.
Yes. This videoscope is designed for industrial and aviation use, featuring rugged construction that withstands frequent handling and challenging conditions. The probe and system are built to withstand exposure to oils, moisture, and temperature variations commonly encountered during aircraft maintenance. That durability supports reliable performance on the flight line or in the hangar.
The USA2000J-6-7000 allows users to capture and store high-quality images and video directly to removable media. This makes it easy to document findings, track defect progression, and support maintenance records or compliance reporting. Visual documentation also improves communication between technicians, inspectors, and operators.
A 6 mm probe offers a balance between durability and visibility, making it ideal for larger inspection areas where robustness is important. The thicker probe is more resistant to wear during repeated use in engines or structural components. This helps extend probe life while maintaining consistent image quality.
Integrated LED illumination provides consistent lighting in dark inspection areas, such as engine cores or enclosed structures. Adjustable brightness allows technicians to reduce glare and enhance contrast depending on surface conditions. Proper lighting helps reveal cracks, corrosion, or foreign object damage more clearly.
The system features an intuitive interface that makes it accessible to both experienced inspectors and newer technicians. Joystick articulation, simple menu navigation, and clear on-screen controls reduce the learning curve. This ease of use helps teams perform inspections efficiently without extensive training time.
The USA2000J-6-7000 is a portable videoscope system that can be easily transported between aircraft or work areas. Its self-contained design allows inspections to be performed wherever access is needed, without relying on fixed workstations. Portability is especially valuable for line maintenance and remote inspection tasks.
The probe and system are designed to operate reliably in environments where oil, moisture, or light fluids may be present. This makes the videoscope suitable for engine compartments and other areas where cleanliness cannot always be guaranteed. Proper cleaning after use helps maintain long-term performance.
By allowing technicians to visually inspect internal components without disassembly, the USA2000J-6-7000 supports early detection of wear or damage. Identifying issues early helps reduce unplanned downtime and prevents minor findings from becoming major repairs. This makes the videoscope a valuable tool for proactive aircraft maintenance strategies.
