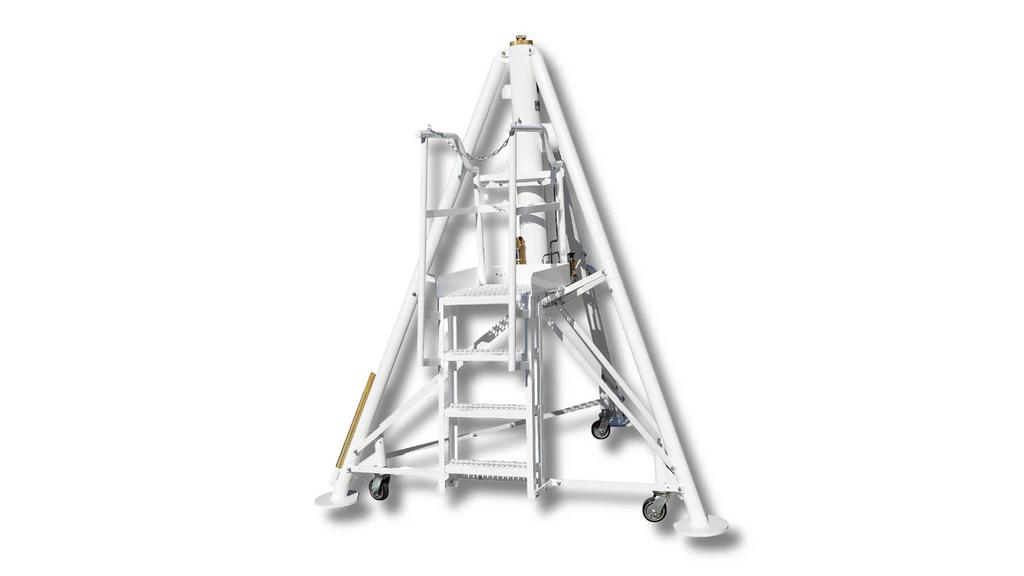

Malabar 71400A-14 – 12-Ton Tripod Jack

The Malabar 71400A-14 uses a single-stage hydro-mechanical lifting system that combines hydraulic lifting force with a mechanical locking mechanism for improved stability during aircraft maintenance. This design allows technicians to maintain positive load support at any extension height while reducing reliance on hydraulic pressure alone. Single-stage tripod jacks are also valued for their straightforward operation and dependable performance in demanding hangar and flight line environments. The hydro-mechanical configuration supports safe, controlled aircraft lifting procedures.

The adjustable hand pump offers high, medium, and low pressure operating positions to match different lifting conditions. A shorter handle setting increases oil displacement for faster lifting under lighter loads, while longer handle positions provide greater leverage during higher-pressure lifting operations. This flexibility helps technicians work more efficiently when positioning and raising the aircraft. The adjustable pump design also reduces operator fatigue during repetitive maintenance tasks.

The spring-loaded caster system improves both mobility and stability during aircraft maintenance operations. While the jack is unloaded, the heavy-duty swivel casters keep the footpads elevated for easier positioning and transport around the hangar. Once a load is applied, the casters retract automatically, allowing the footpads to rest firmly on the ground for increased stability. This design helps balance maneuverability with secure load support.

The hard chrome-plated cylinder bore improves corrosion resistance and extends the operational life of the hydraulic system. Chrome plating also reduces wear on internal seals and moving components during repeated lifting cycles. In aviation maintenance environments where moisture, hydraulic fluid, and contaminants are common, corrosion-resistant components help maintain smoother operation and reduce long-term maintenance requirements. This feature contributes to overall jack reliability and service life.

The optional 36" leg extension kit significantly increases the jack’s maximum lifting height from 114" to 150". This expanded range allows the Malabar 71400A-14 to support aircraft with higher wing or fuselage jacking points, including regional and military aircraft applications. The extension kit also enables compatibility with additional maintenance tasks such as shoring and landing gear servicing. Maintenance crews can more easily adapt the same aircraft tripod jack to multiple aircraft platforms.

The 714A series jack is designed to tolerate side loads up to 15% of the vertical load, helping accommodate minor aircraft movement or shifting during maintenance procedures. Side load resistance is important because aircraft jacking conditions are not always perfectly vertical in real-world hangar environments. A jack engineered to manage limited side loading can help improve operational stability and reduce stress on lifting components. Proper jack positioning and aircraft maintenance manual procedures should still always be followed.

The optional load gauge allows technicians to monitor lifting pressure and approximate load conditions during aircraft jacking procedures. This added visibility can help maintenance personnel verify balanced lifting conditions and identify abnormal load behavior during operations. The gauge system also supports more precise troubleshooting and inspection work when lifting large aircraft structures. For complex maintenance tasks, load monitoring adds another layer of operational confidence.

The jack is specifically engineered for rugged aviation maintenance environments and incorporates corrosion-resistant finishes, plated components, and durable structural construction. Malabar also factory proof-load tests the jack at 150% of rated capacity to verify structural integrity before shipment. Heavy-duty casters, plated hardware, and Skydrol-resistant paint help the jack withstand harsh hangar and ramp conditions. These design features support long-term reliability in commercial and military aviation operations.

The optional tow handle allows maintenance crews to move the aircraft tripod jack more efficiently around the hangar or flight line using a tow vehicle. Since the jack weighs approximately 725 lbs, the tow handle can help reduce manual handling effort and improve positioning speed between maintenance locations. The manufacturer specifies a maximum towing speed of 5 mph for safe transport. Improved mobility is especially beneficial in larger MRO facilities and high-traffic maintenance operations.

PJi provides dedicated repair kits, replacement parts, and service documentation to support long-term maintenance of the Malabar 71400A-14 tripod jack. The available 714APK repair kit includes commonly replaced seals and internal components needed during overhaul procedures. Detailed parts breakdowns and troubleshooting information also help technicians identify and service wear items more efficiently. This level of OEM support can help reduce downtime and extend the operational lifespan of the aircraft jack.
